tau K130MA - Page 5

4
LED
ROSSO VERDE
+
-
-
BATTERY
CHARGER
KB4
BATTERY
12 V 7,2 Ah
+ +
-
FR
V-RAL
TCA
CH2
PROG
CH1
F2
16A
F1
3.15A
DL6
DL5
DL4
DL3
DL2
DL1
DL8
DL7
1 2 3 4 5 6 7 8 9 10 11 12
K130MA
TRASF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
J6
ENC
J5
J4
E1
LED ENCODER
LFCA LFCC
J2
24
25 23
27 26
J3 (SM)
(FC)
(AUX)

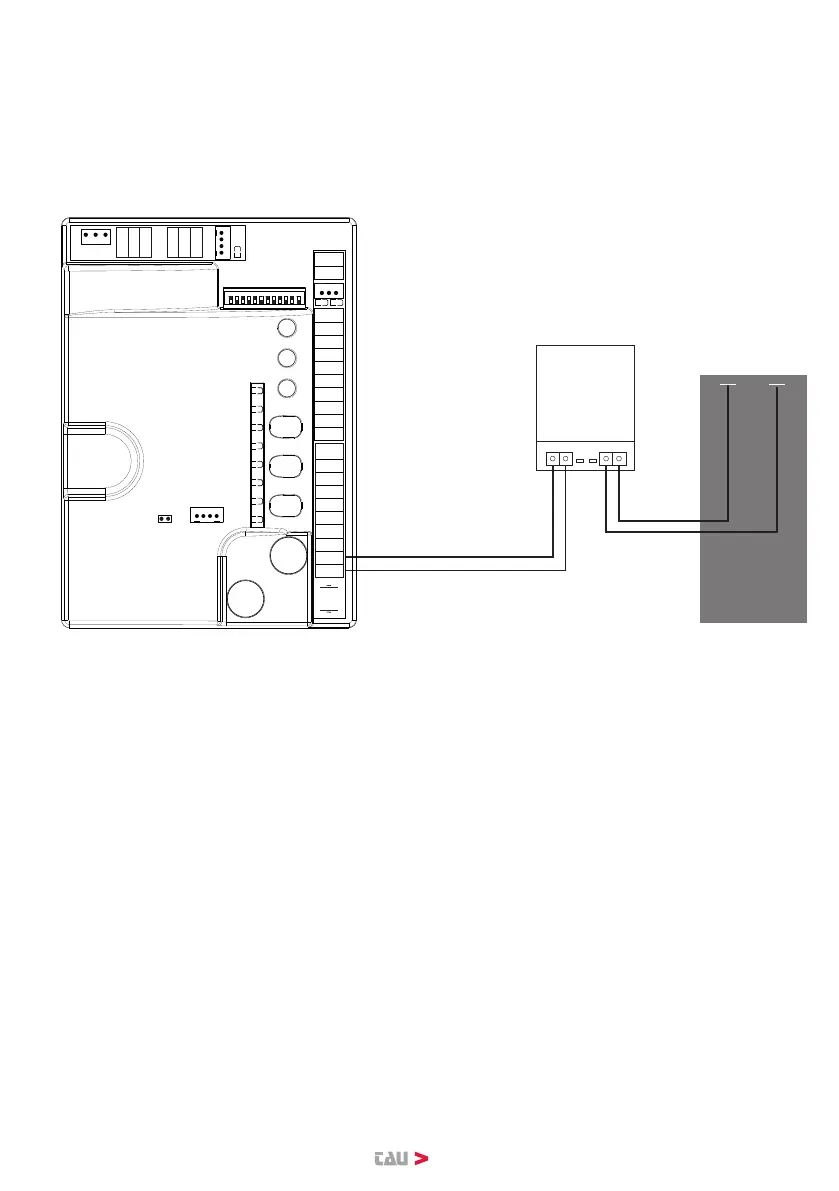

CONNECTION OF
BATTERY CHARGER +
BATTERY (OPTIONAL)
To ensure the gate operation during a power failure, the KB4 kit (battery charger + battery 12V 7.2Ah)
can be used to connect to the control unit as shown in the diagram above.
NOTICE: the battery cannot be connected directly to terminals 1-2 of the control unit.
