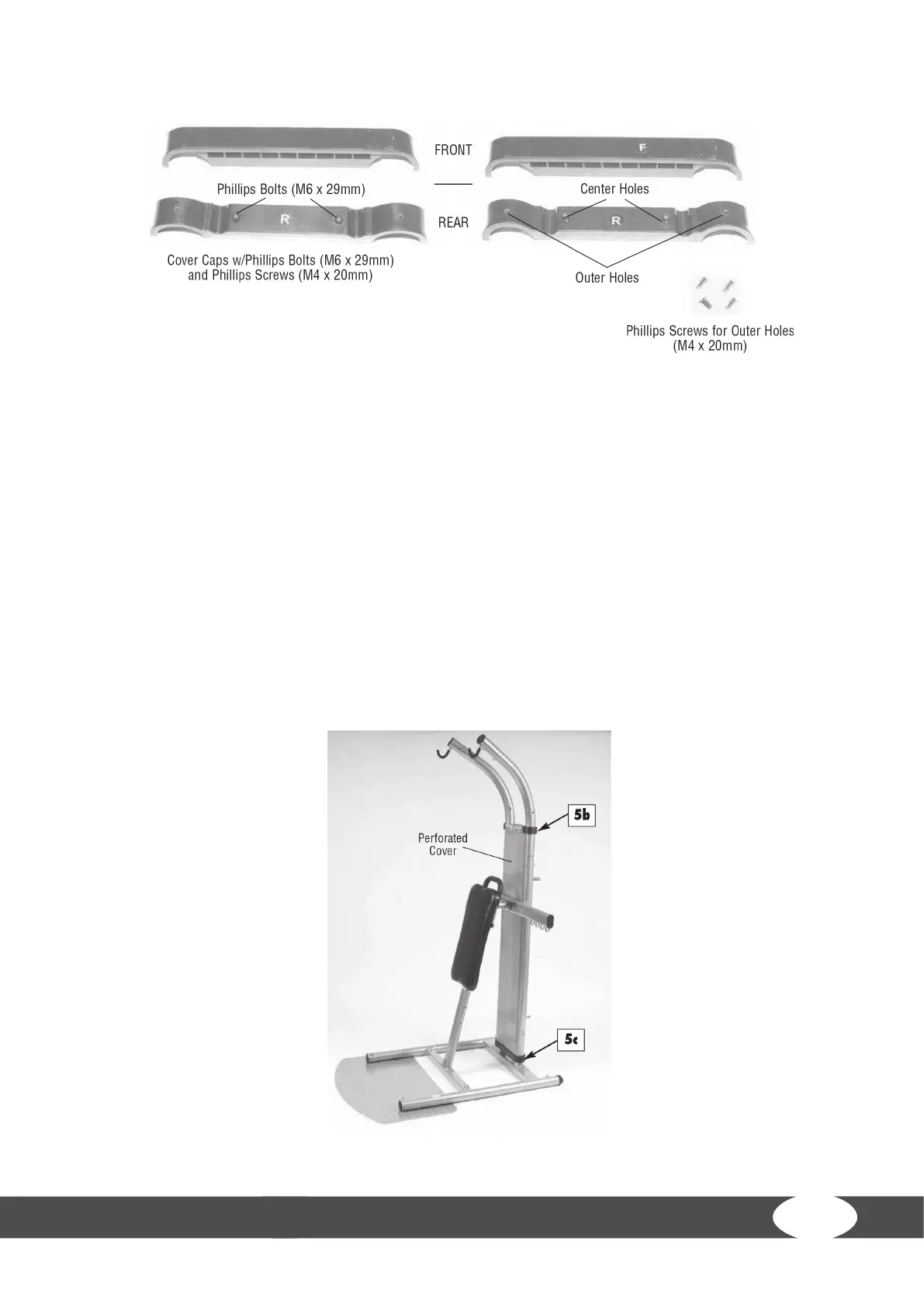

Required parts for step 5:
Step 5: Assembly covers
1. Remove the two (M6 x 29mm) hex head screws from the upper cover plates of the perforated
metal plate with the Phillips wrench (included in delivery) and separate the front and back sides.
L NOTICE
The cover plate with the UltraForce logo belongs on the top on the front side.
2. Mount the front side of the upper cover plate by moving it onto the frame on the edge of the
perforated metal plate. The cover plate may have to be pressed down slightly. Then mount
the backside of the upper cover plate. Mount the two parts with the previously loosened hex
head screws. Mount
the backside of
the upper cover
on the frame with
two hex head
screws (M4 x
20mm) through
the external drill
holes. Tighten the
screws with the
Phillips wrench.
3. Repeat steps 1
and 2 for the lower
cover plates.
