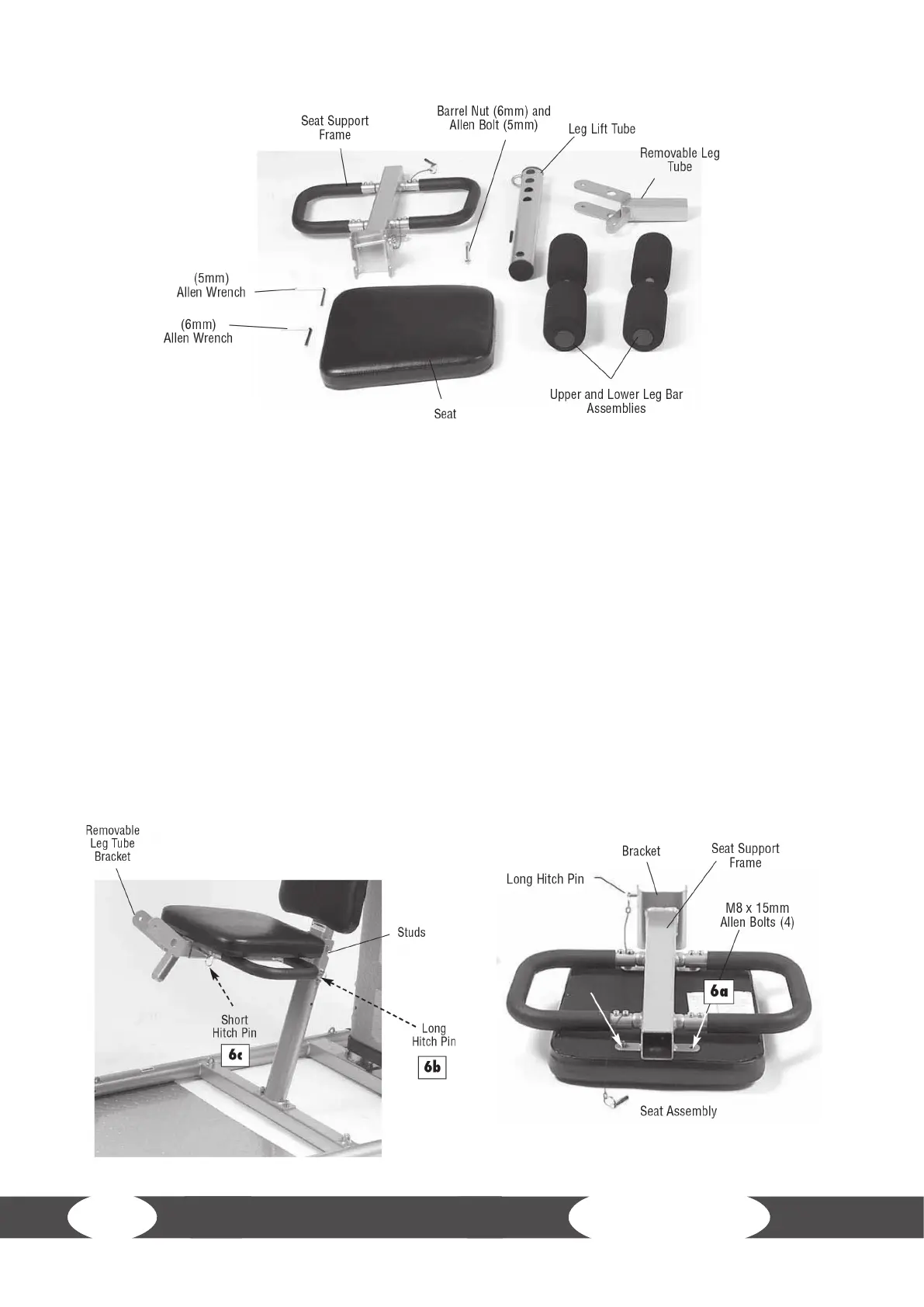

Required parts for steps 6 and 7:
Step 6: Assembly of seat
1. Loosen the screws from the underside of the seat. Place the seat frame on the backside of the
seat and make sure that the long socket pin and the bracket are in the same direction as the
small end of the seat. Mount the parts with the four previously loosened Allen screws and the
5mm Allen wrench.
2. Remove the long socket pin from the seat frame. Hang the seat on the upper dowel pin from
the backrest.
࣑ ATTENTION
+ Make sure that the bracket on the seat frame is securely placed on the dowel pin.
+ Secure the seat by sliding the long socket pin through the holes under the dowel pin.
3. Remove the short socket pin from the seat frame. Slide the removable leg extension unit in the
seat frame as in the gure to the left. Secure the parts by sliding the short socket pin through
the seat frame and the leg extension unit.
