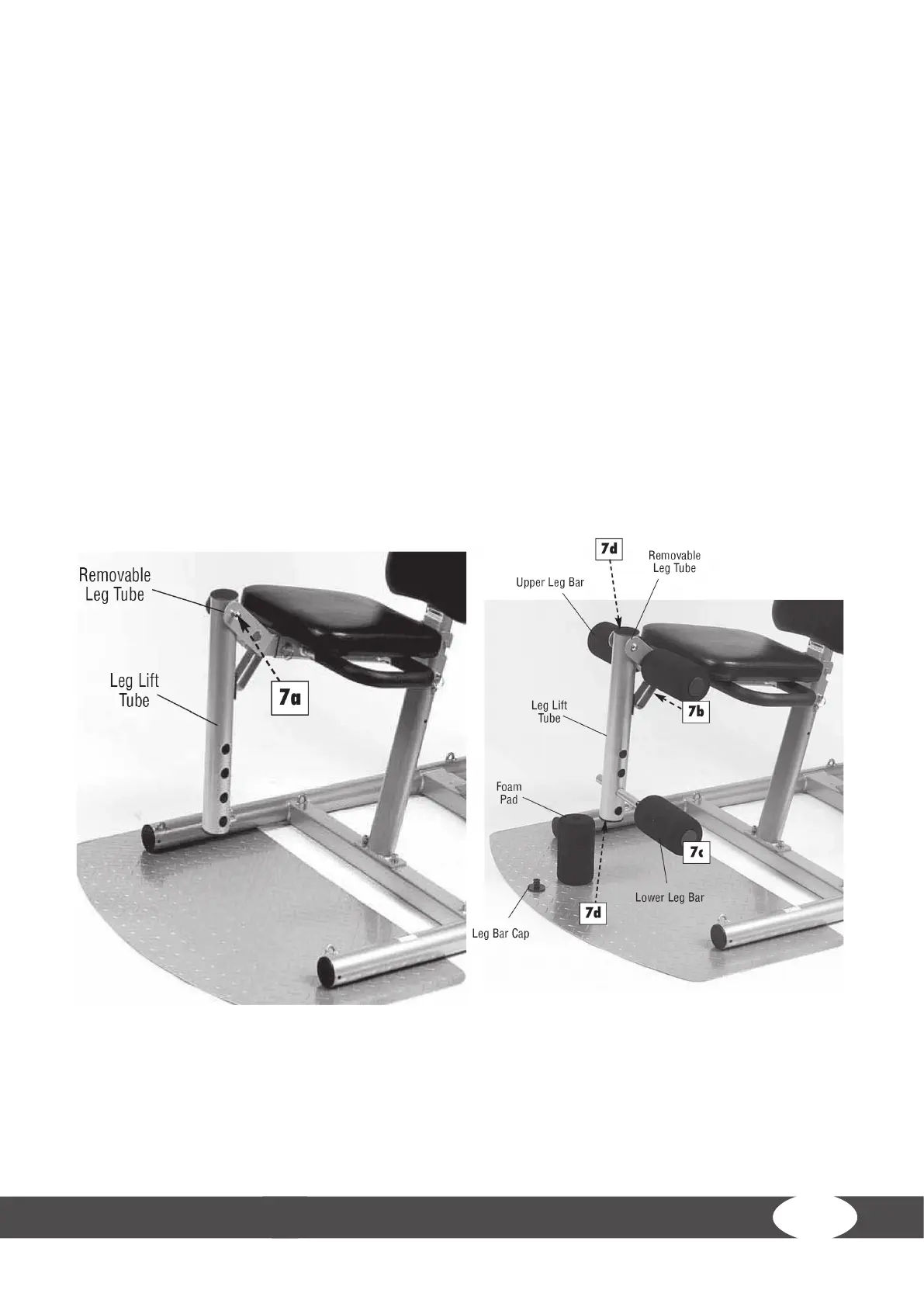

Step 7: Assembly of leg extension
1. Place the upper end of the leg extension tube on the bracket from the removable leg extension
unit.
L NOTICE
The warning note points towards the seat. Slide the barrel nut through the removable leg
extension unit and the leg extension tube. Mount the parts with the Allen screw and
the Allen wrench (5&6mm).
2. Remove the cover cap and a foam cushion and slide the upper leg extension bar through
the opening in the middle of the bracket of the removable leg extension unit. Slide the foam
cushion and the cover cap back on to the leg extension bar.
࣑ ATTENTION
+ Make sure that the cover cap is correctly placed on the bar.
L NOTICE
The upper leg extension bar is longer than the lower one.
3. Remove the cover cap and a foam cushion and slide the lower leg extension bar through the
openings on the lower end of the leg extension tube. Slide the foam cushion and the cover cap
back on to the leg extension bar.
