32
Multi Smith Pro

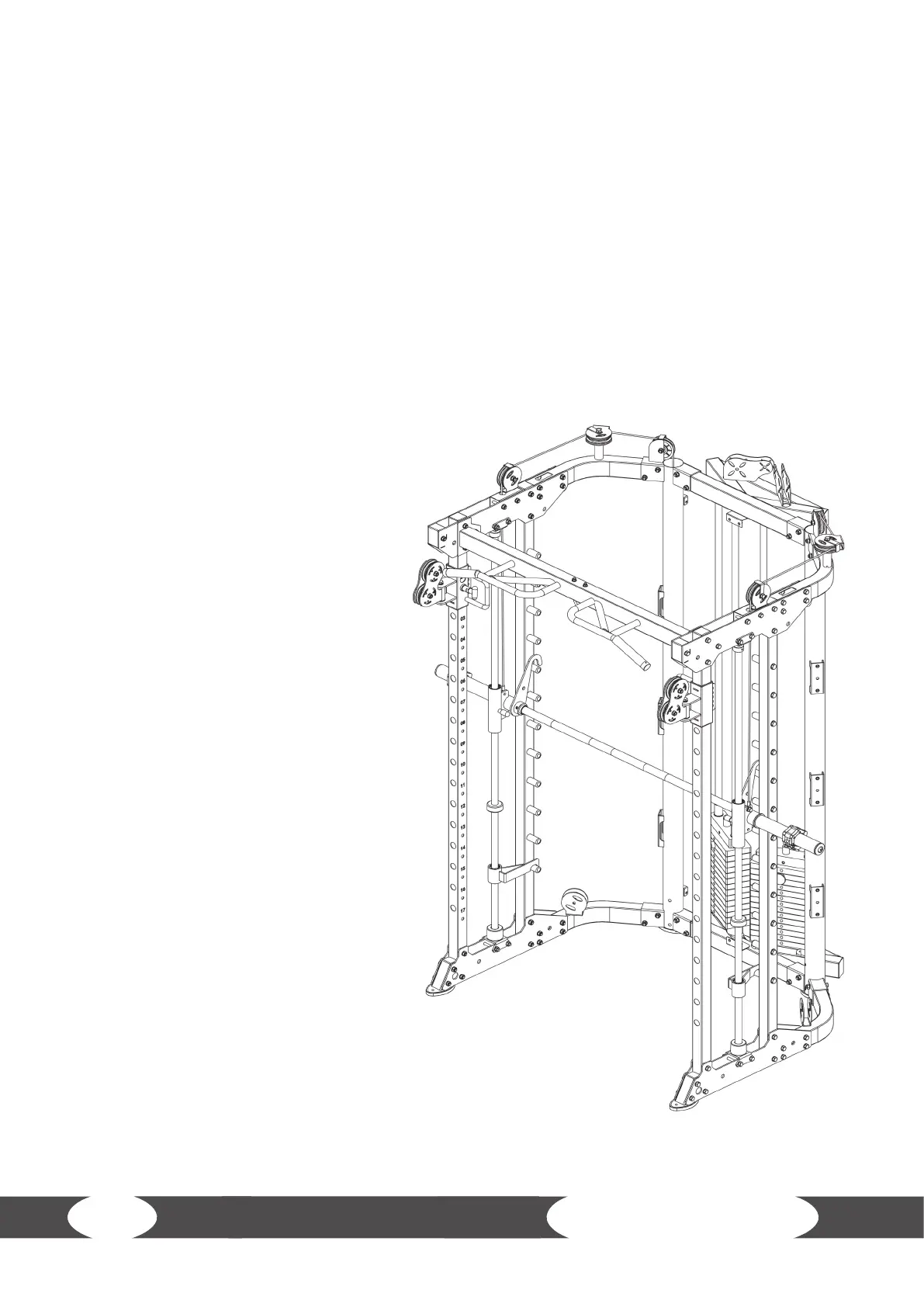

Step 5:
1. Connect the cable (49) to the weight (55) and slide it into the upright frame (2).
2. Guide the cable (49) along the illustrated points and mount the pulleys (50) to the respective
pulley brackets.
3. Mount the rst pulley (5) with the pulley plate (51) to the brackt with a hexagon bolt (53), two
washers (11) and a lock nut (10).
4. Mount the second pulley (50) with the pulley plate (51) to the bracket wit a hexagon bolt (52),
two washers (11) and a lock nut (10).
5. Mount the third pulley (50) with the pulley plate (51) to the bracket wit a hexagon bolt (53), two
washers (11) and a lock nut (10).
6. Fix the cable (49) to the sliding sleeve (29) with a hexagon bolt (54), a washer (11) and a lock
nut (10).
7. Repeat step 1 to step 6 on the other side of the multi
gym.
8. Tighten the bolts and nuts.
