2.4.4 Assembly - Jammer Arm
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
L NOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

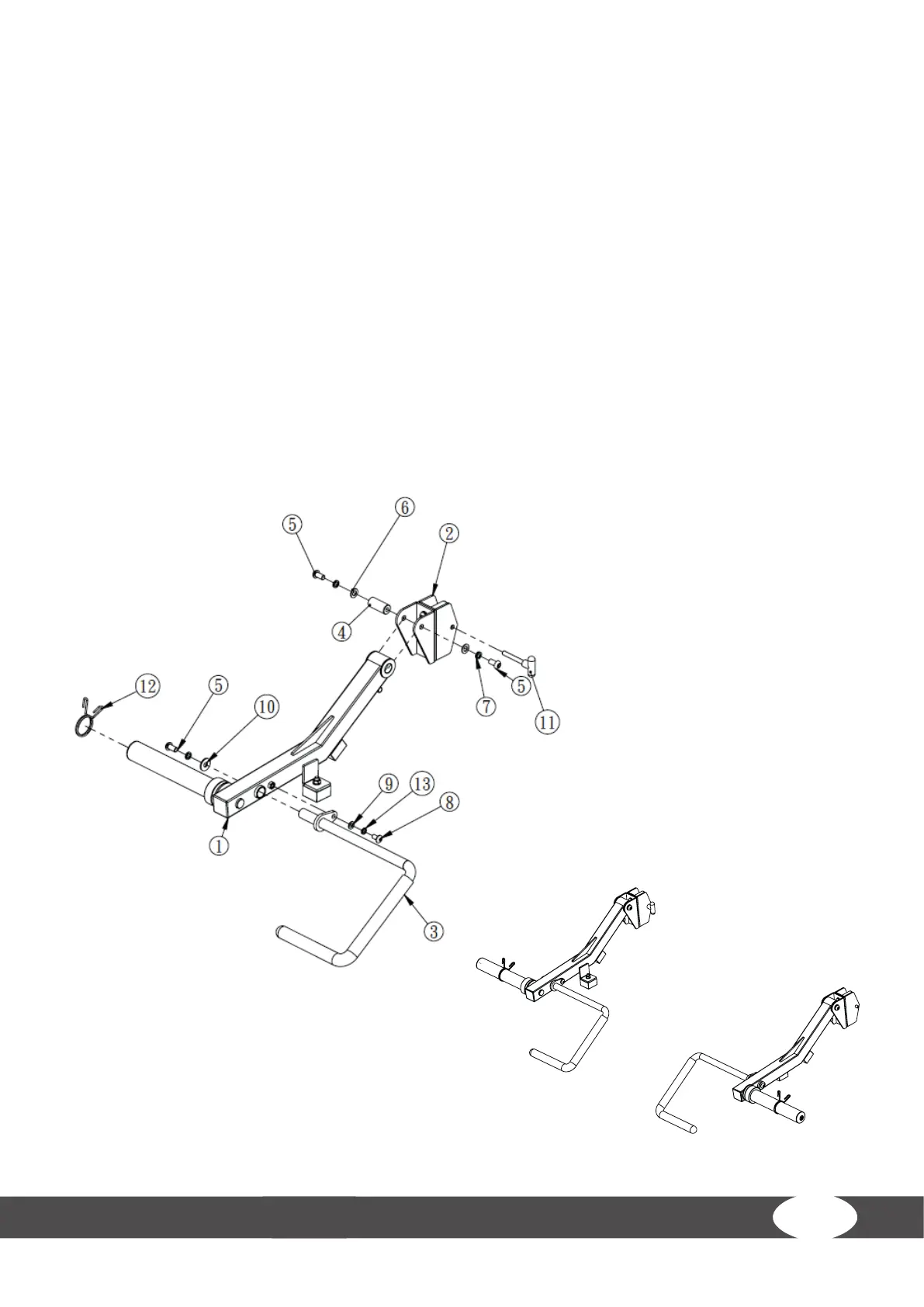

Step 1:
1. Mount the handle (3) to the push arm (1) using a screw (5), a spring gasket (7), a washer (10) and
a screw (8), a spring gasket (13) and a washer (9).
2. Mount the push arm x frame (2) together with a connection shaft (4) to the push arm (1) using
two screws (5), two spring gaskets (7) and two wahers (6).
3. Tighten the screws.
4. Repeat the steps for the other arm.
