38
Multi Smith Pro

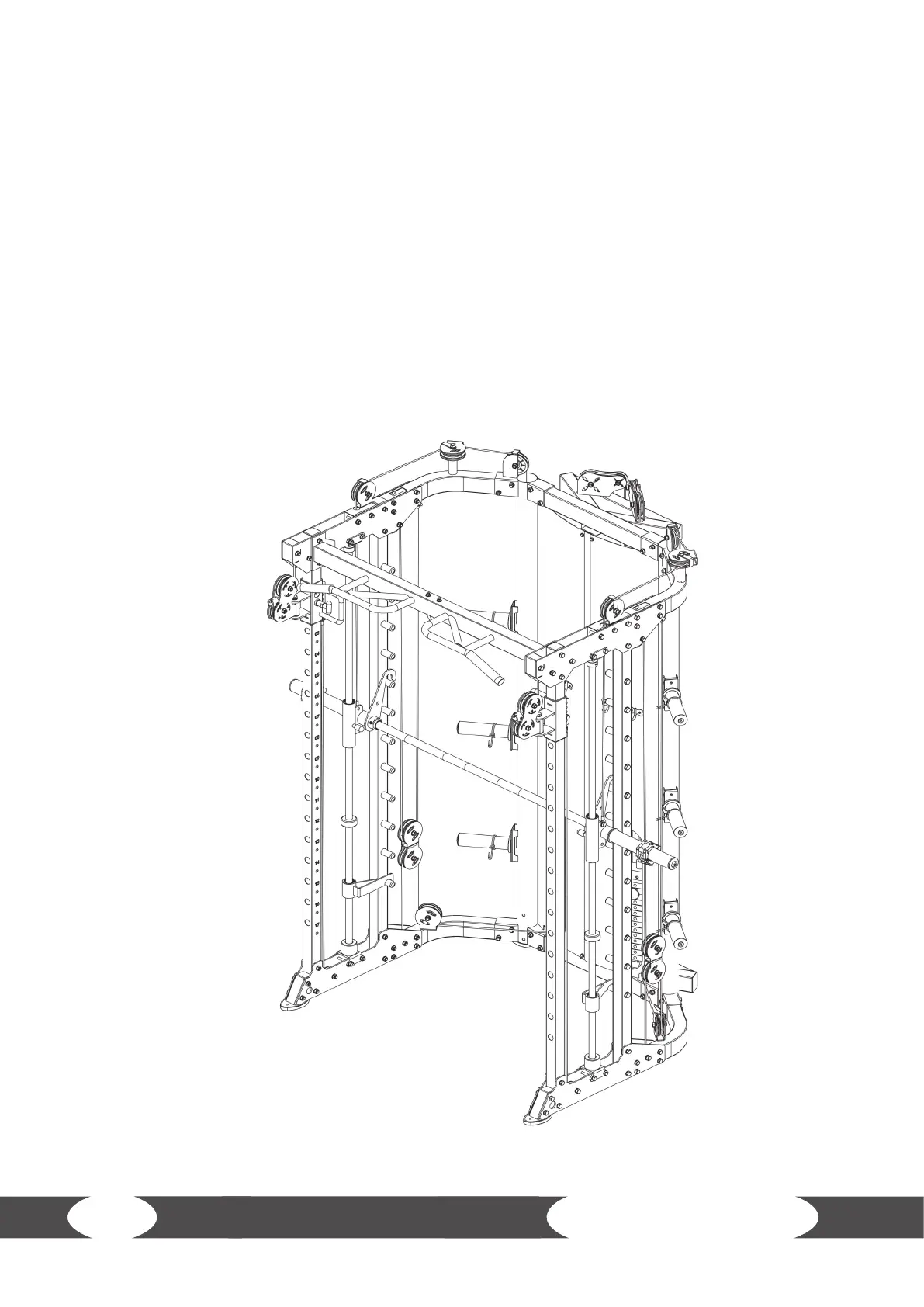

Step 8:
1. Mount the left and right shield (63 & 64) together with the connection strap (62) to the
connection tubes (1 & 6) using a total of four hexgon bolts (65) and four washers (66).
2. Mount the left and right shield (63 & 64) to the left and right upright frame (2 & 3) using a total
of six hexagon bolts (65) and six washers (66).
3. Mount two hooks (67) each to the left and right shield (63 & 64) using a total of eight bolts (68)
and eight lock nuts (69).
4. Mount three plate holders (61) each to the left and the right upright frame (2 & 3) using a total
of 12 hexagon bolts (70) and 12 washers (71).
5. Tighten the bolts and nuts.
