1 Overview
TAWI
VacuEasylift is a line of lifters that lifts and lower loads using vacuum.
TAWI
VacuEasylift provide
lifting and transportation aid for loads up to 270 kg and can be equipped with dierent tools and
accessories.
The lifters are currently available in nine dierent models, mainly diering in lifting capacity and tube
area: VM0/40/50/60/80/100/120/180/270 This chapter presents an overview illustration of the lifters
and a table containing characteristics of the dierent models.
• The VM60 model is used for all illustrations in this manual. Your model may dier in appearance.
• Mounting the pump on a pump shelf or with a silencing hood is optional.
a
c
d
e
g
h
j
k
i
h
l
m
b
f
n

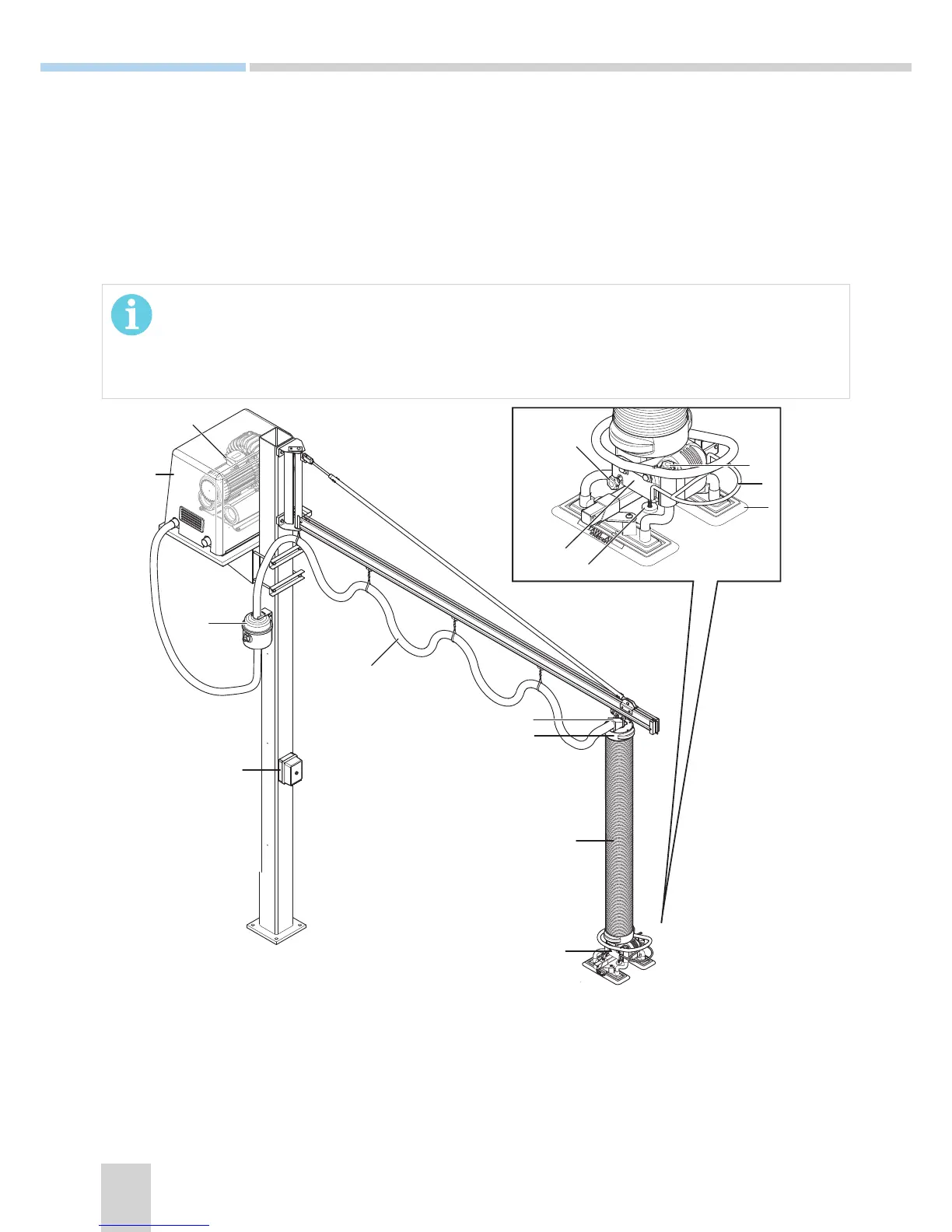

a. Vacuum pump
b. Silencing hood (optional)
c. Load balance adjustment screw (no load)
d. Load balance adjustment screw (with load)
e. Operating handle
f. Suction foot
g. Touch bolt
h. Suction head
i. Lift tube
j. Top swivel
k. Safety valve
l. Air hose
m. Filter unit
n. Main switch
