• The touch bolt can be removed if it is in the way for normal lifting operations. Remove the bolt
and plug the bolt hole with a standard M8 bolt and nut.
• The touch bolt must be adjusted to the exact right position depending on the suction foot. Please
contact your salesman to be sure of the position.
≈20mm
• Make sure to use the correct torque for the bolts when installing the suction foot. Do not over- or
undertighten. Air leakage may occur otherwise, reducing lifting capacity.
• If the quick release attachment is used, the touch bolt must be removed.
≈10mm
b
The touch bolt provides help for the operator by
opening the suction head valve fully, enabling a
good grip of the load.

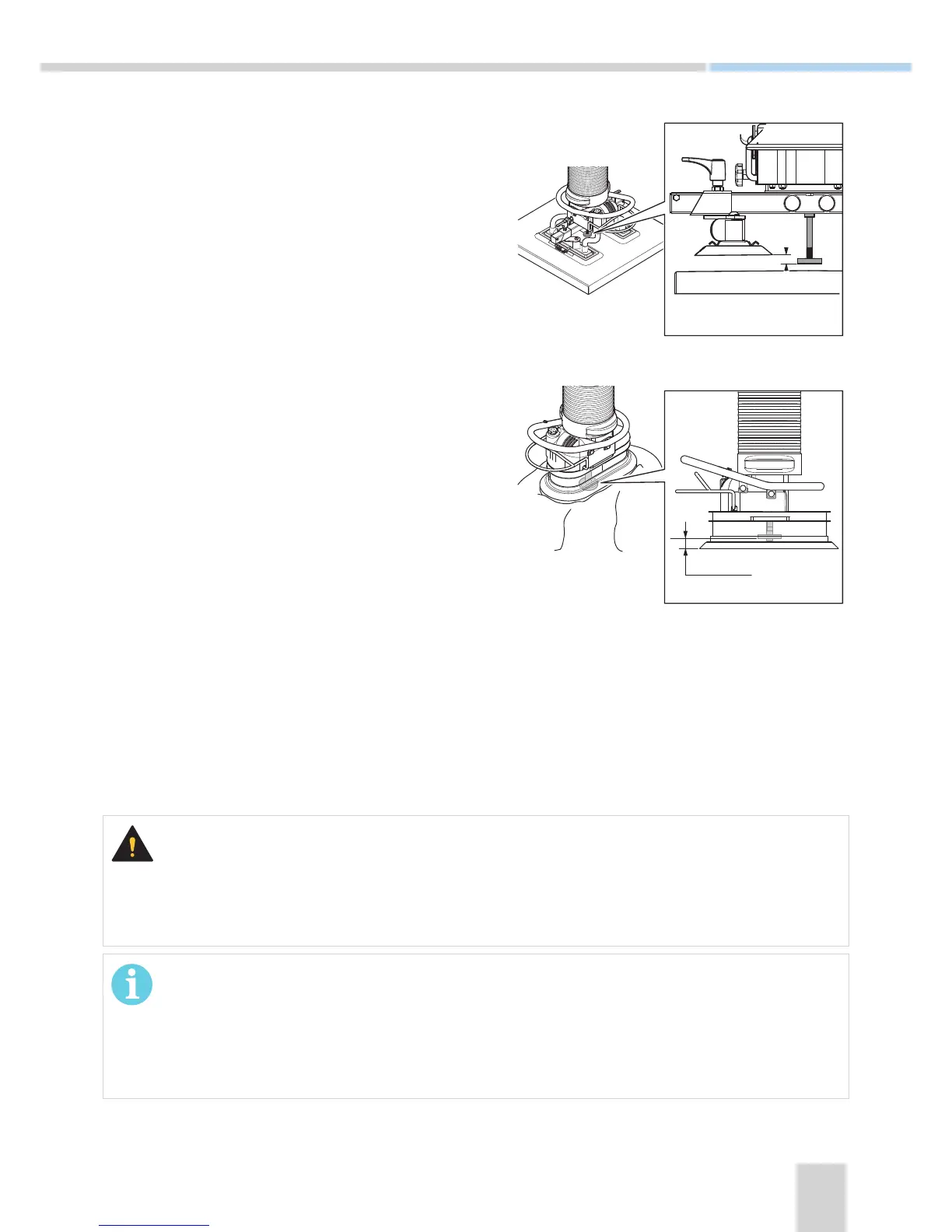

2. Fit the touch bolt:
a. Fit the touch bolt with the head of the bolt
about 10-20 mm below the edge of the suc-
tion foot (a).
b. If the suction foot for sacks is used, adjust
the bolt head so that it is installed approxi-
mately 10 mm above the edge of the suction
foot (b).
3. If the quick change attachment is used, install
a suitable suction foot, see Change suction foot,
quick release on page 17.
4. Verify that the suction foot is securely fas-
tened to the suction head.
