Model VM30-50 VM60-80 VM100-270
No. of clamps Two clamps (top swivel)
One clamp (suction head)
One power clamp Two power clamps
Torque >6 Nm >18 Nm > 20 Nm
Mount suction head

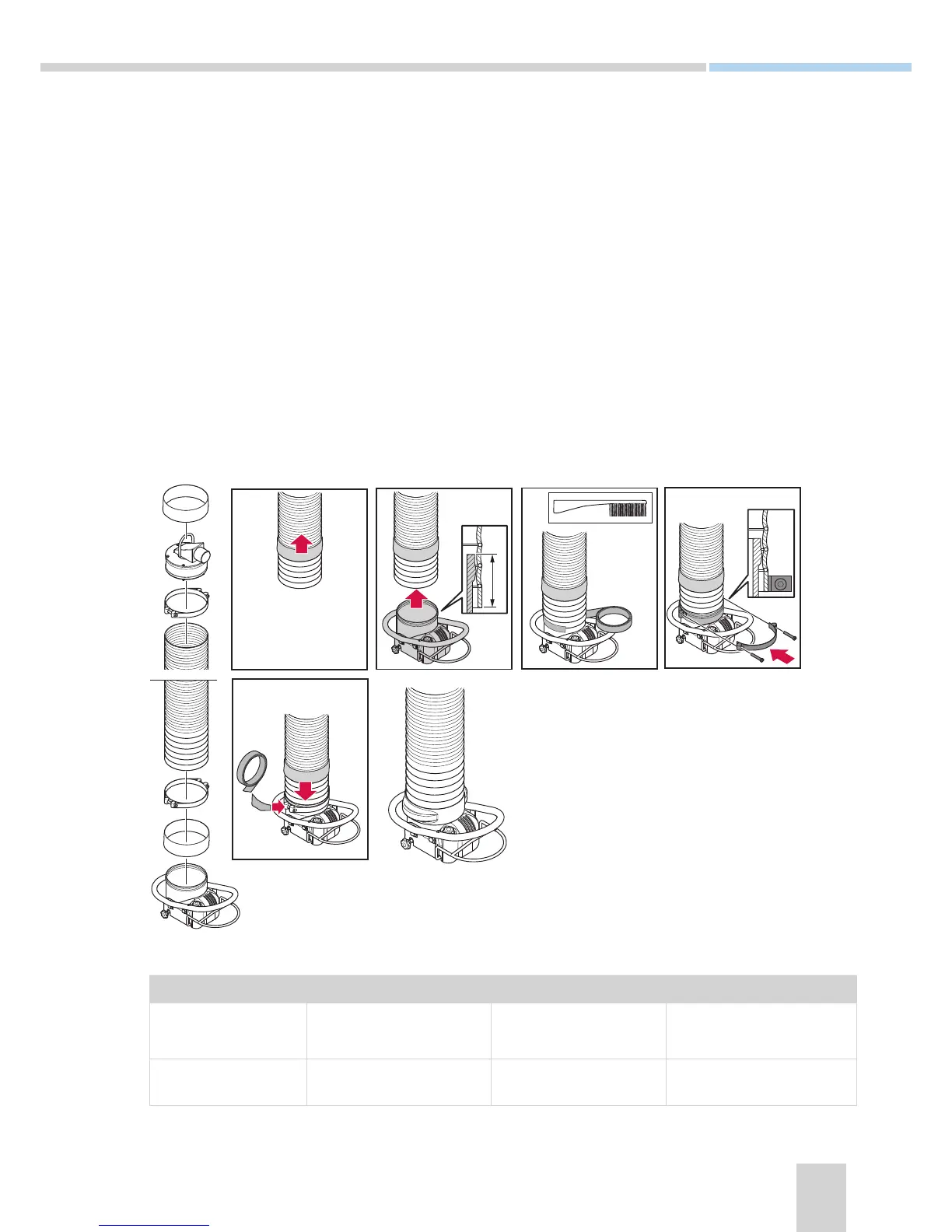

1. On the suction head side: repeat steps 1-5 from Mount top swivel on page 8. Put the rubber
band around the lift tube, approximately 10 cm from the end (a).
2. Insert the suction head into the lift tube (b).
3. Allow the lift tube neoprene material to cover at least two cm measured from the top of the suction
head.
4. Make sure the area is clean and dust free before taping. Attach the lift tube to the suction head with
at least three layers of duct tape under each clamp (c).
5. Attach the clamp right next to, but NOT on top of the rst spiral winding. Check that the clamp
position is straight before tightening (two power clamps for models VM100-270) (d).
6. Tighten the lift tube clamp. Refer to the table below for correct clamp torques for your model.
7. Cover the clamp attachment with two pieces of duct tape (15 cm) (e).
8. Pull down the rubber band to cover the clamps and duct tape.
9. The lifter is now ready for a test lift.
