Taylor 349 - Model 349

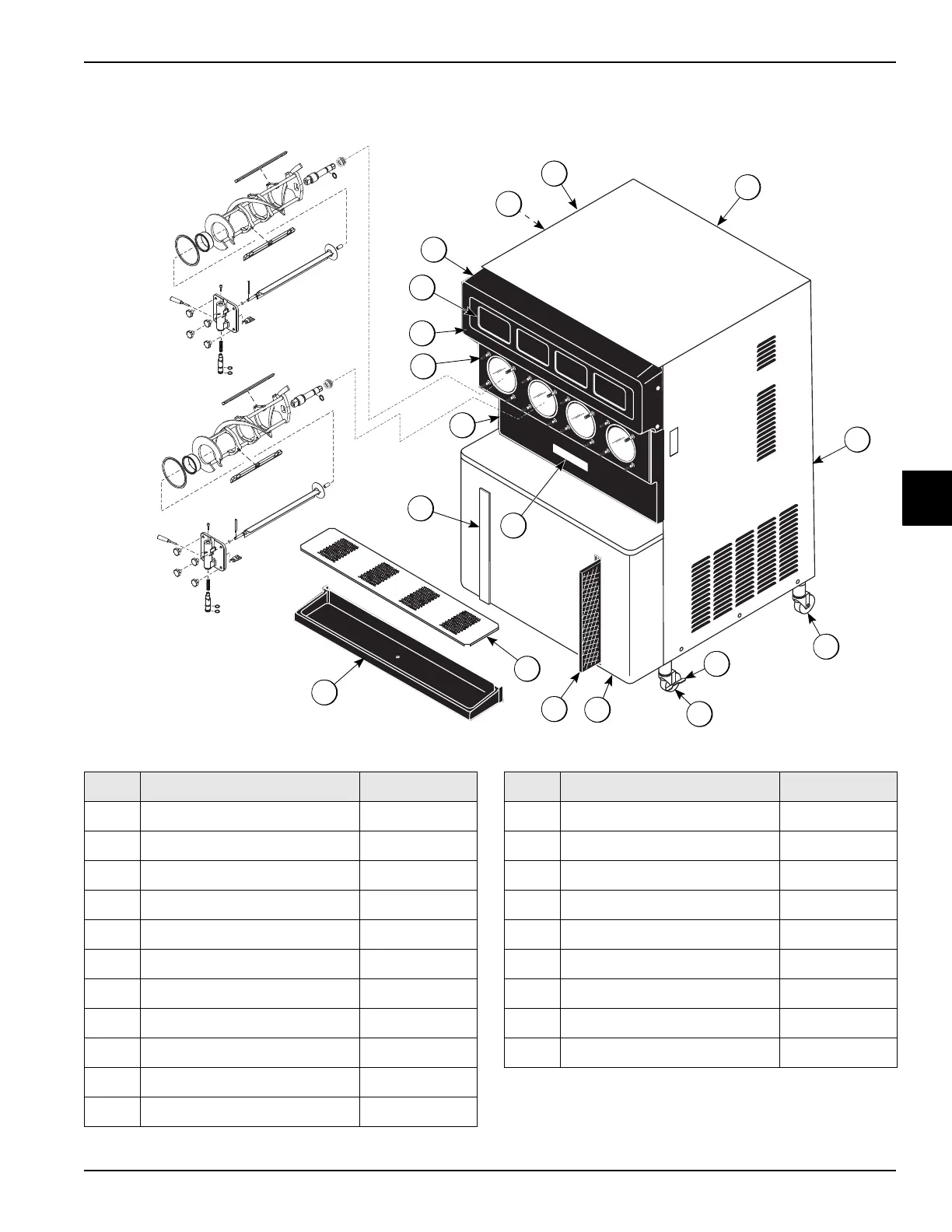

OPERATOR PARTS IDENTIFICATION
4-3
Models 345, 346, 349, 355 NPR
Operator Parts Identification
4
Model 349
Figure 4-3
*Not Shown
5
4
2
1
14
12
11
17
9
18
10
6
7
8
13
15
16
3
Item Description Part No.
1 Panel A.-Side *w/Handle-LT X65550-SP1
2 Hood 042166
3 Panel-Rear *Drain Hole 042198-SP
4 Panel A.-Side Right X65556-SP1
5 Caster-3” SWV 3/4-10 Stem 021279
6 Caster-3” SWV w/Brake 030307
7 Lock-Caster BRKT 032571
8 Panel-Service 058621
9 Tray-Drip Black w/Drain 038275-SP
10 Shield-Splash 038276
11 Panel-Front-Lower *BLK 042082-BLA
Item Description Part No.
12 Stud-Nose Cone 020445
13 Card-Flavor Packet 035324
14 Panel-Front-Upper *BLK 042081-BLA
15 Plate-DEC *Black 035410-BLA
16 Decal-DEC-Taylor Domed 053761
17 Cover-Hole-Filter 053801
18 Filter-Air (A/C) 052779-4
*19 Pan A.-Drip *w/Hose-Left X42201
*20 Pan A.-Drip *w/Hose-Right X42203
