To the Installer

Models 702/741/772

050323

Check Out

Once the unit is installed, it is advisable to check the

following controls and mechanical operations of the

freezer and to make any necessary adjustments. If

applicable, repeat these checks for the second

freezing cylinder on double head units.

Controls

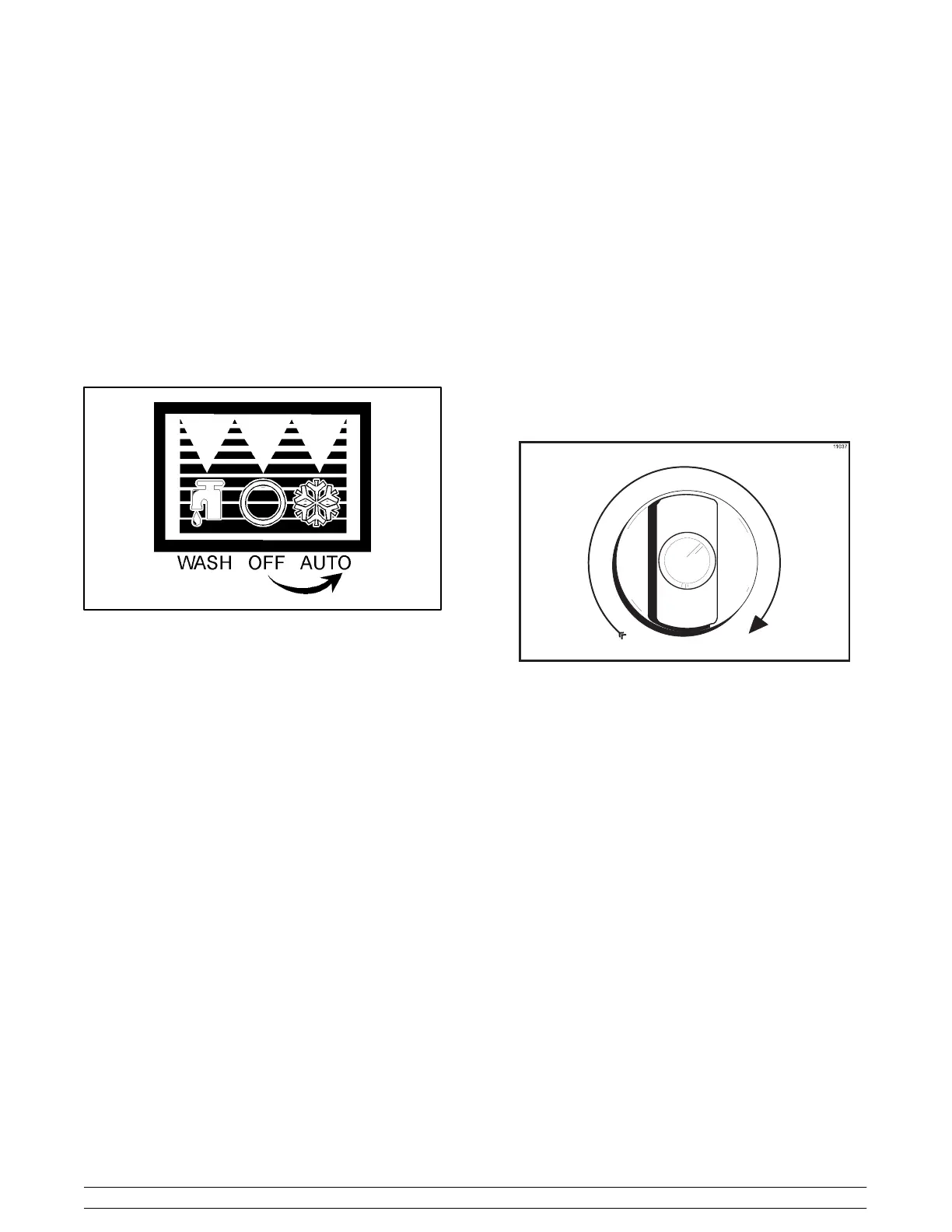

Place the control switch in the “AUTO” position. The

main refrigeration system will operate (compressor ,

beater motor , and the condenser fan). The dial light

and the mix low indicator will be lit.

Figure 1

If the freezer is water cooled, the automatic water

valve will begin to open and cold water will flow into the

condenser. This will remove heat from the refrigerant.

As the water flows into the open trap drain, it should be

warm to the touch. Place the control switch in the

“OFF” position.

Beater Rotation

Beater rotation must be clockwise as viewed looking

into the freezing cylinder .

To correct rotation on a three-phase unit, interchange

any two incoming power supply lines at the freezer

main terminal block only.

To correct rotation on a single-phase unit, exchange

leads inside the beater motor. (Follow the diagram

printedonthemotor.)

Electrical connections are made directly to the

terminal block provided in the main control box located

behind the upper left side panel for the Model 702, and

behind the service panel for the Model 741 and 772.

Figure 2

Note: Electrical connections should be performed by

a trained service technican.
