McDonald's Intelligap Grills
Control A.-Lower - X72707-23 (60 Hz) -75 (50 Hz) (C842/C844)

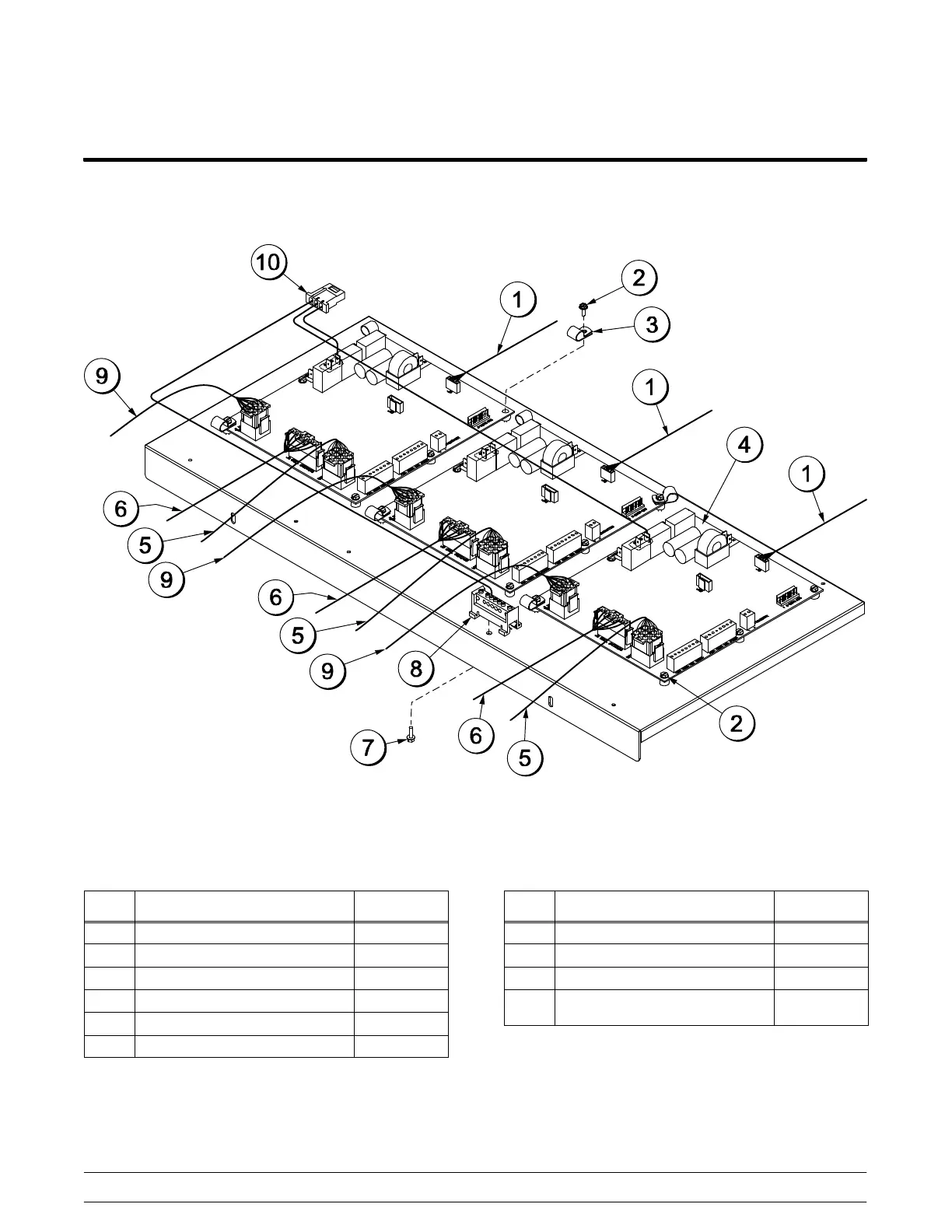

Figure 69
ITEM DESCRIPTION PART NO.
1 HARNESS-PCB/LOGIC 072527
2 SCREW-6-32X5/8 UNSLTD 041363
3 CLAMP-CABLE 3/8" PLASTIC 000290
4 CONTROL-MOTOR X72436-SER
5 HARNESS A.-PCB 073473
6 HARNESS-PCB/GR SWITCH 072529
ITEM DESCRIPTION PART NO.
7 SCREW-8X1/2 SLTD HEX 075763
8 BLOCK-TERMINAL 7P GREEN 024156
9 HARNESS A.-MOTOR FEM 073643
10 HARNESS A.-CNTRL BOX
(60 HZ)
X74157
