TBB Energier Apollo CH2.0M User Manual

Energier Apollo User Manual
43

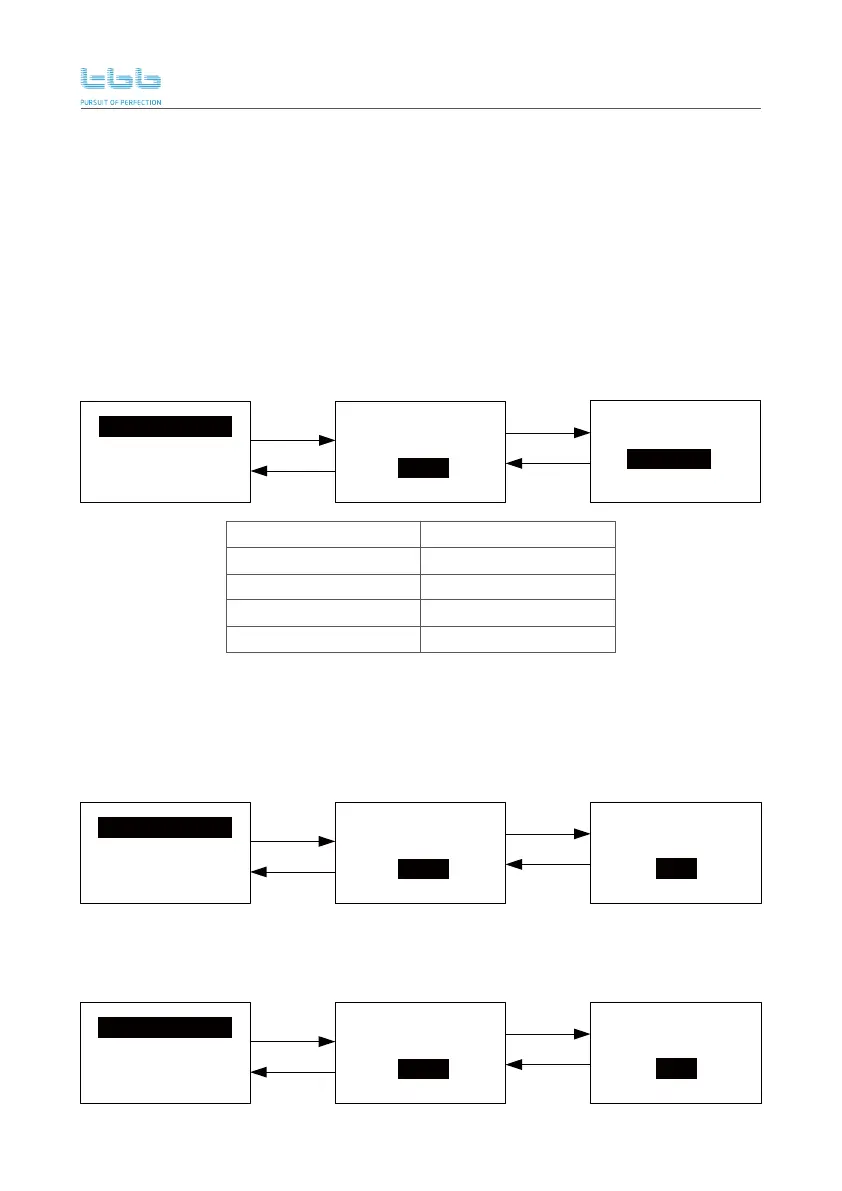

6.4 How to set AC input parameters
When Energier Apollo operates with weak AC input source, such as small generator or weak-grid
or limited current AC source etc, the AC input parameters should be set.
6.4.1 AC source setting
This setting item should be corresponding with the AC source connected to the Energier Apollo.
In weak-grid mode, AC input voltage range is increased. Both AC input voltage and frequency range
is increased in generator mode. Energier Apollo adapts to both weak-grid and generator.
AC source
Standard
Battery type
AGM
General
Advanced
Enter
ESC
Page
down x 3
Page up
6.4.2 AC input current limit setting
When Energier Apollo is connected to current limited source, for example15A MCB , the AC input
current shall be set to match the circuit breaker rated current to avoid tripped action. Normally AC
input current limit value can be less or equal to rated current of circuit breaker.
6.4.3 Disable AC charger
AC charger function can be enabled or disabled by LCD panel as following:
AC source type AC input range
Standard
Weak-grid
Weak generator
Generator
168~264VAC @230VAC
184~264VAC @230VAC
172~276VAC @230VAC
168~276VAC @230VAC
AC input current
limit
32A
Battery type
AGM
General
Advanced
Enter
ESC
Page
down x 4
Page up
AC input current
limit
32A
Battery type
AGM
General
Advanced
Enter
ESC
Page
down x 4
Page up

TBB Energier Apollo CH2.0M Specifications

General

Model	Apollo CH2.0M
Rated Power	2000W
Output Power	1600W
DC Input Voltage	24V
AC Output Voltage	230V
AC Output Frequency	50Hz
Frequency	50Hz
Surge Rating	4000W
Battery Charger	Yes
Operating Temperature	-10°C to 50°C
Topology	High Frequency
Cooling	Fan
Weight	10kg
Transfer Time	10ms
Efficiency	90%
Protection Features	Overload, Short Circuit, Over Temperature, Battery Low
