TC Electronic M-ONE XL User Manual

9

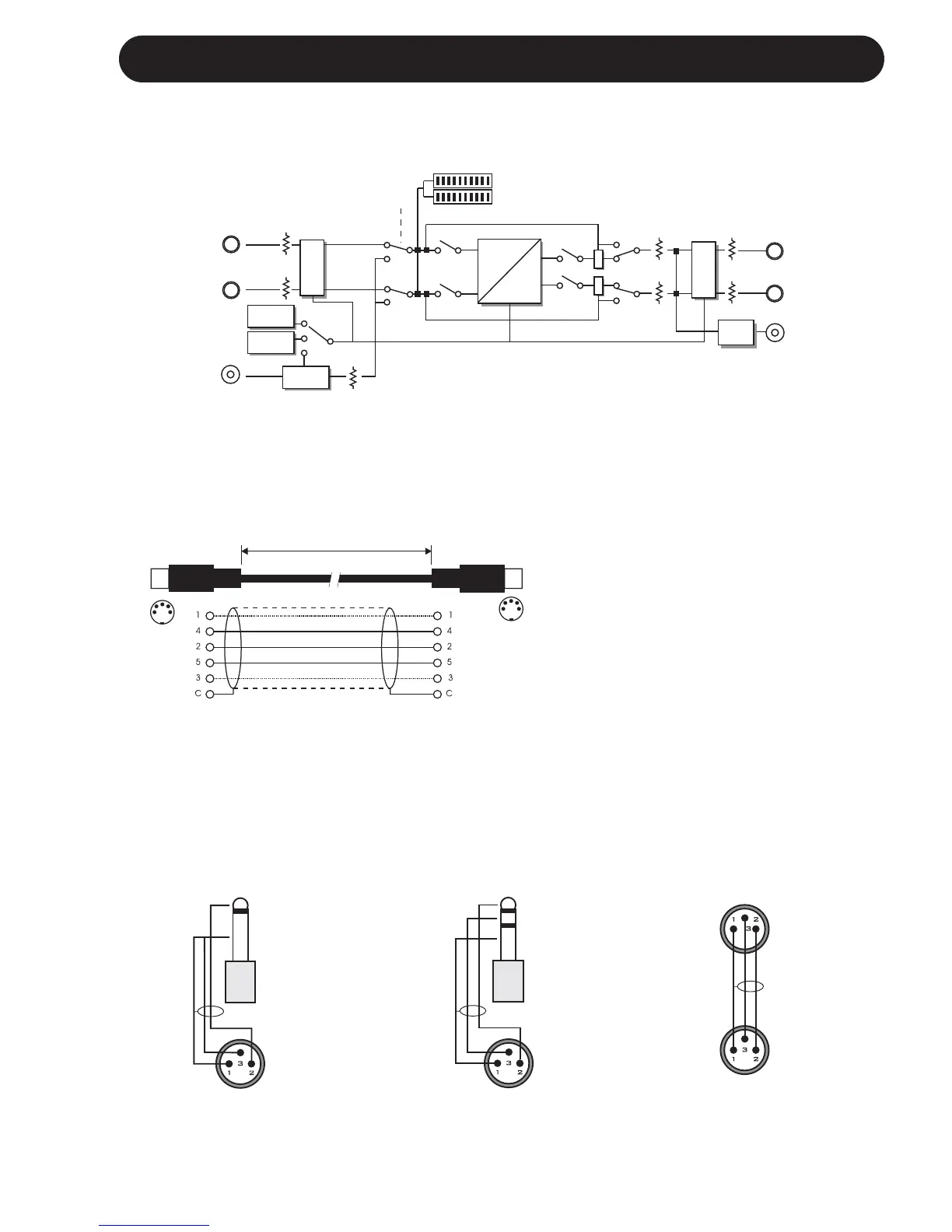

SIGNAL FLOW & SOLDERING INSTRUCTIONS
MIDI Cable
DIN CONNECTOR
5POLE - MALE
45 degrees
DIN CONNECTOR
5POLE - MALE
45 degrees
max. 10m
SHIELDED CABLE (3 or 5 wires + screen)
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
Jack (balanced) - XLR
TIP
RING
GND
Pin 1 - Pin 1 (Ground)
Pin 2 - Pin 2 (Hot)
Pin 3 - Pin 3 (Cold)
XLR - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Sleeve - Pin 3 (Cold)
Jack (unbalanced) - XLR
TIP
GND
ANALOG
INPUTS
[balanced]
ANALOG IN
LEVEL
ANALOG
OUT RANGE
DIGITAL IN
OUT LEVEL
ANALOG
OUTPUTS
[balanced]
A/D
INPUT PPM
Left
Left
Left
Right
Bypass
MIX
Bypass
Bypass
Fx Out
Bypass
Fx In
S-Rate
Right
Right
Input
Selector
Digital Output
[S/PDIF]
Digital Input
[S/PDIF]
M-ONE
Engine 1
Engine 2
44.1kHz
48kHz
Digi
D/A
Dither
