RETURNS
STANDARD OR EXTENDED ROUTING 12

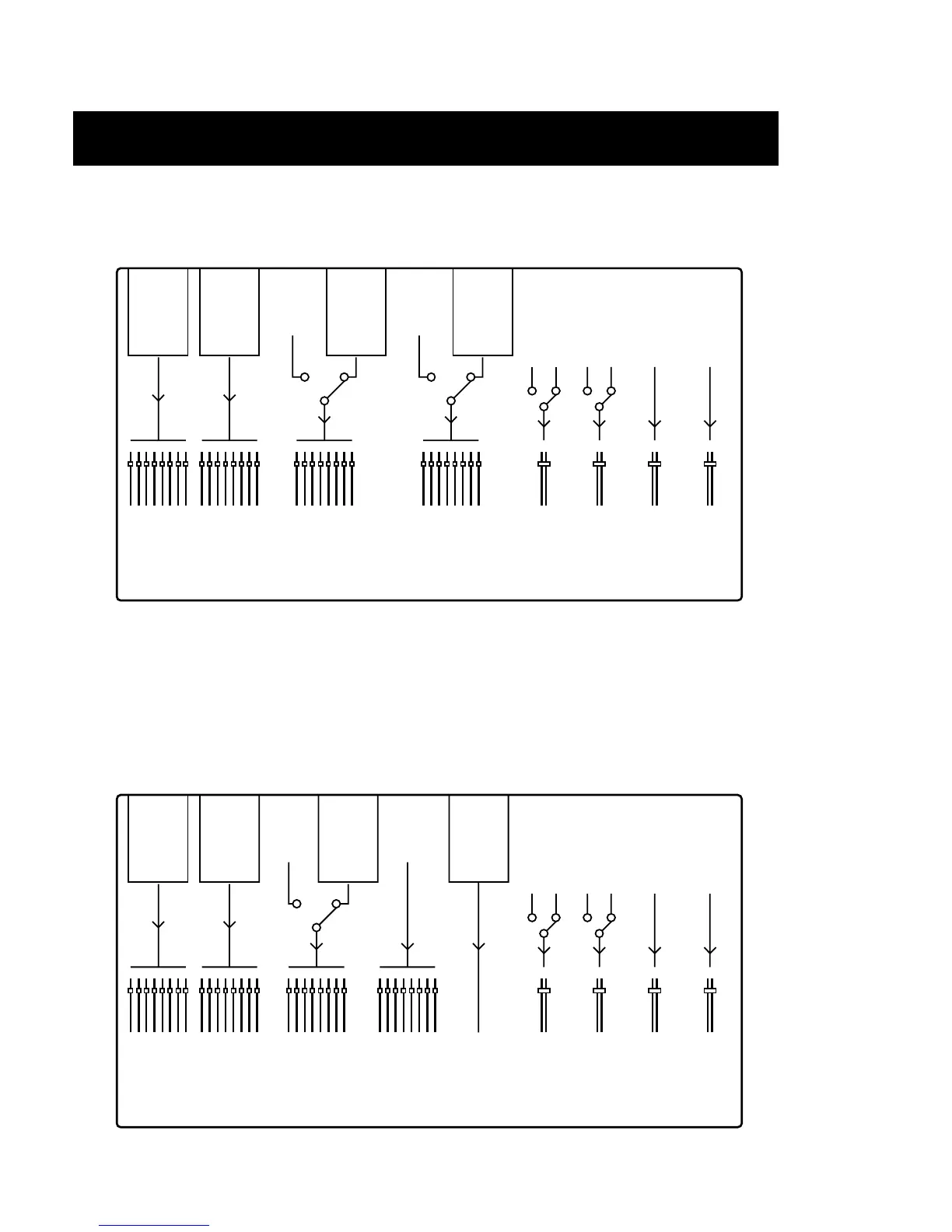

On a standard Yamaha 02R, the inputs are routed as shown below. To use a card in slot 3
or 4, blocks of 8 analog inputs have to be disabled.
SLOT 1 SLOT 2 SLOT 3
Analog
Mic
1-8
Analog
Mic
9-16
UNIT Y
SLOT 4
TAPE
1-8
TA P E
9-16
MIC
1-8
MIC
9-16
17/18 Analog
2Trk AES/EBU
19/20 Analog
2Trk SPDIF
17/18 19/20
YAMAHA 02R
21/22 Analog 23/24 Analog
21/22 23/24
STEREO FADERS
Unit Y Extended Routing Slot 3 or 4
L/R
DIRECT
SLOT 1 SLOT 2 SLOT 3
Analog
Mic
1-8
Analog
Mic
9-16
SLOT 4
TAPE
1-8
TA P E
9-16
MIC
1-8
MIC
9-16
17/18 Analog
2Trk AES/EBU
19/20 Analog
2Trk SPDIF
17/18 19/20
YAMAHA 02R
21/22 Analog 23/24 Analog
21/22 23/24
STEREO FADERS
Standard Input Routing
With UNIT•Y software 2.1 and upwards, we have added new return options for the signals
from a UNIT•Y card, so you don’t have to give up inputs regardless if the UNIT•Y card is
equipped with I/O or not.
If you use a UNIT•Y card containing I/O, you may even mix more external and effetcts
signals to the Main L/R bus than what’s possible on a normal 02R.
