TC Electronic UNIT•Y - Finalizer D.C. Gain Transfer; Max Output Level Adjustment; Static Gain Transfer Function

FINALIZER D.C. 31
0dBFS
-3dB
-6dB
-12dB
-18dB
-24dB
-30dB
-36dB
-42dB
-48dB
-54dB
-60dB
-60dB -54dB -48dB -42dB -36dB -30dB -24dB -18dB -12dB
-6dB -3dB
0dBFS
STATIC GAIN TRANSFER
INPUT LEVEL
OUTPUT LEVEL
Expander
Range: 10dB
Comp Ratio: 1:2
Expander Threshold: -34dBFS
Comp Threshold: -18dBFS
Limit Threshold:
-4dBFS
Expander Ratio: 1:2
Max Output Level
For Film mixing and Post Production it’s often required to set the max peak output level to
a value below Full Scale. The best place to adjust this is the Finalizer Engine Output fader
on the Main UNIT•Y screen.
Gain Transfer Function

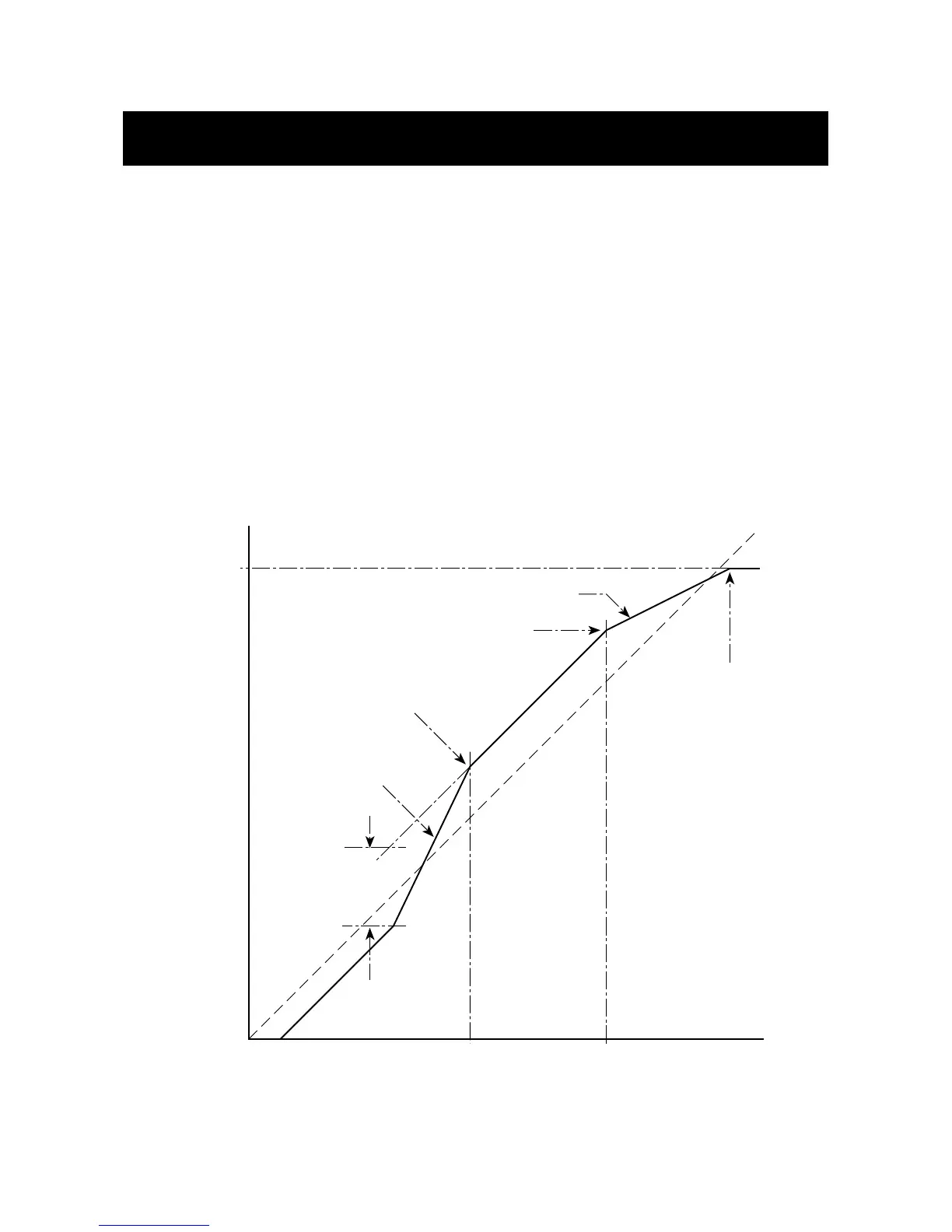

If you need a technical explanation for the Thresholds, Ratios and Ranges, this diagram
shows the static gain transfer function through the system.
Signal Levels and Thresholds refer to digital Full Scale, 0dBFS.
If the line is above the 45 degree dotted line, gain is added.
If the line is below the 45 degree dotted line, the signal is attenuated.
