6. 48 Volt Phantom Power Light
Indicates phantom power on or off.
7. Bank Select Switches
Push to cycle up and down through the 10 banks.
8. Stereo Light
When the LED is on the output is stereo.When it’s off,
the output is summed to mono.
9. Left Footswitch:A/B effect
The patches stored to the A and B settings can be
toggled here. Storing both patches is accomplished by
holding this footswitch.
10. Right Footswitch: Effect On/Off
Toggles the doubling effect on and off
11. Mic Input
Microphone connection.
12. Left Output (mono)
Connects the mono or left side of the stereo output to
a sound system depending on the Stereo/Mono status.
13. Right Output
Connects the mono or right side of the stereo output
to a sound system.
14. Power Input
Input connector for supplied power supply.

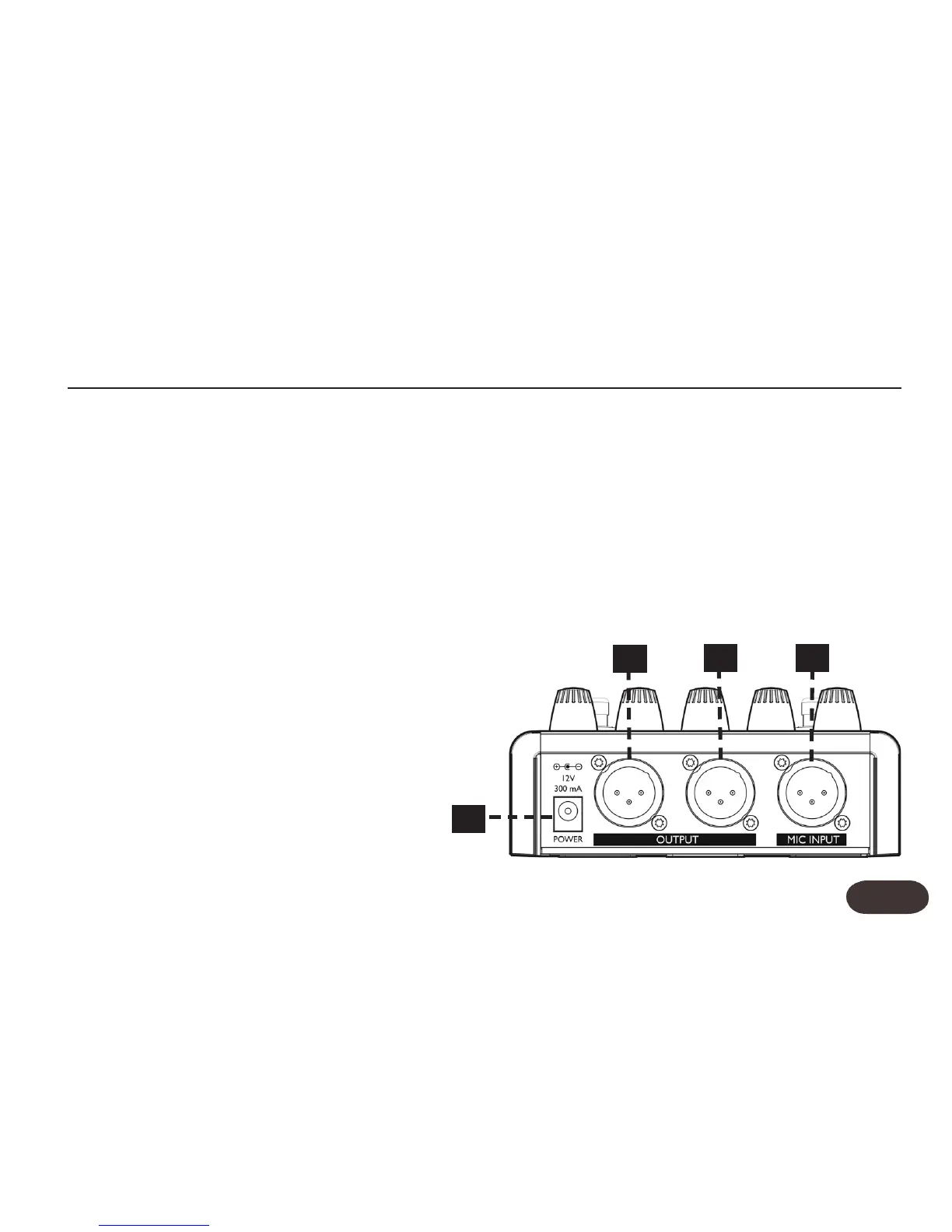

Front & Back Panel Descriptions
1112
13
14
To Next Page
