Handling
lift a fan by the inlet or discharge flange, impeller, motor or motor base, or in any other manner that may bend or distort parts.
Never lift with slings or timbers passed through the fan inlets.
lifting.

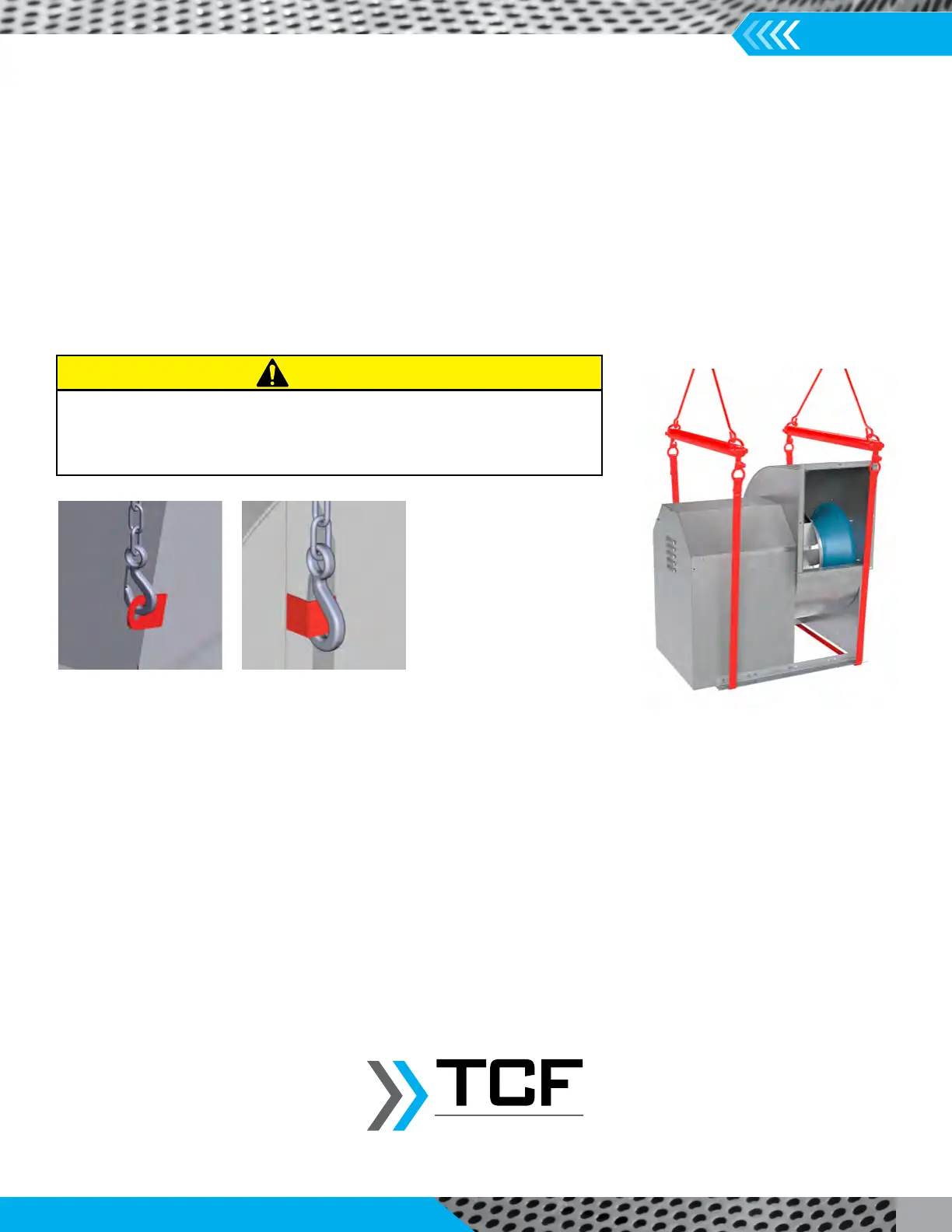

Lift fans as shown
Lifting lugs are provided on most units.
1. Maintain handling equipment to avoid serious personal injury and do not stand under
the load.
2. If supplied, only use the provided lifting lugs to lift the equipment.
3. Ensure that the lifting equipment is rated for the capacity to be lifted.
CAUTION
parts from damage. Components should be handled such that forces are not concentrated to avoid bending or distortion.
The housing should be lifted using suitably rated spreader bars and padded chains or straps. Do not distort housing or side plates
when lifting.
Never lift or support the assembly by the impeller. See the Fan Installation section for additional details.
Impellers shipped separately can be lifted by slings running between the blades or through the hub. Never lift the impeller by a
single blade or single point on the flange/shroud. Do not to put a chain within the hub bore. Always transport impellers by lifting,
do not roll the impeller as this can damage coatings and change the balance of the impeller.
