Installation, Operation & Maintenance Manual
IM-4055
13

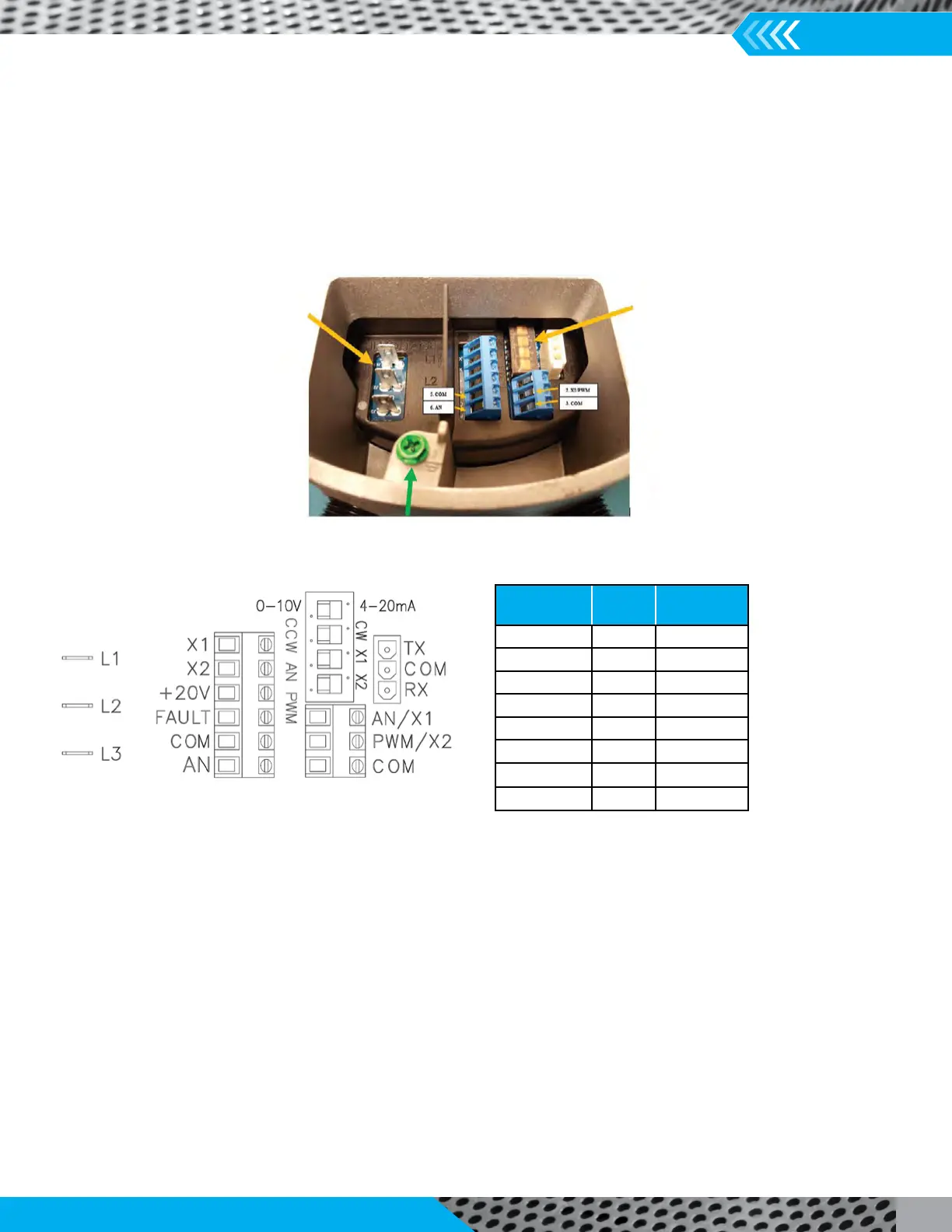

Figure 8. Connections for signal and power leads
Figure 9. Connection label supplied on cover plate
VOLTAGE CONNECTIONS
L1, L2, L3
MOTOR ROTATION
SWITCH #2
GROUND SCREW LOCATION
Table 3. Symax motors covered in this section
Connections
DC voltage signal. The motor is shipped with all necessary internal connections made for signal, power and ground connections.
Motor
Part Numbers
HP
Voltage/
Phase
67003305 1 208 - 230/3
67003306 1
1
/2 208 - 230/3
67003307 2 208 - 230/3
67003309 3 208 - 230/3
67003405 1 460/3
67003406 1
1
/2 460/3
67003407 2 460/3
67003409 3 460/3
Speed Control Options: OP Motors
Operation Method
This engineering sample is setup for constant speed operation. The analog DC control voltage controls the target speed to
Control Method
