TCL 55Q750G User Manual

9
To mount on a wall
If you are mounting your TCL Google TV to the wall, do not attach the TV base stand or TV
stand column.
To mount your TV to the wall, purchase the one of the following VESA wall mounts:
•55" model VESA 400x300, 2 M6x18mm 2 M6x12mm screws
•65" model VESA 300x300, 4 M6x18mm screws
•75" model VESA 400x400, 4 M6x20mm screws
The VESA number is the horizontal and vertical measurement of the mounting holes. For
example, 200 x 200 indicates that the mounting holes are spaced 200mm horizontally and
200mm vertically.
Follow the directions supplied with the wall mount to mount the TV to the wall.
Caution: Your wall mount must be able to bear a minimum of five times the TVs net weight to
avoid damage.
Note: The wall mount bracket and the screws are not included.
Warning: This product should only be mounted by a professional installer.
Warning: Never install or mount this product to the ceiling with the screen side facing down.
Installing or mounting this product to the ceiling or the underside of a structure or surface is
hazardous and may result in personal injury and/or property damage.

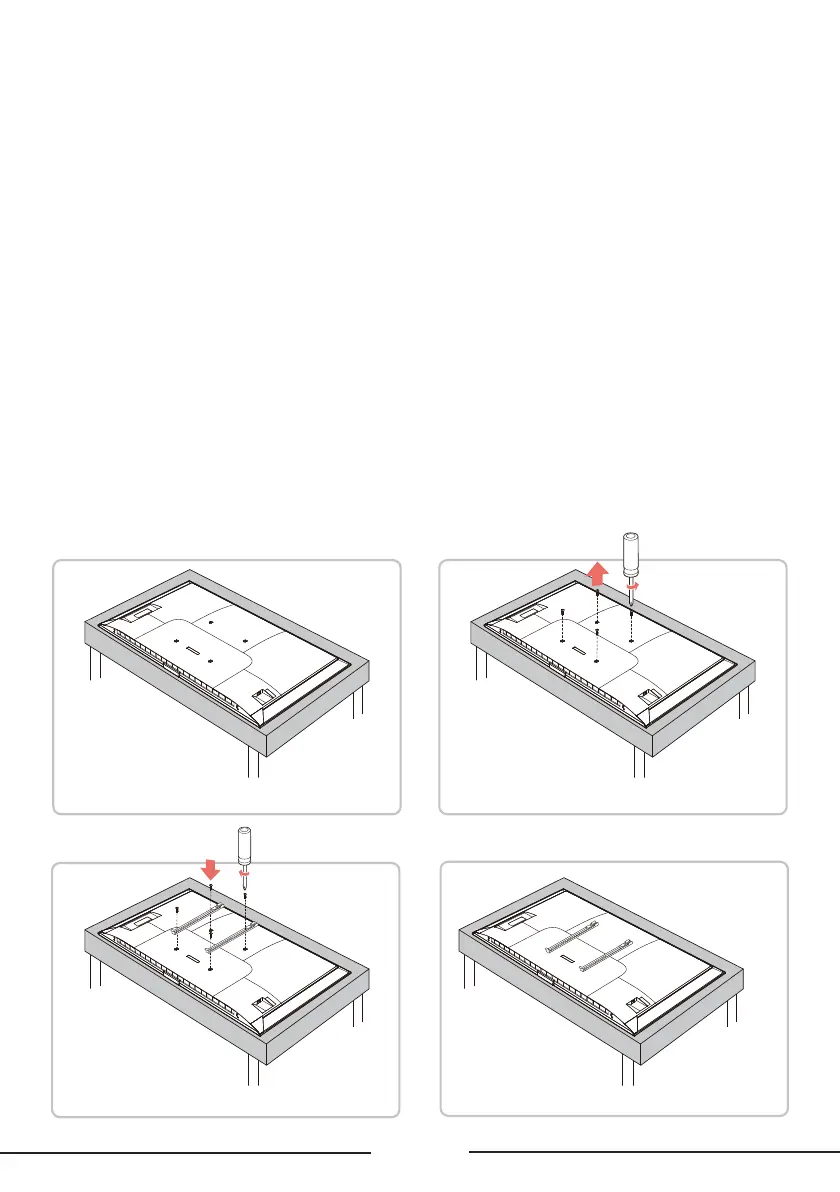

Place your TV on a soft, cushioned surface.
1
4
2
55”/65”: Remove the 2 screws on the top back of the TV.
75”: Remove the 4 screws on the back of the TV.
Follow the instructions that come with the wall mount to hang
the TV on the wall.
3
Screw the VESA bracket tightly onto the back cover with 4
VESA screws purchased with the wall mount separately.
VESA screws:
55”: 2 M6x18mm (top row)
2 M6x12mm (bottom row)
65”: 4 M6x18mm
75”: 4 M6x20mm

TCL 55Q750G Specifications

General

Product color	Black
Panel mounting interface	400 x 300 mm
Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Display technology	QLED
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Direct-LED
Contrast ratio (typical)	-
Display number of colors	1.07 billion colors
Motion interpolation technology	Motion Rate 480
PC in (D-Sub)	No
Composite video in	1
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Smart modes	Game
Operating system installed	Google TV
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Game features	Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR)
AMD FreeSync type	FreeSync Premium Pro
High Dynamic Range (HDR) technology	Dolby Vision IQ, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Audio decoders	Dolby Atmos, DTS-HD, Dolby Digital, Dolby Digital Plus
RMS rated power	30 W
Number of speakers	2
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Remote control input capabilities	Voice recognition
On Screen Display (OSD) languages	ENG, ESP, FRE
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
Package type	Box
Package depth	149.86 mm
Package width	1399.54 mm
Package height	863.6 mm
Package weight	19277.68 g
Cables included	AC
Batteries	2x AAA

Weight and Dimensions

Depth (with stand)	342.9 mm
Width (with stand)	1224.28 mm
Height (with stand)	767.08 mm
Weight (with stand)	13380.97 g
Depth (without stand)	71.12 mm
Height (without stand)	711.2 mm
Weight (without stand)	13108.82 g
