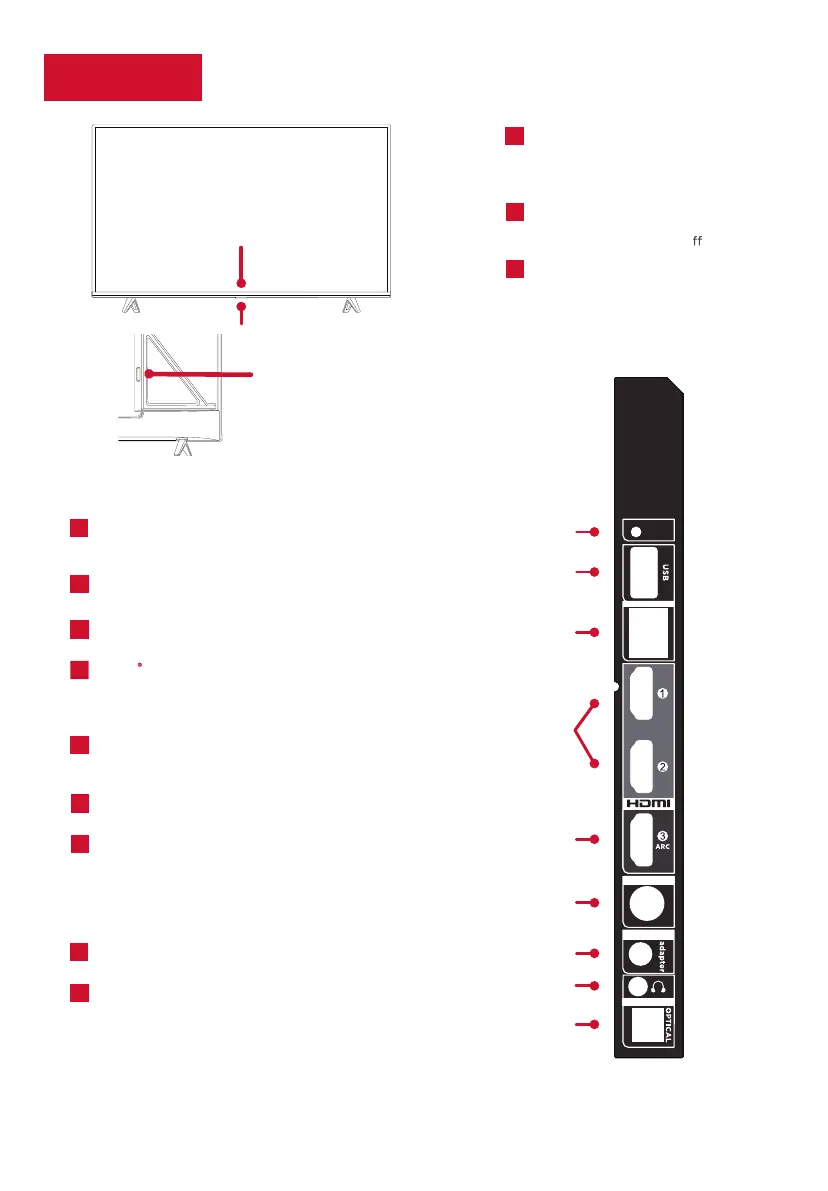

Step 4 Get to know your TV
F
home Internet router or switch.
ETHERNET Connect an Ethernet cable to your
HDMI ARC PORT Connect HDMI ARC (audio
return channel) capable audio devices like
sound bars or AV receivers.
H
PORT
Highest quality audio/video
connection. Connect cable box, Blu-ray player,
gaming console, or other devices to your TV
using HDMI cables.
HDMI
G
USB PORT Connect a USB device to access
photos, music and movies.
RESET BUTTON
Press once to restart your TV.
Press and hold for factory reset, and careful,
you will lose all your settings!
D
E
ANTENNA/
CABLE IN
Connect an outdoor VHF/
UHF antenna or Cable TV feed.
OPTICAL (DIGITAL AUDIO OUT) Connect an
optical cable to an external digital audio system.
I
L
J
HEADPHONE OUT Connect headphones or
other external speakers.
K
TV SIDE
D
E
F
G
H/G
I
J
K
L
TV FRONT
TV BACK
A
B
C
IR RECEIVER
Receives signal from
the TV remote.
STATUS LIGHT
Glows when the
TV is in standby.
A
POWER PORT Connect your TV
C
to the power source with the
included power cable.
POWER and OPTIONS BUTTON
B
Press once to open the menu.
Press and hold to turn o the TV.
RESET
AV IN
CABLE/ANT
AUDIO OUT
ETHERNET
The AV Input can be used to connect older devices
that use analog audio/video outputs. Compatible
adapter (not included) connects to the RCA cable
(video - yellow and audio - white and red) that you
normally use to connect to that device.
AV IN adapter
AV Input (analog audio/video).
