TCL 65C809 User Manual

EN
5
English

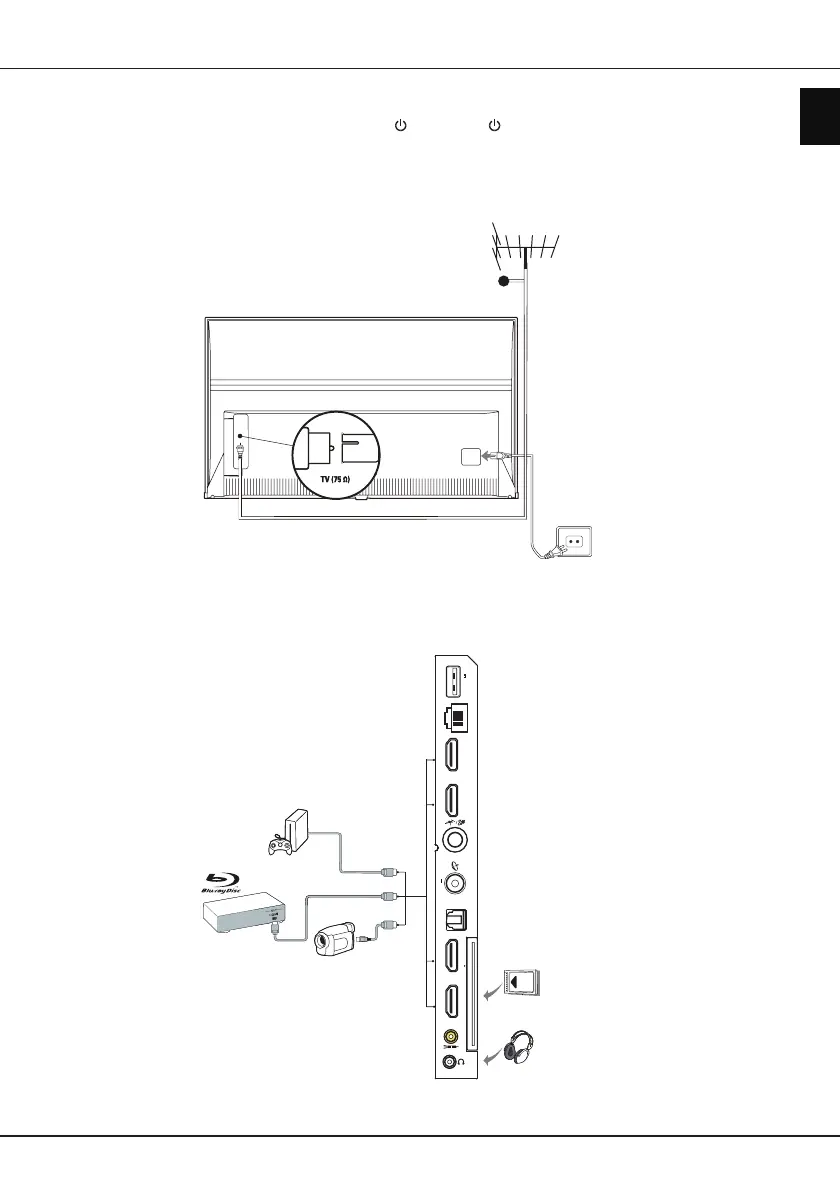

Connect the power and antenna
To switch on TV after connecting power cord, press or
POWER/
.
Notes:
- Position of power socket varies according to TV model.
- Disconnect the power cord before connecting devices.
Cable
Chapter 1 - Connections
(Optical)
Digital
audio out
USB 3.0
5V 0.9A
MAX
LAN
(Service port)
HDMI 1 (4K@144Hz) HDMI 2 (4K@120Hz)
eARC/ARC
Antenna/Cable input
Satellite input
13/18V 0.4A
MAX
AV adapter
Common interface
HDMI 3 (4K@60Hz) HDMI 4 (4K@60Hz)
HD game
console
Blu-ray Disc
player
HD Camcorder
Connect Blu-ray Disc player, HD game console, HD camcorder, headphones,
CI module

TCL 65C809 Specifications

General

Color depth	10 bit
Screen shape	Flat
Response time	5.7 ms
Display diagonal	65 \
Progressive scan	Yes
Display brightness	1300 cd/m²
Display technology	QLED
Native aspect ratio	16:9
Native refresh rate	144 Hz
Peak luminance ratio	65 %
LED backlighting type	Mini LED
Display diagonal (metric)	165.1 cm
Motion interpolation technology	PPI (Picture Perfomance Index) 4000
Dynamic contrast ratio marketing name	Mega Contrast
Ambient mode	Intelligent Picture
Game features	Auto Low Latency Mode (ALLM), Game Master Pro, Gamebar 2.0, HGiG, Variable Refresh Rate (VRR)
USB recording	No
Processor cores	4
AMD FreeSync type	FreeSync Premium Pro
Audio formats supported	MP3, WMA
Image formats supported	BMP, HEIF, JPG
Video formats supported	AVI, H.264, H.265, MKV, MP4, MPG, TS, VP9, WEBM, WMV
Video compression formats	H.264, H.265, MPEG2
Picture processing technology	TCL AiPQ 3.0 Processor
High Dynamic Range (HDR) technology	Dolby Vision IQ, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
RF connector type	F, IEC
RF ports quantity	2
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	T-link
Common interface Plus (CI+) version	1.4
Tuner type	Analog & digital
Number of tuners	1 tuner(s)
Analog signal format system	NTSC, PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Music apps	Spotify, TIDAL, YouTube Music
Video apps	Amazon Prime Video, Apple TV, Disney+, HBO, Netflix, Twitch, YouTube
Smart modes	IMAX Enhanced, Sports
Lifestyle apps	Google Apps
Operating system version	ATV 12.0
App distribution platform	Google Play
Operating system installed	Google TV
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.3
Control type	Buttons, Wireless
Programming period	8 day(s)
Number of OSD languages	29
Firmware upgradeable via	Network, USB
On Screen Display (OSD) languages	ALB, BUL, CRO, CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, LAT, LIT, MAC, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, TUR, UKR
Audio decoders	DTS, Dolby Atmos, Dolby Digital, DTS Virtual:X, DTS:X, Dolby Digital AC4, Dolby TrueHD
RMS rated power	30 W
Audio output channels	2.0 channels
Equalizer bands quantity	7
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Bluetooth profiles	A2DP, HID
Stand type	Center stand
Product color	Black
Heavy metals free	Cd (cadmium)
Panel mounting interface	300 x 300 mm
Cables included	AC
Remote control type	RC833
Cord length	1.5 m
User memory	18.7 GB
Power plug type	Type C
Processor frequency	1.4 GHz
Processor architecture	ARM Cortex-A73
Package depth	177 mm
Package width	1647 mm
Package height	995 mm
Package weight	27200 g
Pallet width	1650 mm
Pallet height	1135 mm
Pallet length	1080 mm
Quantity per truck	192 pc(s)
Quantity per pallet	6 pc(s)
Number of pallets per truck	32 pc(s)

Weight and Dimensions

Stand width	355 mm
Depth (with stand)	320 mm
Width (with stand)	1444 mm
Height (with stand)	898 mm
Weight (with stand)	20700 g
Depth (without stand)	78 mm
Height (without stand)	840 mm
Weight (without stand)	19600 g
