Getting started
Important
:
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries when
the remote control is not to be used for a long time. Batteries left in equipment may cause damage through
deterioration and corrosive leakage, invalidating the guarantee.
To protect the environment use local recycling facilities for battery disposal. Dispose of used batteries
according to the instructions.
CAUTION
: Risk of explosion if batteries are replaced by an incorrect type. Replace only with the same or
equivalent type recommended by the equipment manufacturer.
If the batteries in your remote control are run down, you can use the button on your TV set.
You can turn on the TV from standby mode by pressing the button on your TV set.

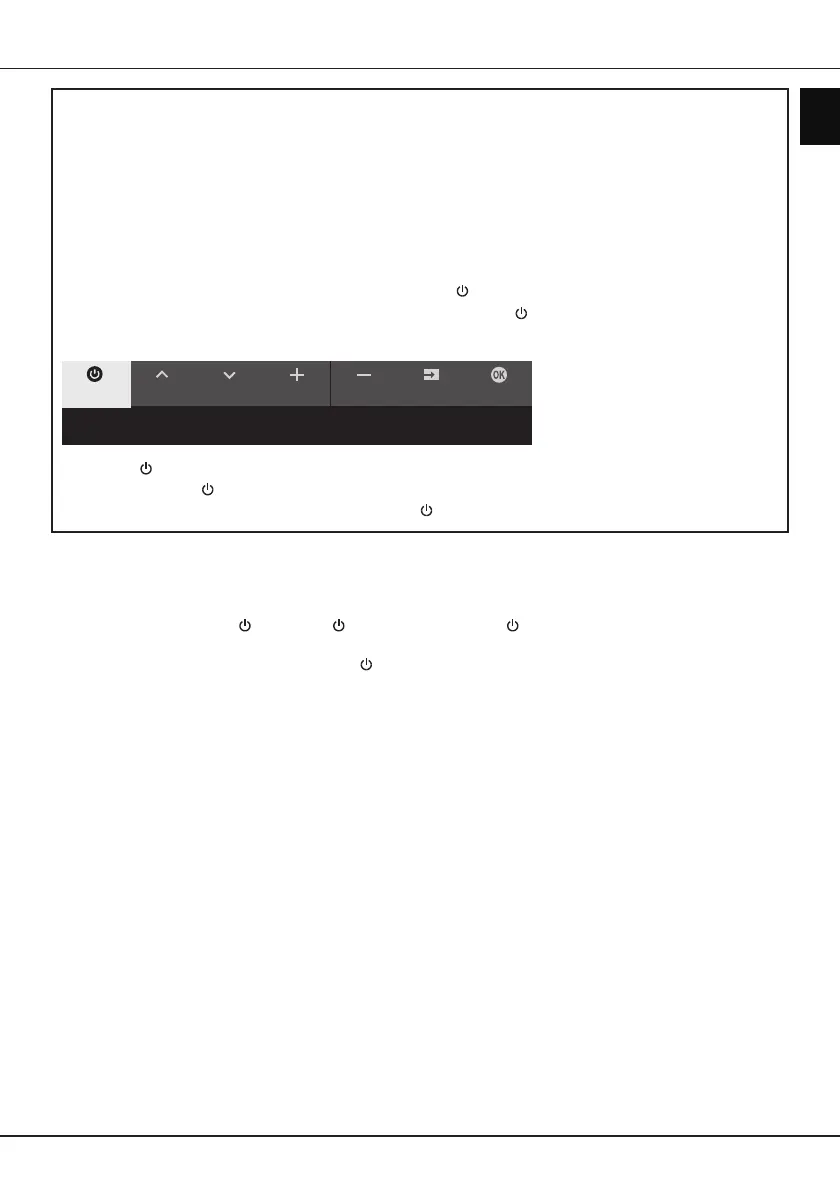

While the TV is on, the multi-function menu appears by pressing the button on your TV set. For more
information about how to use the multi-function menu, please refer to the figure below.
CH+ CH- Volume+
Source OKVolume-
Standby
Tips: Click to select options, press and hold to confirm.
• Press the button to move the highlight to the next function selection.
• Press and hold the button for more than 2 seconds to confirm your selection.
Note: Please refer to the Quick Start Guide to nd the button on your TV set.
Switch the TV on and o󰀨
1.
When the power cord is connected, the TV will be turned on directly or be in standby mode. If the TV is in
standby mode, press the or
POWER/
button on the set or the button on the remote control to turn it
on.
2.
To put the TV into standby mode, press the button on the remote control. The TV set remains powered up,
but with low energy consumption.
3.
To switch the TV o󰀨, unplug the mains plug from the mains outlet.
Note: In order to save energy and protect environment, certain models are designed with a relay switch. It is
normal phenomenon if you hear the sound of the relay when you turn on or o the TV set.
Initial setup
The rst time you switch the set on, the
Welcome
screen appears, which guides you through the initial setup
process. Follow the on-screen instructions to nish the initial setup process such as selecting the language,
connecting to the network, scanning channels, and more. During each step, either make a choice or skip the
step. If you skip a step, you can perform the setup later from the settings menu.
Note: If the channel search retrieved only the analogue channels it could be caused by poor broadcasting and
therefore is not covered by manufacturer warranty. Manufacturers cannot be held responsible for lack of
or poor broadcasting in some areas.

TCL 65C809 Specifications

General

Color depth	10 bit
Screen shape	Flat
Response time	5.7 ms
Display diagonal	65 \
Progressive scan	Yes
Display brightness	1300 cd/m²
Display technology	QLED
Native aspect ratio	16:9
Native refresh rate	144 Hz
Peak luminance ratio	65 %
LED backlighting type	Mini LED
Display diagonal (metric)	165.1 cm
Motion interpolation technology	PPI (Picture Perfomance Index) 4000
Dynamic contrast ratio marketing name	Mega Contrast
Ambient mode	Intelligent Picture
Game features	Auto Low Latency Mode (ALLM), Game Master Pro, Gamebar 2.0, HGiG, Variable Refresh Rate (VRR)
USB recording	No
Processor cores	4
AMD FreeSync type	FreeSync Premium Pro
Audio formats supported	MP3, WMA
Image formats supported	BMP, HEIF, JPG
Video formats supported	AVI, H.264, H.265, MKV, MP4, MPG, TS, VP9, WEBM, WMV
Video compression formats	H.264, H.265, MPEG2
Picture processing technology	TCL AiPQ 3.0 Processor
High Dynamic Range (HDR) technology	Dolby Vision IQ, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
RF connector type	F, IEC
RF ports quantity	2
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	T-link
Common interface Plus (CI+) version	1.4
Tuner type	Analog & digital
Number of tuners	1 tuner(s)
Analog signal format system	NTSC, PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Music apps	Spotify, TIDAL, YouTube Music
Video apps	Amazon Prime Video, Apple TV, Disney+, HBO, Netflix, Twitch, YouTube
Smart modes	IMAX Enhanced, Sports
Lifestyle apps	Google Apps
Operating system version	ATV 12.0
App distribution platform	Google Play
Operating system installed	Google TV
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.3
Control type	Buttons, Wireless
Programming period	8 day(s)
Number of OSD languages	29
Firmware upgradeable via	Network, USB
On Screen Display (OSD) languages	ALB, BUL, CRO, CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, LAT, LIT, MAC, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, TUR, UKR
Audio decoders	DTS, Dolby Atmos, Dolby Digital, DTS Virtual:X, DTS:X, Dolby Digital AC4, Dolby TrueHD
RMS rated power	30 W
Audio output channels	2.0 channels
Equalizer bands quantity	7
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Bluetooth profiles	A2DP, HID
Stand type	Center stand
Product color	Black
Heavy metals free	Cd (cadmium)
Panel mounting interface	300 x 300 mm
Cables included	AC
Remote control type	RC833
Cord length	1.5 m
User memory	18.7 GB
Power plug type	Type C
Processor frequency	1.4 GHz
Processor architecture	ARM Cortex-A73
Package depth	177 mm
Package width	1647 mm
Package height	995 mm
Package weight	27200 g
Pallet width	1650 mm
Pallet height	1135 mm
Pallet length	1080 mm
Quantity per truck	192 pc(s)
Quantity per pallet	6 pc(s)
Number of pallets per truck	32 pc(s)

Weight and Dimensions

Stand width	355 mm
Depth (with stand)	320 mm
Width (with stand)	1444 mm
Height (with stand)	898 mm
Weight (with stand)	20700 g
Depth (without stand)	78 mm
Height (without stand)	840 mm
Weight (without stand)	19600 g
