TCL Alcatel Idol4 User Manual

L2 Repair Enhance Document TCL Communication Ltd.
Rev.
ONE TOUCH 6055K/P/Y/B/H Level 2 Enhance Repair Document
Page
1.0
41/72
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

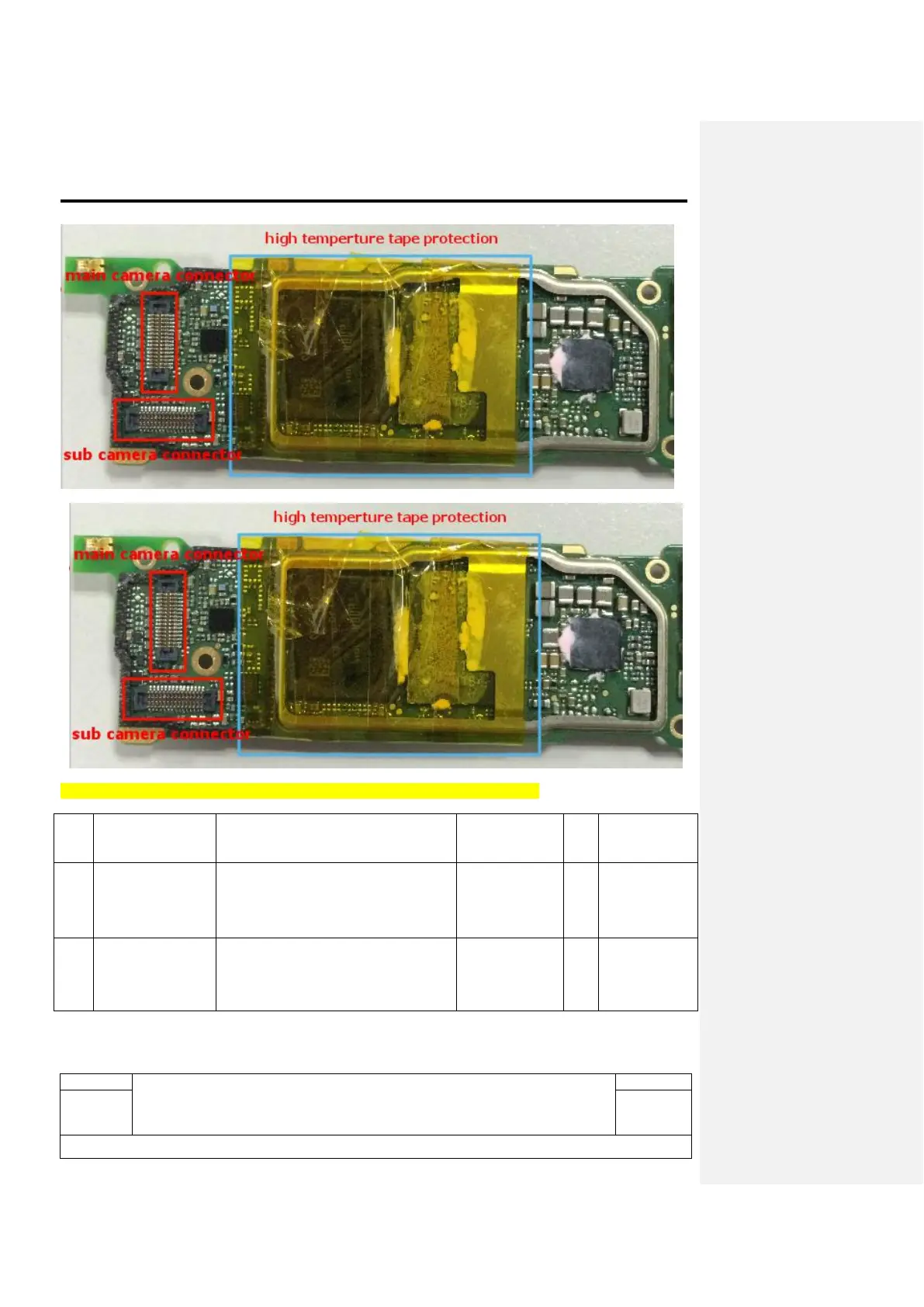

For below components mark in box, cannot be repaired due to the ICs dispensed:
Item
Name
Description
Partnumber
Qty
Remark
147
coaxial cable
connect-socket
同轴线连接器母头,coaxial cable
connect-socket,Over PCB,2 PINs,0
mm,2.0×2.0×WH1.18 mm,W/O
POST+W/O DIP,coaxial cable
connector-socket,ECT818000531,ECT
ARM0020009C1
1
just open on
wifi PCBA
148
antenna spring,
天线弹片,antenna spring,Over PCB,1
PINs,0 mm,3.35x1.2xWH1.0 mm,W/O
POST+W/O DIP,N/A,TM014-
601,JTCONN
ARM0010034C1
3
open on wifi
PCBA(2pcs)
and safe area
on main
PCBA(1pcs)..
