TCL Alcatel Idol4 User Manual

L2 Repair Enhance Document TCL Communication Ltd.
Rev.
ONE TOUCH 6055K/P/Y/B/H Level 2 Enhance Repair Document
Page
1.0
42/72
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
151
RF Connector
RF 连接器,RF Connector,Over PCB,2
PINs,0 mm,1.8×1.8×0.85 mm,W/O
POST+W/O DIP,mini RF 4 switch
connector,818000586,ECT
ARF0020001C1
4
not open in
folog
152
BTB Battery
Connector
板对板电池连接器,BTB Battery
Connector,Over PCB,6 PINs,1.3
mm,6.0×2.8×WH0.9 mm,With
POST+W/O DIP,for
Landrover,CPB9406-0113E,SMK
ARE0060002C1
1
not open in
folog
155
,BTB
Connector(Socket)
板对板连接器(插座),BTB
Connector(Socket),Over PCB,10
PINs,0.35 mm,5.25×2.3×0.8 mm,W/O
POST+W/O DIP,N/A,BM24-10DS/2-
0.35V(51),HRS
ARC0100011C1
1
not open in
folog
156
,BTB
Connector(Socket)
板对板连接器(插座),BTB
Connector(Socket),OVER PCB,10.0
PINs,0.40 mm,4.6X2.2XH0.9mm,W/O
POST+W/O
DIP,N/A,245804010000829+,KYOCERA
ARC0100002C1
3
not open in
folog
201
BTB
Connector(Socket),
板对板连接器(插座),BTB
Connector(Socket),OVER PCB,30.0
PINs,0.40 mm,8.6x4.2xH0.9mm,W/O
POST+W/O
DIP,N/A,245804030000829+,KYOCERA
ARC0300004C1
2
open on safe
area
on main
PCBA(2pcs).

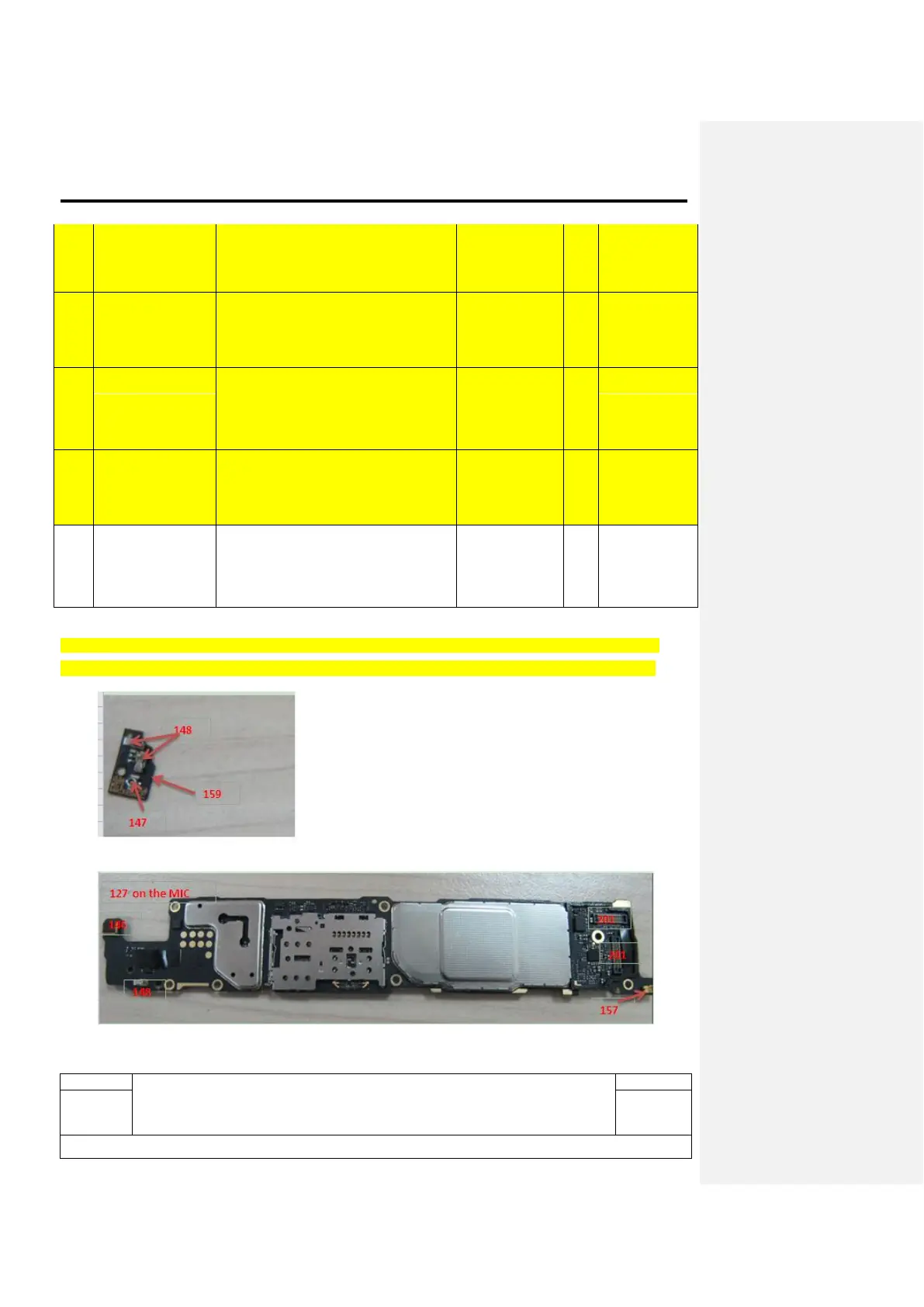

However, there are also same components on the Sub PCBA and the back side of main PCBA can be
repaired, for item 147,148 on the sub PCBA, and item 201 on the main PCBA, which can be repaired:
