6.3 Disassembly process
(1) The steps of disassembly 8085 are as below.

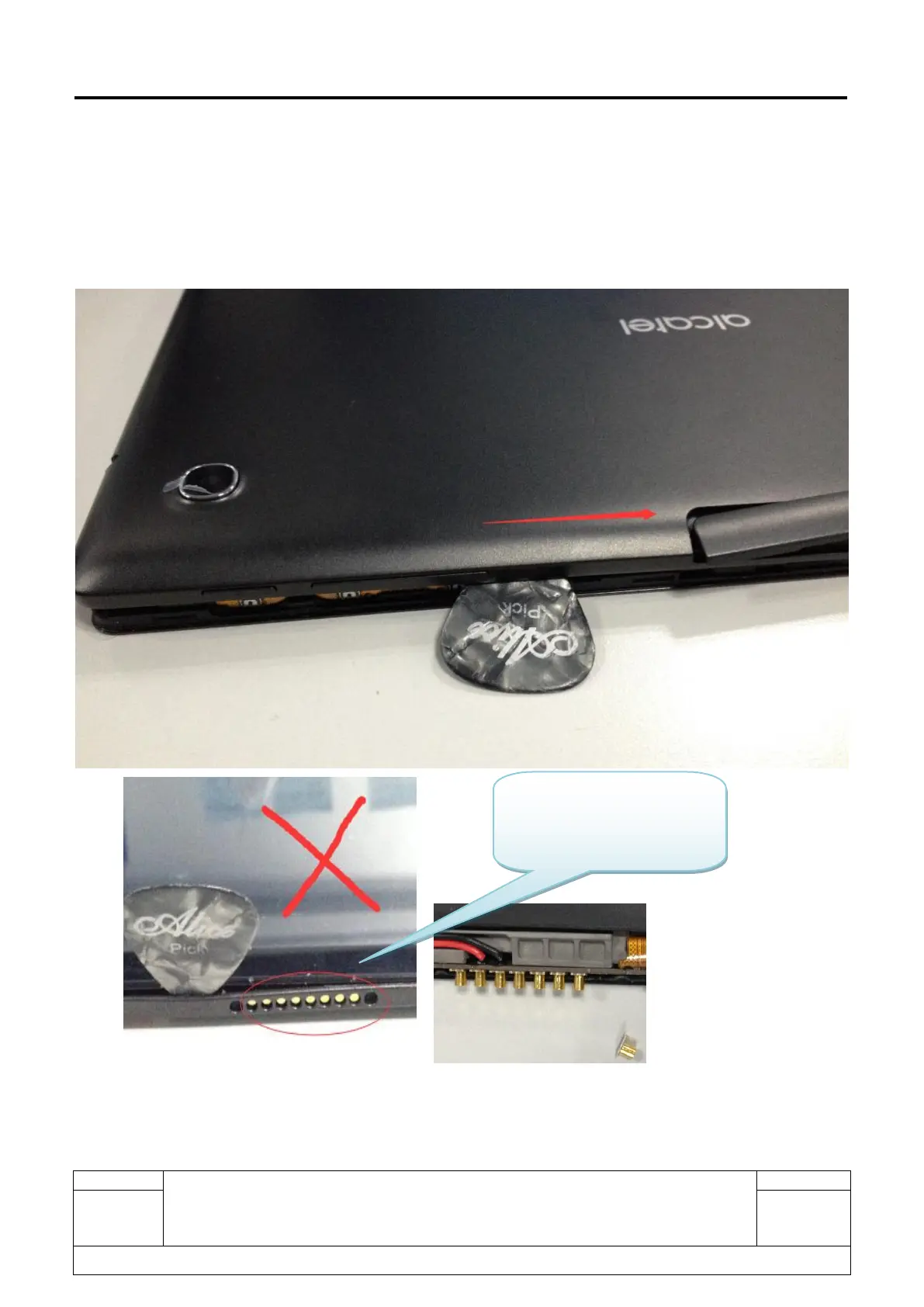

Step1: Take off the back cover by using plastic flake.
Note: disassembly the back cover along the direction of the arrow. Be careful not to damage the side
key FPC.
Don’t disassembly from
this side, as it will
damage the Dock pin
