L2 Repair Document TCL Communication Ltd.
ONETOUCH 8085+LKB001X/A
Level 2 Repair Document
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

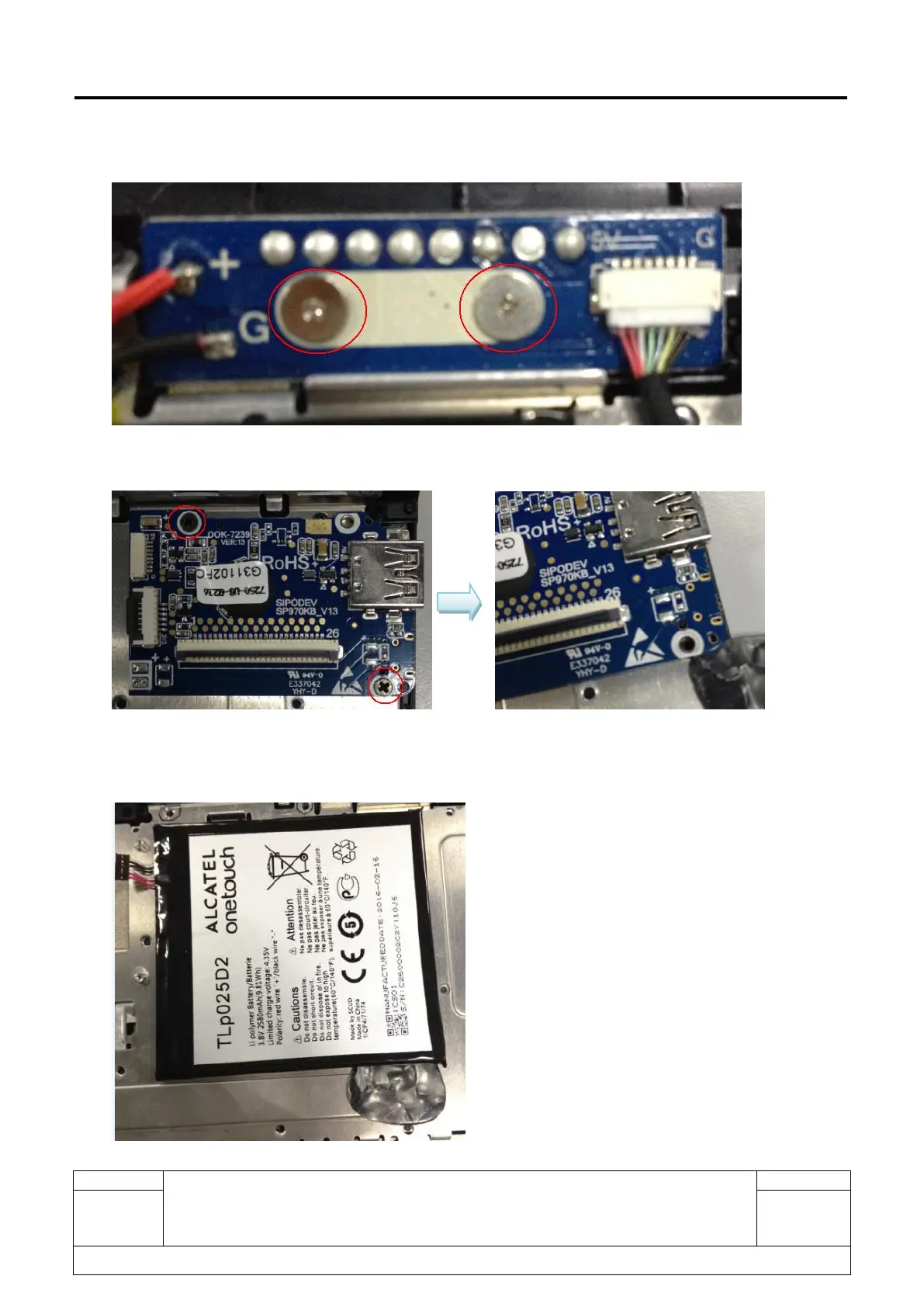

Step6: Remove the 3 screws on pogo pin PCBA with screw driver and separate pogo pin PCBA with
plastic flake.
Step7: Remove the 2 screws on PCBA with screw driver and separate PCBA with plastic flake.
Step8: Remove all the screws on Middle support with screw driver.
Step9: Separate the battery with plastic flake.
To Next Page
