Visual inspection according to
Part 1
1. RCs collect defective PCBAs
with appearance problem and
send to RSH.
2. RSH keep the PCBAs.
Send back L3
PCBAs
Swap PCBA
Packing the PCBAs according
to Part 2
Y
N

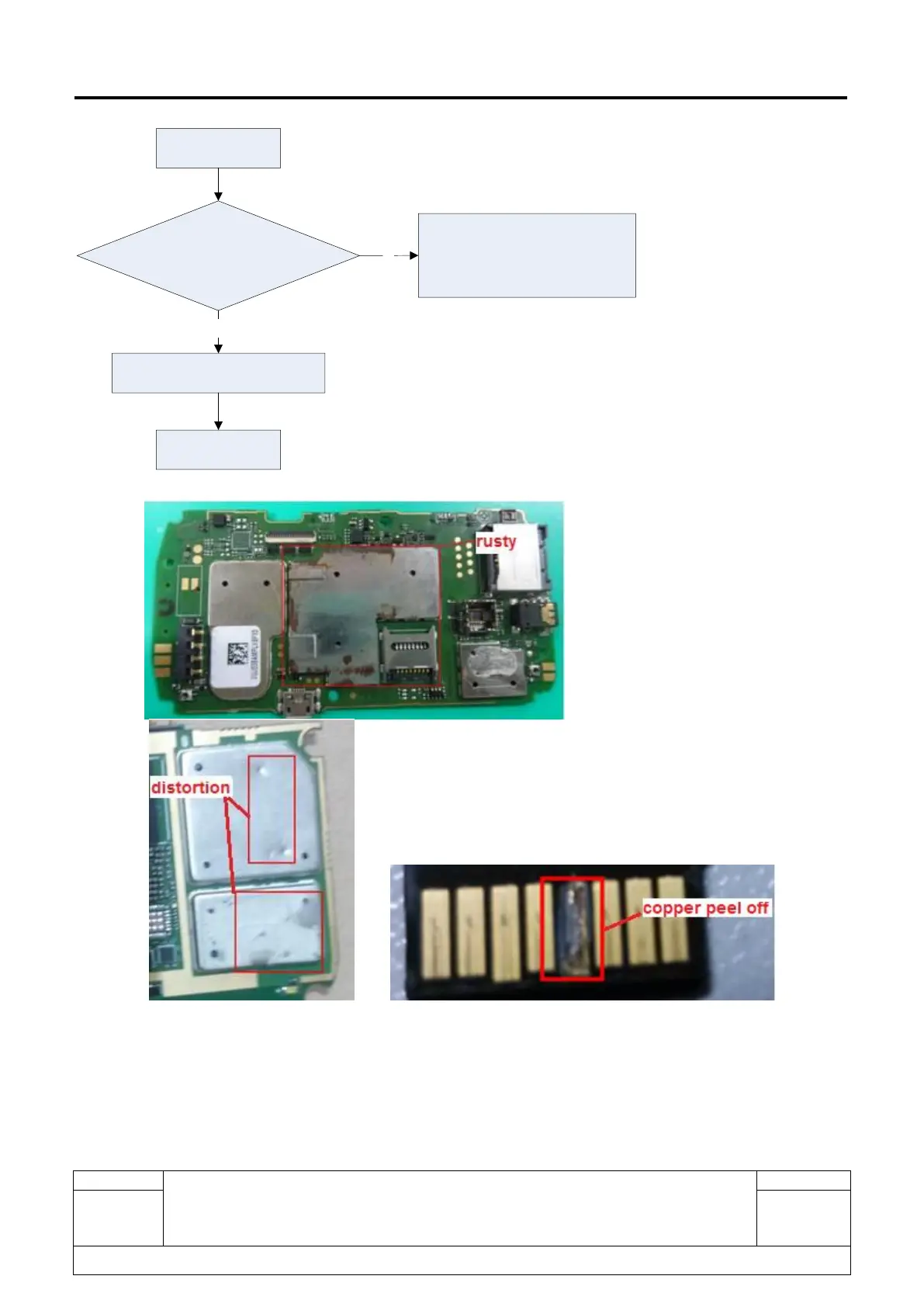

 1) The PCBA which shielding cover is rusty or distortion, copper peel off;
 2) Smudge on PCBA, such as soldering flux, rudimental glue, handwriting, burn, scratch and so on;
×
×
×
