Connections and Setup

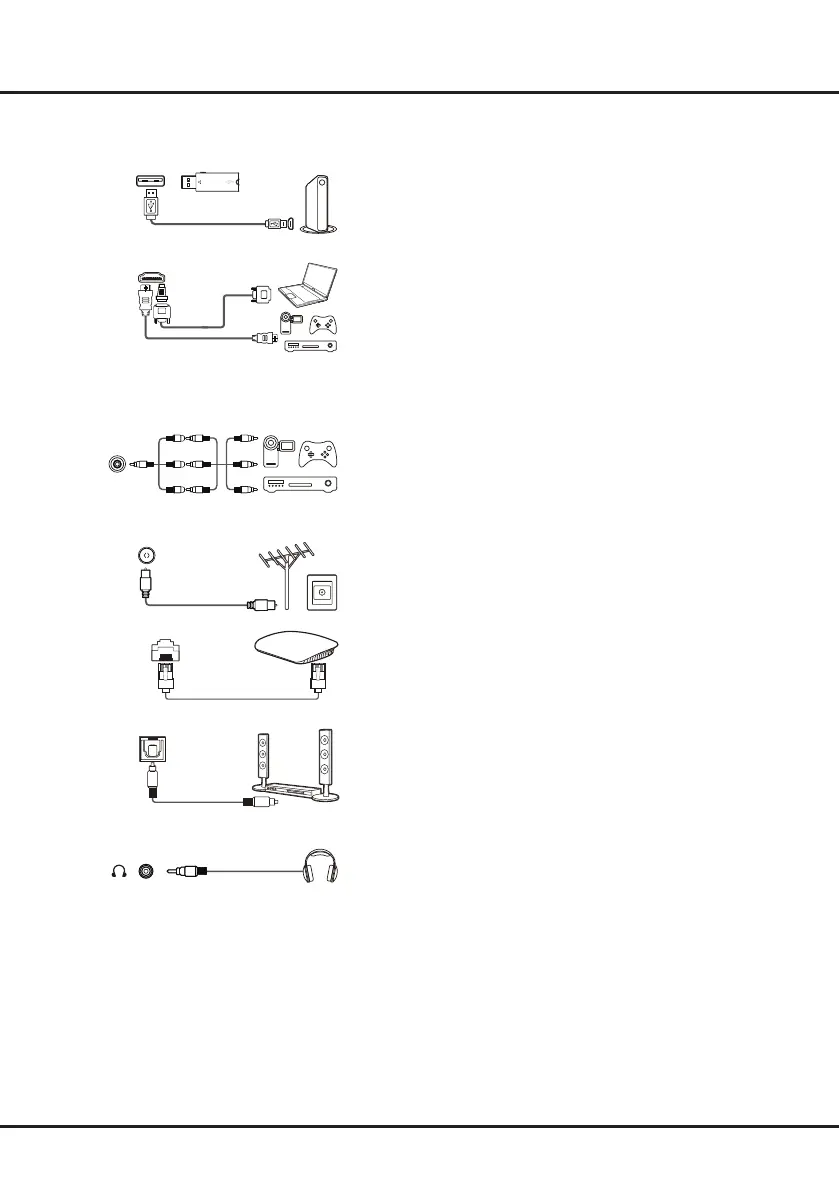

Sockets
Note: The location and names of the sockets on the TV may vary according to TV model, and not all sockets are available on all models.
USB2.0 socket (input)
These sockets can be used to connect a USB device.
Note: The number of USB sockets on the TV may vary according to
TV model.
HDMI(SERVICE) or HDMI(ARC) socket (input)
TheHDMI(High-DenitionMultimediaInterface)socketcanbe
used to connect a Blu-ray player, PC with a compatible video card
installed,certainDVDplayersorahigh-denitioncompatibledigital
satellite decoder. This socket provides an uncompressed digital
connection that carries both video and audio data by way of an
integrated mini-plug cable.
AV IN adapter socket
The AV IN adapter socket can be used to connect the attached
AV adapter cable with VIDEO and AUDIO L & R IN sockets. The
AV IN sockets can be used to connect a range of equipment,
including video recorders, camcorders, decoders, satellite receivers,
DVD players, or games consoles. The VIDEO IN socket provides
composite video connection.
ANTENNA IN socket (input)
This socket can be used to connect an outside aerial.
LAN
RJ45 plug for connecting to external modem or network access
equipment.
SPDIF socket (output)
The SPDIF socket can be used to connect a compatible digital audio
receiver.
Headphone socket (output)
This socket can be used to connect headphones or stereo
earphones.
Warning: Excessive sound pressure from earphones and
headphones can cause hearing loss.
SPDIF
LAN
Router / Modem
ANTENNA IN
AV IN
adapter
V L R V L R V L R
HDMI
(SERVICE)
or HDMI
(ARC)
USB 2.0
HDD
