TCL Air Conditioner Service Manual
41

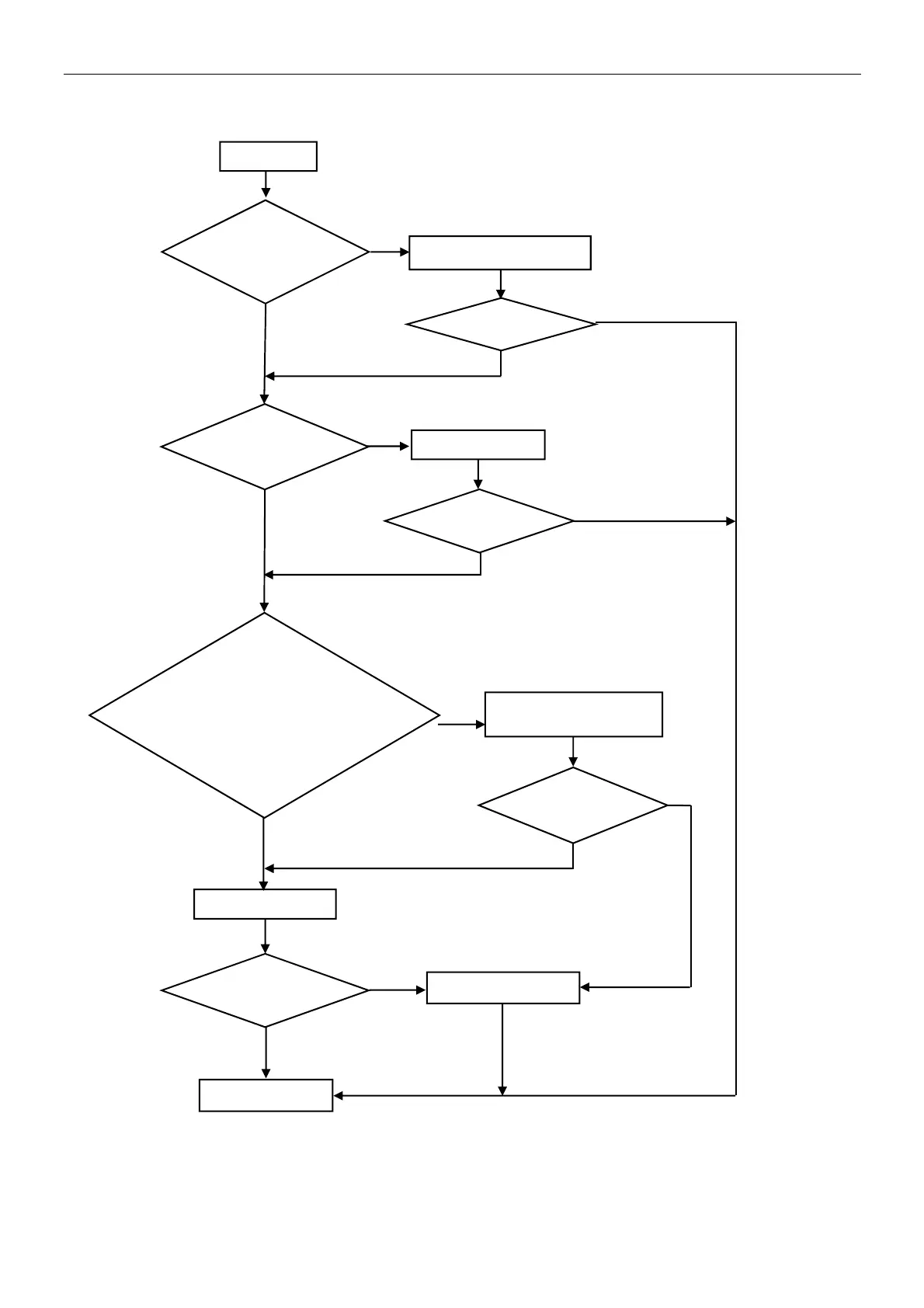

3.2.7 EF---ODU DC fan motor failure
Shut off
Check the fan blade by
hand, can it rotate freely
Re install the DC motor
Fan motor well
connect to PCB
Re-connect
1. For built-in control (5pins)
motor: check the V
m
=310V?
V
cc
=15V?
2. For external control (3pins)
motor: test voltage btw U/V/W ,
normall
from DC 20~200V.
Replace ODU PCB
Check the fan motor,
can it o
erate or not.
Replace fan motor
No
No
Yes
Yes
End
Works normal?
No
Yes
Yes
Yes
No
Yes
Yes
No
No
Works normal?
No
Works normal?
Works normal?
To Next Page
