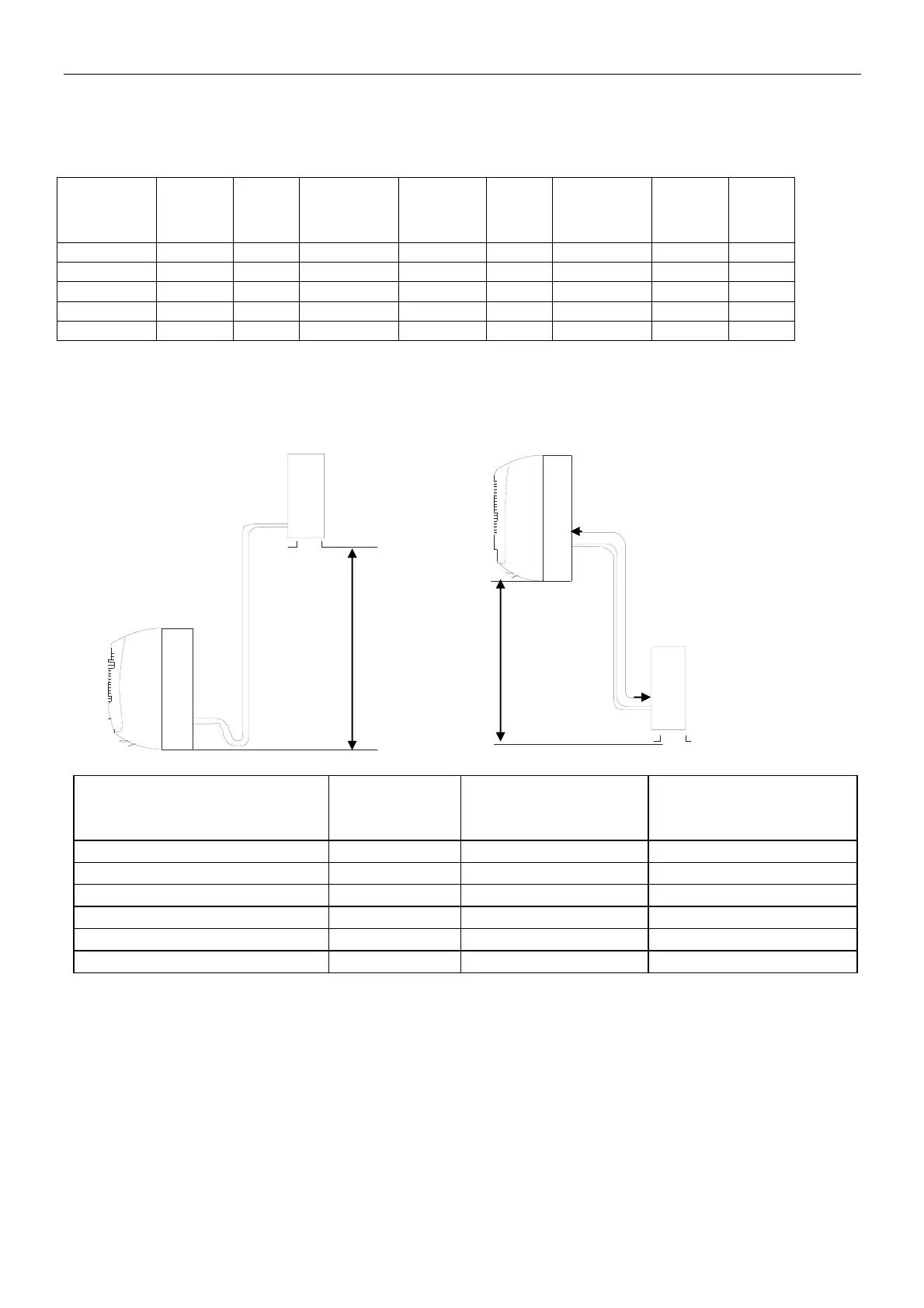

TCL Air Conditioner Service Manual
68
APPENDIX
Appendix 1 The comparison table of Celsius-Fahrenheit temperature
Fahrenheit
diplay
temperature
()
Fahrenheit
()
Celsius
(
)
Fahrenheit
diplay
temperature
()
Fahrenheit
()
Celsius
(
)
Fahrenheit
diplay
temperature
()
Fahrenheit
()
Celsius
(
)
61 60.8 16 69/70 69.8 21 78/79 78.8 26
62/63 62.6 17 71/72 71.6 22 80/81 80.6 27
64/65 64.4 18 73/74 73.4 23 82/83 82.4 28
66/67 66.2 19 75/76 75.2 24 84/85 84.2 29
68 68 20 77 77 25 86 86 30
Appendix 2 The Pipe length and Gas charging
Mode
Standard length
(m)
Refrigerant piping
Max. length (m)
A
Additional refrigerant
charging: Xg= B * (A-5m)
B
9K
5.0
25 15g/m
12K
5.0
25 15g/m
18K
5.0 25
25g/m
24K
5.0 25
25g/m
30K
5.0 25
25g/m
36K
5.0 25
25g/m
Outdoor unit
Pipe length is 25
meters Max.
Height should be
less than 10m
Indoor unit
Outdoor unit
Pipe length is 25
meters Max.
Indoor unit
Height should be
less than 10m
