TCL TAC-14CHPA - Page 26

TCL Air Conditioner Service Manual
26

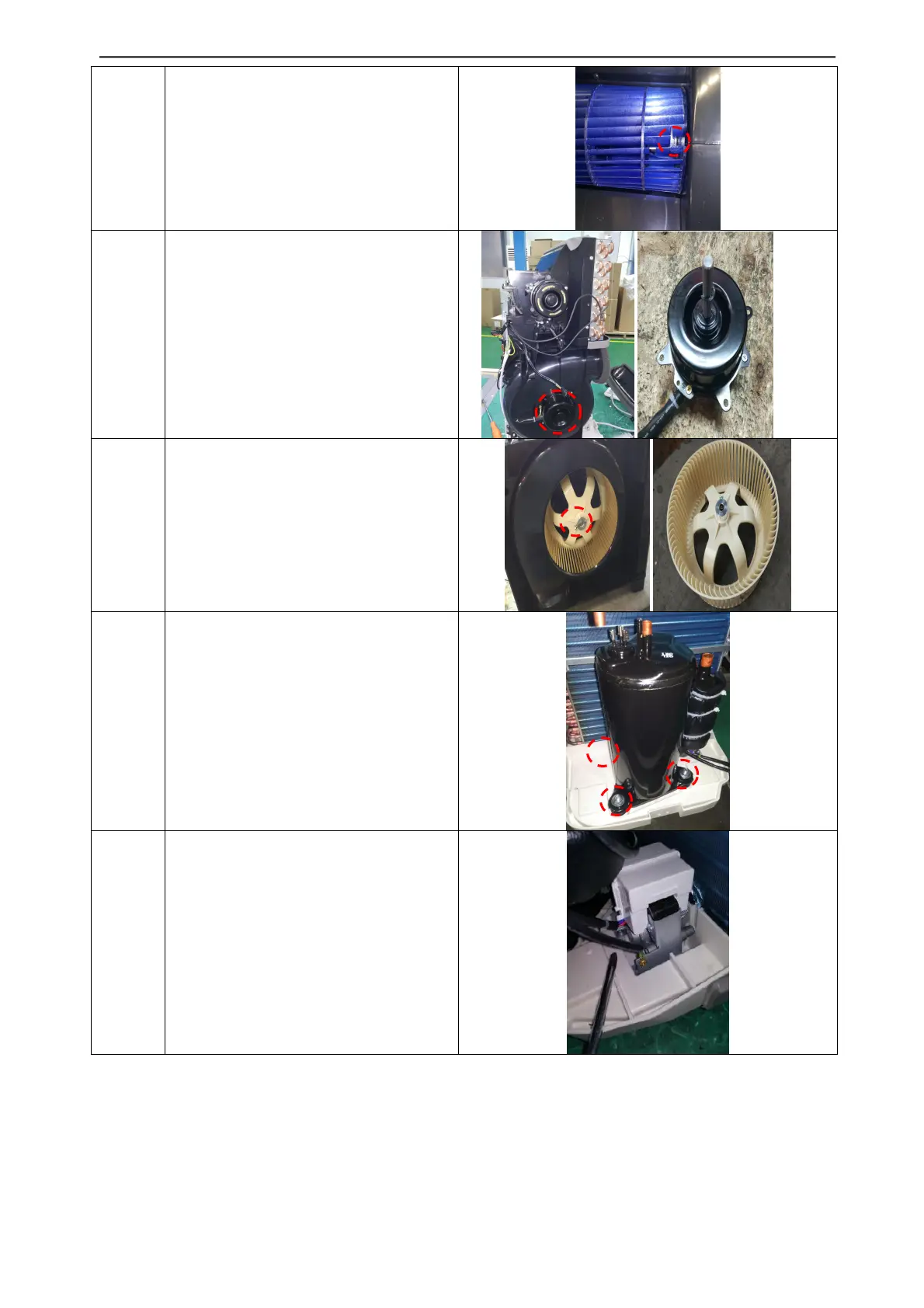

19
Unscrew 1screw to remove
Fan of evaporator
20
Unscrew 4 screws to remove
Condenser motor
21
Unscrew 1 screw to
remove the fan of condensor
22
Unscrew 3 Hexagon nuts with flange
to remove compressor
23
Unscrew 2 screws to take out Splash
motor
