TCL AIR-CON SERVICE MANUL

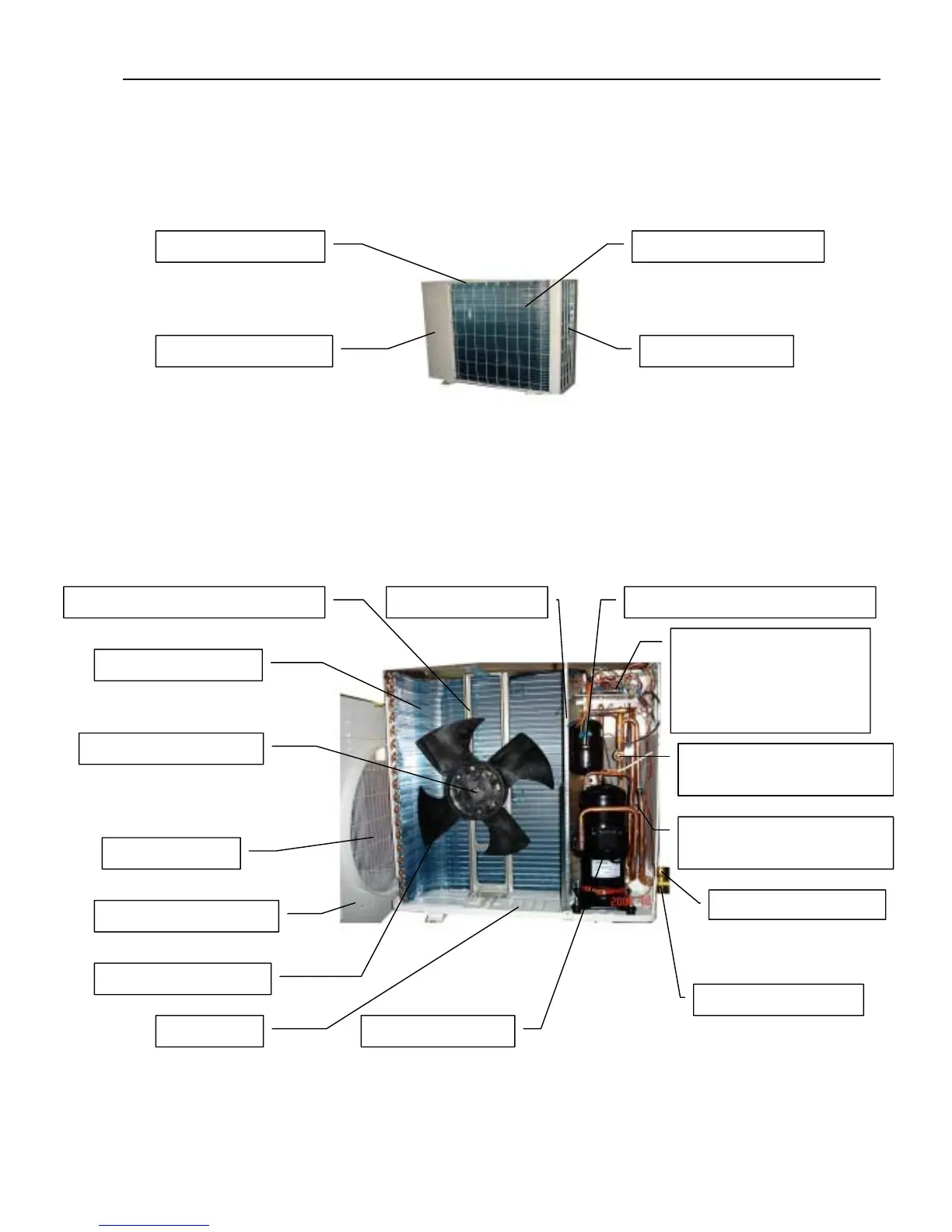

TAC---42C(H)F OUTDOOR UNIT EXPLOSION VIEW
1214590106 CONDENSER
1084590108 OUTDOOR MOTOR SUPPORTER
1170040014 OUTDOOR MOTOR
1070030009 OUTDOOR FAN
1214590111 LEFT PLATE
1214590108 FOUR-WAY VALVE
(only for COOLING&HEATING)
214590114 FRONT PLATE
1084590106 FAN GUARD
1100070001 COMPRESSOR
1120160003 LIQUID-STORE CAN
1120120010 TWO-WAY VALVE
1124590113 CAPILLARY ASSEMBLY( same
for heating&cooling AND cooling only)
1094590101 OUTDOOR PCB(for
heating & cooling)
1094590201 OUTDOOR PCB(for only
cooling)
1214590105 PARTITION
1120130012 THREE-WAY VALVE
1214590101 BASE
1214590103 RIGHT PLATE
1214590110 TOP COVER 1084590103 OUTDOOR GRILLE
