35

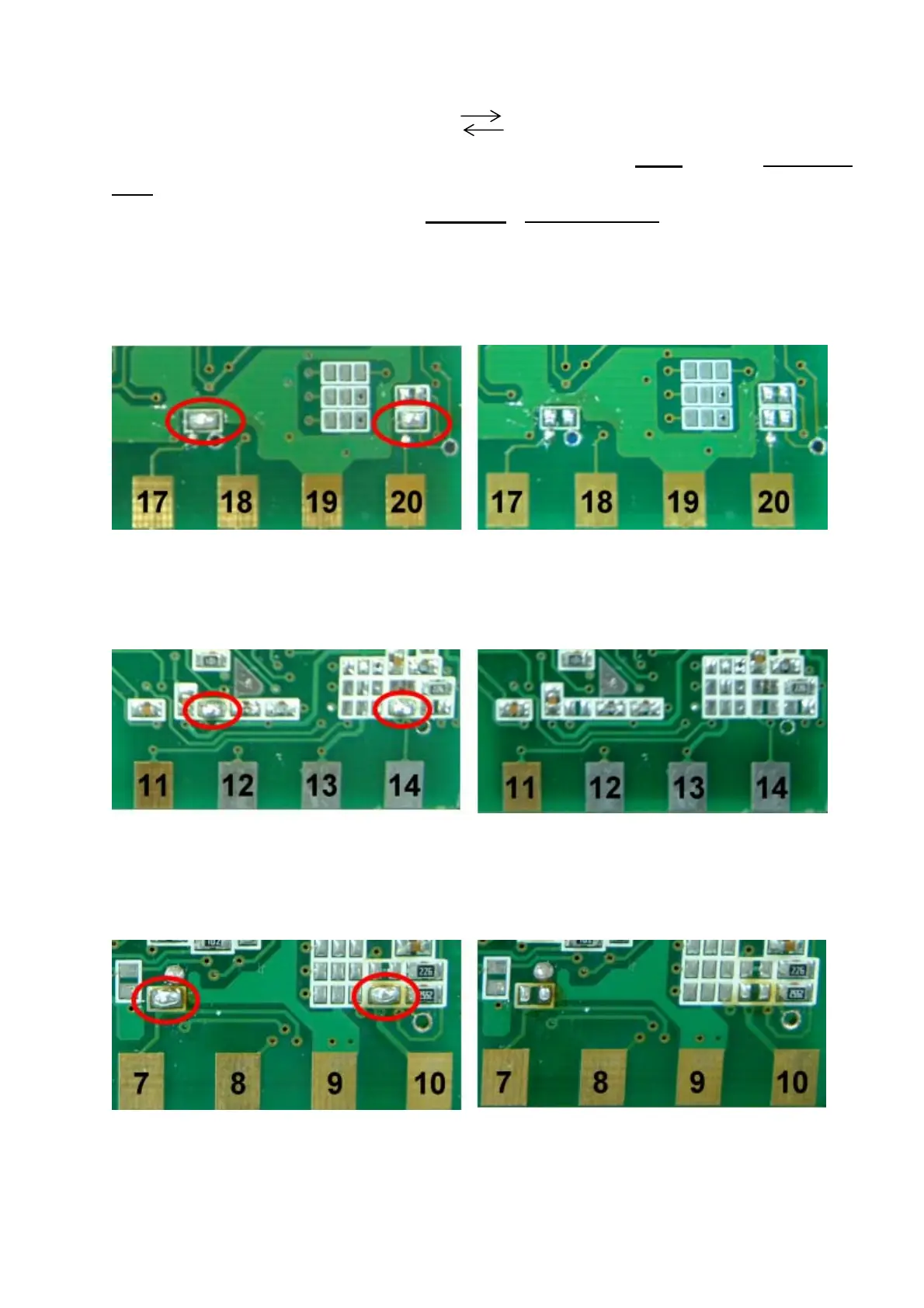

13. Modify input type (“TC” “RTD”)
If the controller needs to modify input type from TC or mV to RTD ，please make PAD
short on the back side of PC board as following diagram and change input selection(INP1).
On the contrary，modify from RTD to TC or mV
，make PAD open.
96x96,48x96,96x48(mm)
RTD : Short pads TC or mV : Open pads
72x72(mm)
RTD : Short pads TC or mV : Open pads
48x48(mm)
RTD : Short pads TC or mV : Open pads
