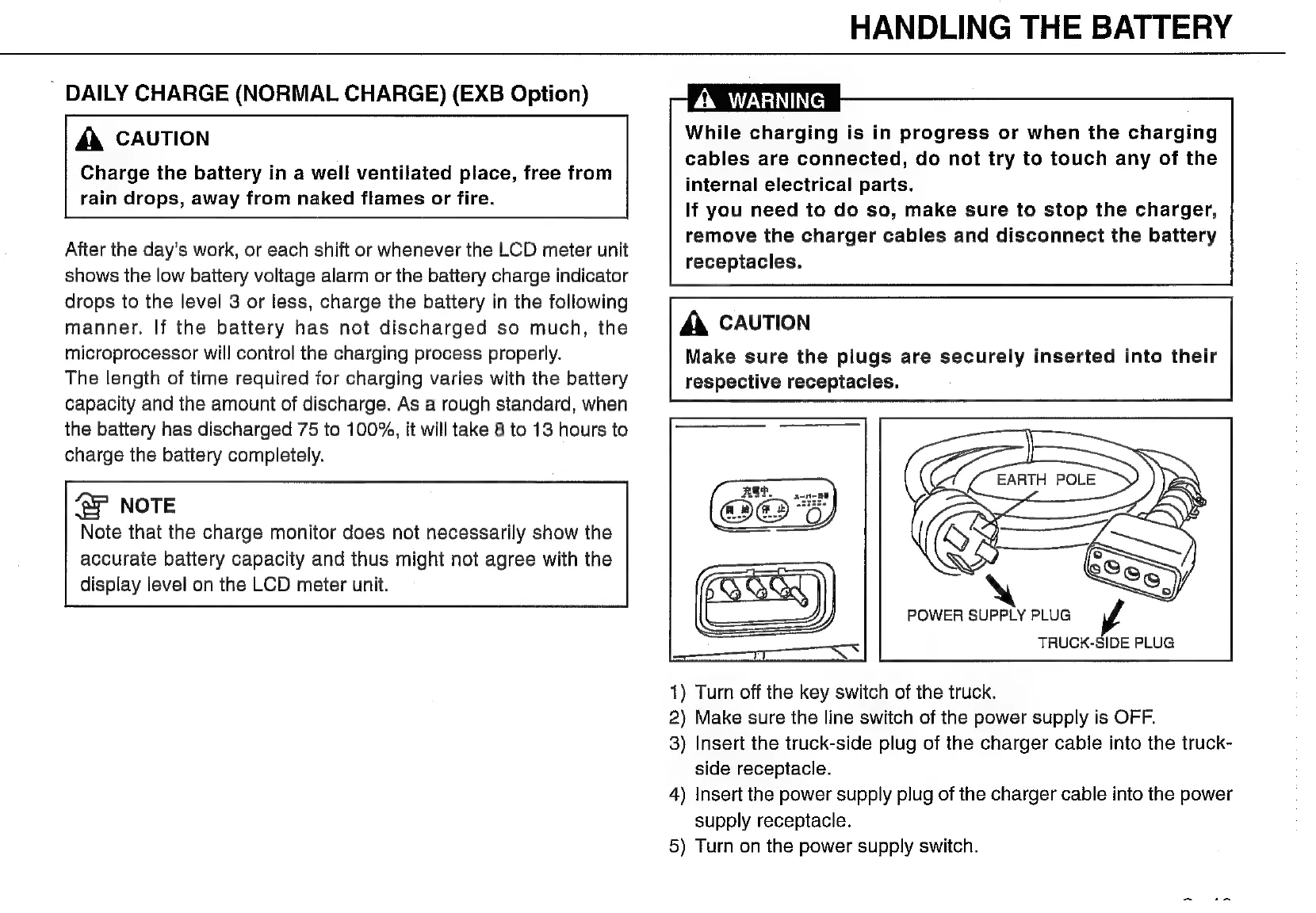

` DAILY CHARGE (NORMAL CHARGE) (EXB Option)
Á CAUTION
Charge the battery in a well ventilated place, free from
rain drops, away from naked flames or fire.
After the day’s work, or each shift or whenever the LCD meter unit
shows the low battery voltage alarm or the battery charge indicator
drops to the level 3 or less, charge the battery in the following
manner. If the battery has not discharged so much, the
microprocessor will control the charging process properly.
The length of time required for charging varies with the battery
capacity and the amount of discharge. As a rough standard, when
the battery has discharged 75 to 100%, it will take 8 to 13 hours to
charge the battery completely.
“ЖР NOTE
Note that the charge monitor does not necessarily show the
accurate battery capacity and thus might not agree with the
display level on the LCD meter unit.
HANDLING THE BATTERY
A WARNING
While charging is in progress or when the charging
cables are connected, do not try to touch any of the
internal electrical parts.
If you need to do so, make sure to stop the charger,
remove the charger cables and disconnect the battery
receptacles.
A CAUTION
Make sure the plugs are securely inserted into their
respective receptacles.
POWER SUPPLY PLUG
TRUCK-SIDE PLUG
1) Turn off the key switch of the truck.
2) Make sure the line switch of the power supply is OFF.
3) Insert the truck-side plug of the charger cable into the truck-
side receptacle.
4) Insert the power supply plug of the charger cable into the power
supply receptacle.
5) Turn on the power supply switch.
