⑧ Remove the wiring to the parking brake
switch.
⑨ Remove the brake oil reservoir.
Note: The reservoir should be removed with brake
oil in it.

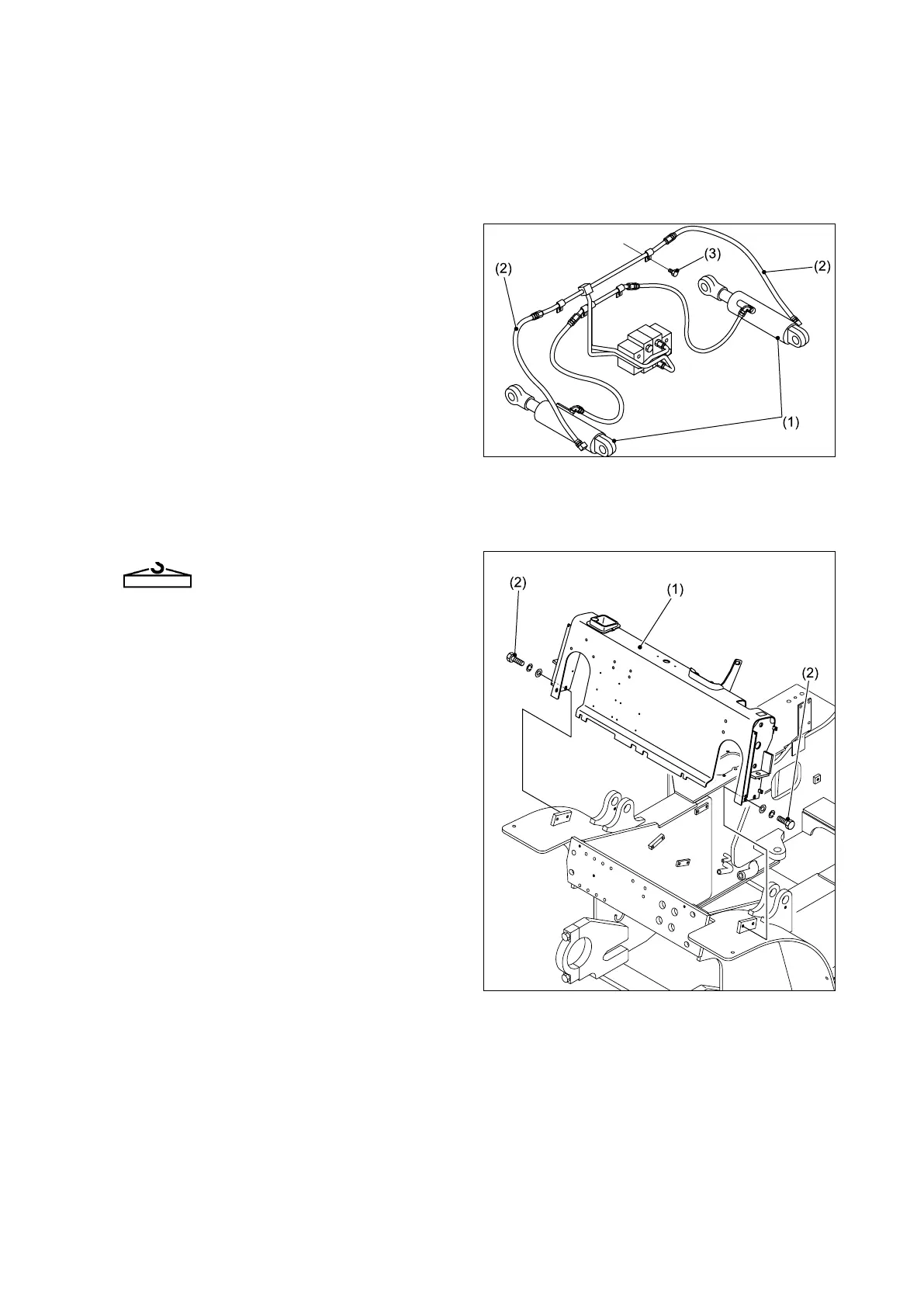

⑩ Remove the bolts (3) that secure the pipes (2)
leading to the tilt cylinders (1), to the front
guard.
⑪ Remove the four mounting-bolts (2) at the
right and left sides of the front guard (1).
⑫ Remove the front guard (1) by hoisting it.
40 kg [88 lbs]
