YOUR INDOOR STATION

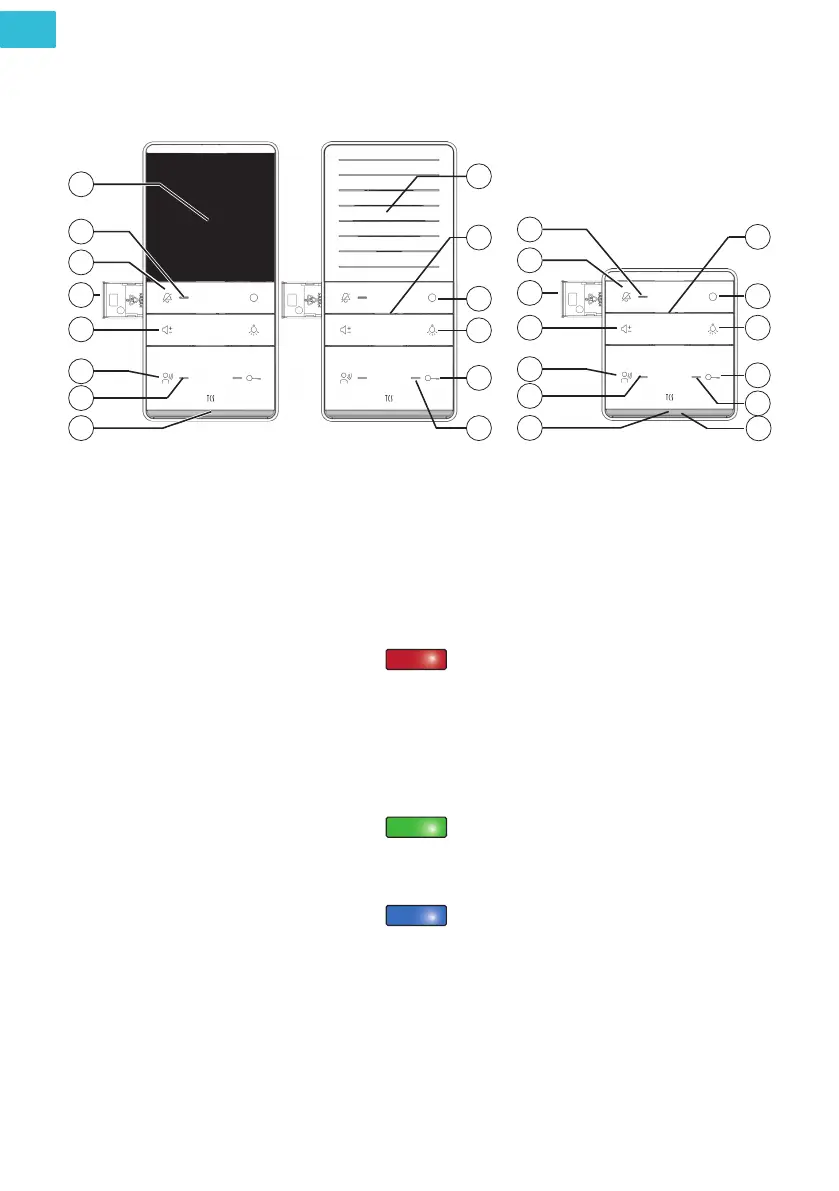

Device overview LED-Display
1 Loudspeaker
2 Microphone
3 Function Button
4 Light switch button
5 Door release button
6 Indication for door release, LED blue
7 Ambient illumination, LED blue
8 Call indication, LED green
9 Speech button
10 Volume button
11 Smart Slot
12 Call OFF button
13 Indication for ring tone mute, LED red
LED red OFF call off deactivated
ON call off activated
Flashes call diversion activated,
call off deactivated
LED turns
off in longer
periods
call diversion activated,
call off activated
LED green OFF device in standby
ON call, speaking activated
blinks 3x speech channel is busy
LED blue OFF door opener in standby
ON door release automatic is activated
ON for 3 sec door will be opened
all LEDs are on ring tone selection is activated
all LED are flashing device or TCS:BUS error
1
2
3
4
6
5
3
4
6
5
12
11
10
9
8
7
13
2
1
7
8
9
10
11
12
13
