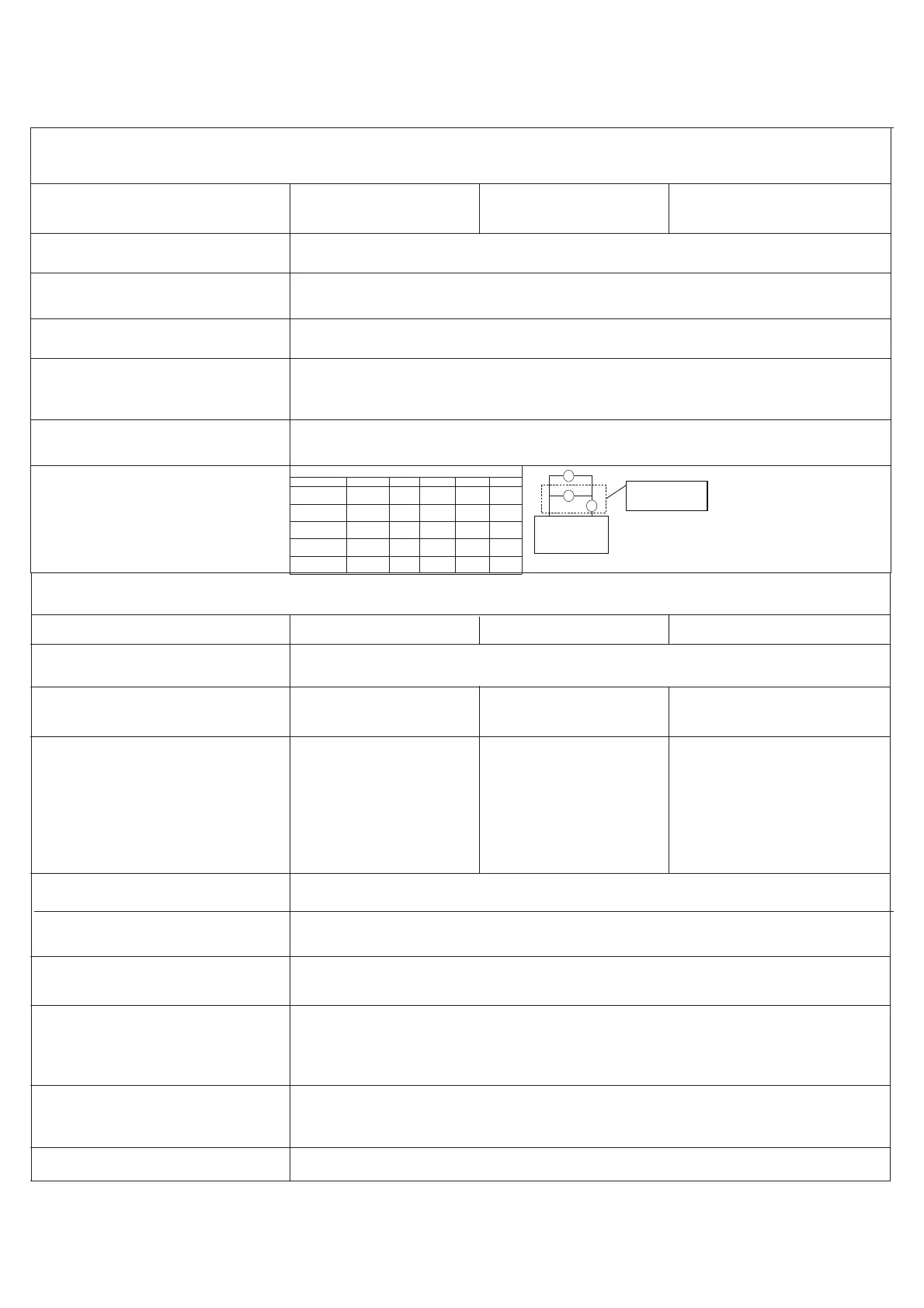

TEST PARAMETERS FOR TESTING
MODEL
K32DLM8HS K40DLM8FS K50DLM8FS
The measurement method used
IEC 62087:2012
EN 50564:2011
Test ambient temperature(℃) 27.5℃
Test voltage in V and
FREQUENCY IN HZ
230.0V,50HZ
Total harmonic distortion(THD) of
the electricity supply system
0.71%
Input terminal for the audio and
video test signals
HDMI mode The dynamic brosdcast-content video signal(as defined in
EN 62087 Ed.2,sub-clause 11.6.1)
instrumentation, set up and
circuits used for electrical
testing
ON MODE
Power consumption in watts
<28W
<57W<42W
Signal used
IEC 62087-2:2015 video_content_BD_50 ,the duration of the video signal
is tenminutes.
Steps followed for a stable
consumption
27.6W 41.9W 56.7W
in addition for televisions with a
forced menu, the ratio of the
peak luminance of the homemode
and the peak luminance
of the brightest on-mode
condition provided by the
television, expressed in per cent
70:100
67:100
68:100
OFF MODE
Off-mode consumption television
with an easily switch
<0.3W
Passive stand-by consumption of
television
<0.5W
Sequence of events to reach
the mode where tv automatically
change modes
After no more than 4 hours in on mode following the last user interaction
and/ or a channel change, the television will be automatically switched
from on mode to standby-mode.
Automatic power down
After no more than 4 hours in on mode following the last user interaction
and/ or a channel change, the television will be automatically switched
from on mode to standby-mode.
Hazardous substances Pb<1000 mg/kg; Hg<1000 mg/kg
UUT(Under Test)
-
V
A
AC power meter
(YOKOGAWA WT210)
Fig.1 Test circuit
Test Equipments List
Equipment Name Manufacturer Model # Reg. No. Cal. Date Next Cal.
2017-06-11 2018-06-10
Luminance Meter
KONICA
MINOLTA
LS-100
Temperature
Humidity Recorder
KTJ TA218 2017-06-15
Stop Watch TIANFU
Power Meter
YOKOGAWA
WT310
EST015-
008Y
AC Power Source HXL HXL-1105
EST229-
001
EST028-
002
2017-06-16
2017-06-15
2017-06-15
2018-06-15
2018-06-14
2018-06-14
2018-06-14
PC396
EST020-
001
EST019-
001
