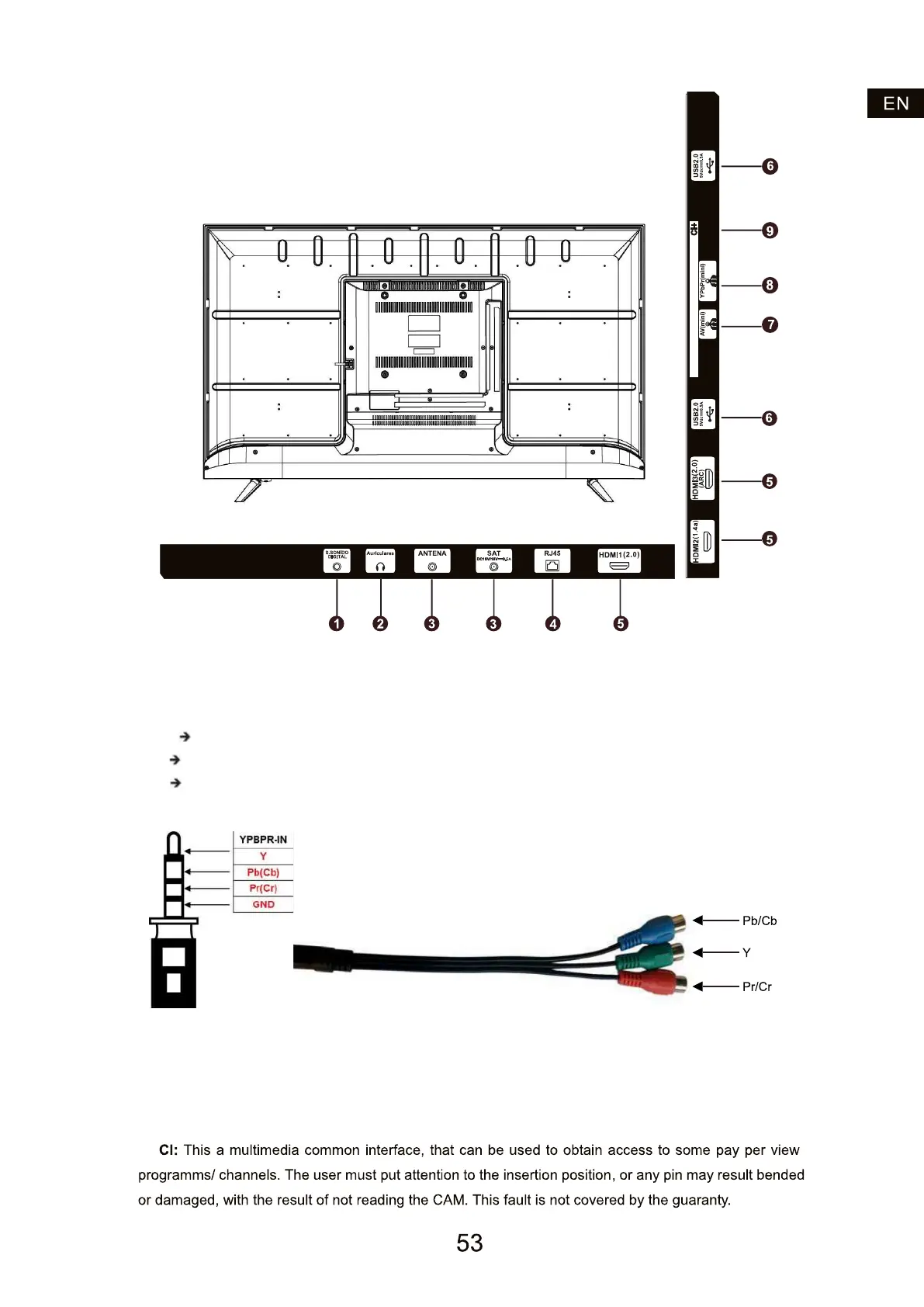

8 . YPbPr mini: This is an input video port, useful to connect any device using the three component
video signal. The kind of signal in this connector is as follows:
Green Y= Luma + sync
Blue Pb= Difference of signal between BLUE and Luma
Rojo Pr=Differenceof signal between RED andLuma.
In the case that you need to use this port, you shall have the appropiate cable connector male-male
RCA, and connect them to the female RCA adaptor. The sound from this device shall be entered to tv
using the RED AND WHITE input port, in MINI AV Jack.
9.
