1-18 System 3
RZ5D BioAmp Processor
The RZ5D is UL compliant, see the
RZ5/RZ5D/RZ6 Operations Manual
for power
and safety information.
SoftwareControl
TDT Synapse software controls the RZ5D and provides users a high level interface
for device configuration. Device programming is implemented with circuit files
developed using TDT's RP Visual Design Studio (RPvdsEx). Circuits are loaded to
the processor through TDT run-time applications or custom applications. This manual
includes device specific information needed to design circuit. For circuit design
techniques and a complete reference of the RPvdsEx circuit components, see the
RPvdsEx Manual
.
RZ5DArchitecture
The RZ5D processor utilizes a multi-bus architecture and offers four dedicated, data
buses for fast, efficient data handling. While the operation of the system architecture
is largely transparent to the user, a general understanding is important when
developing circuits in RPvdsEx.

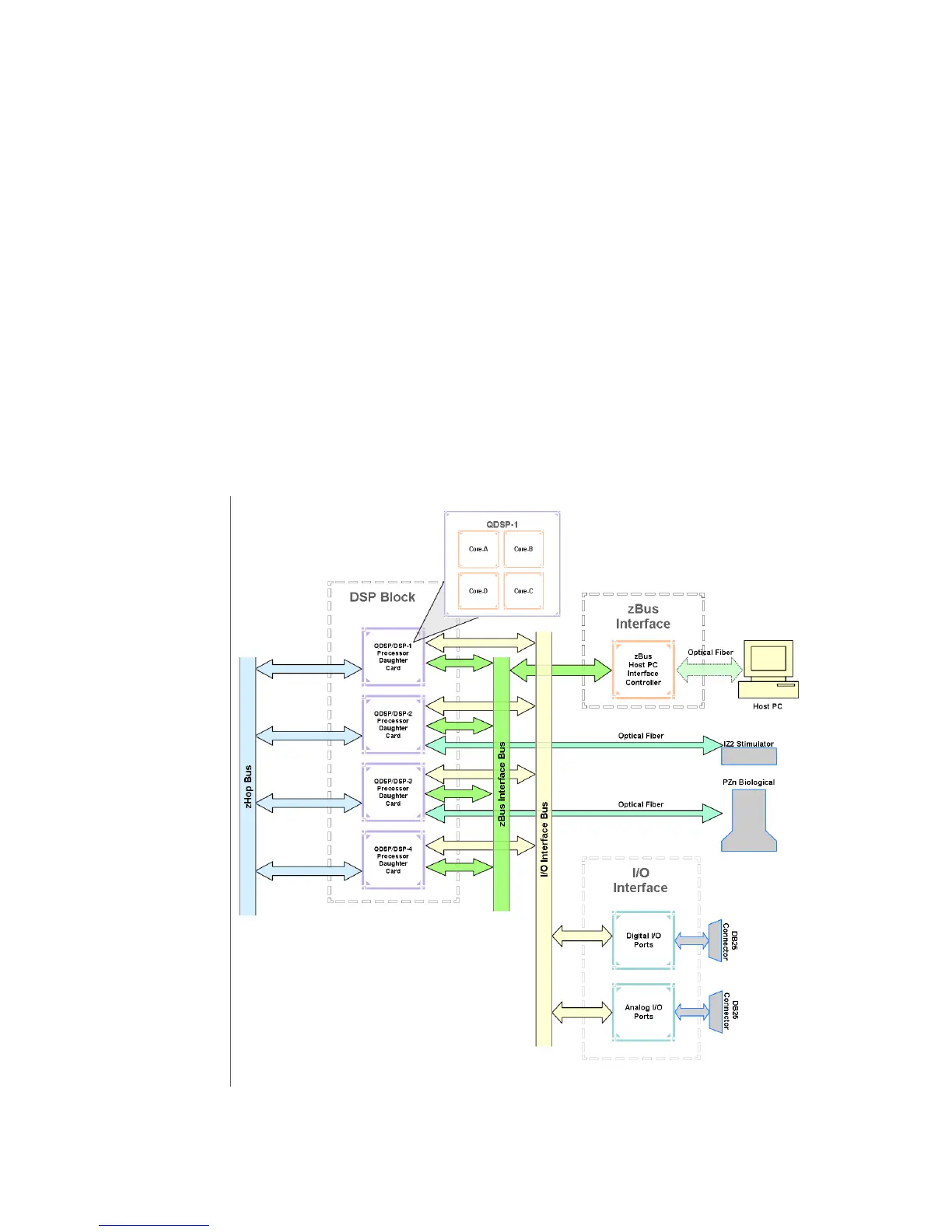

RZ5D Multi‐DSP ArchitectureFu nc tiona lDiagram
To Next Page
