zDrive Microdrives with ZIF-Clip® Microwire Arrays
zDriveMicrodriveswithZIF‐Clip®
MicrowireArrays
The zDrive microdrive combines lab-informed design with patented ZIF-Clip® easy
and secure microwire connection. Lightweight and compact, the microdrive comes
pre-assembled with electrode and ready for surgical implantation. Electrodes can be
advanced and retracted through up to 10 mm of neural tissue in 50 – 100 μm
increments. A protective cap secures the Microdrive between recordings. Two ports
for saline and antibiotic lavage provide access for cleaning. For more information on
using the zDrive, see “Procedure for zDrive Implantation and Maintenance” on
page 13-17.
zDriveMicrodriveSpecifications
Total size is 19mm diameter x 19 mm diameter (30 mm height w/protective cap in

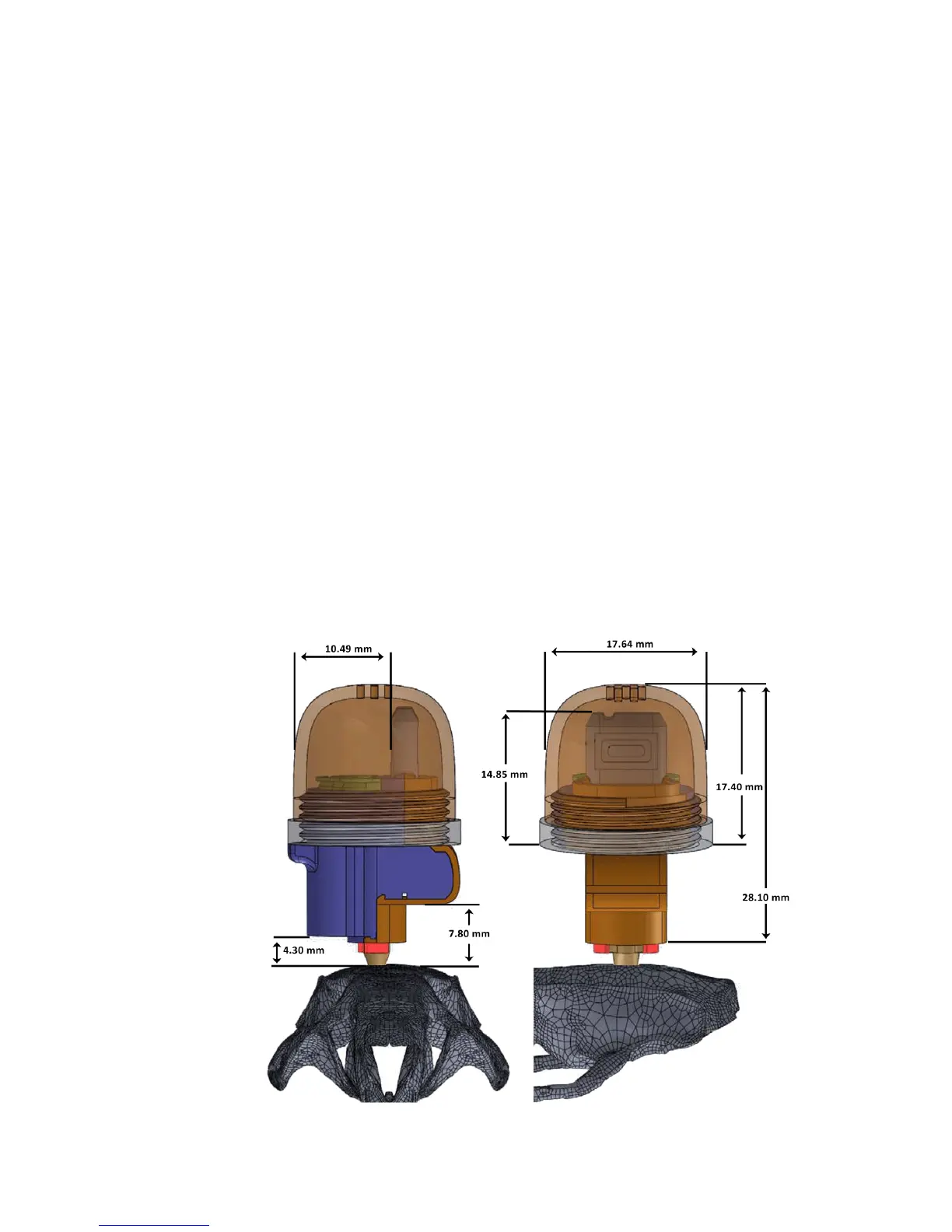

place). The diagram below provides more detailed dimensions. See “ZIF-Clip®
Based Microwire Arrays” on page 13-3 for array use guide and specifications.
