ECoG Headstages
ECoGHeadstages
CB16‐PMT‐16ChannelECoGHeadstage
The 16 Channel ECoG headstages are recommended for 13 gauge tunneling needle/
inline tail probes with impedance ranging from 20 kOhm to 5 Mohm. The headstage
includes a Touch Proof connector for optional reference input and a locking bar for
secure connection of probe to headstage.
The CB16-PMT is available as a passive or active headstage.

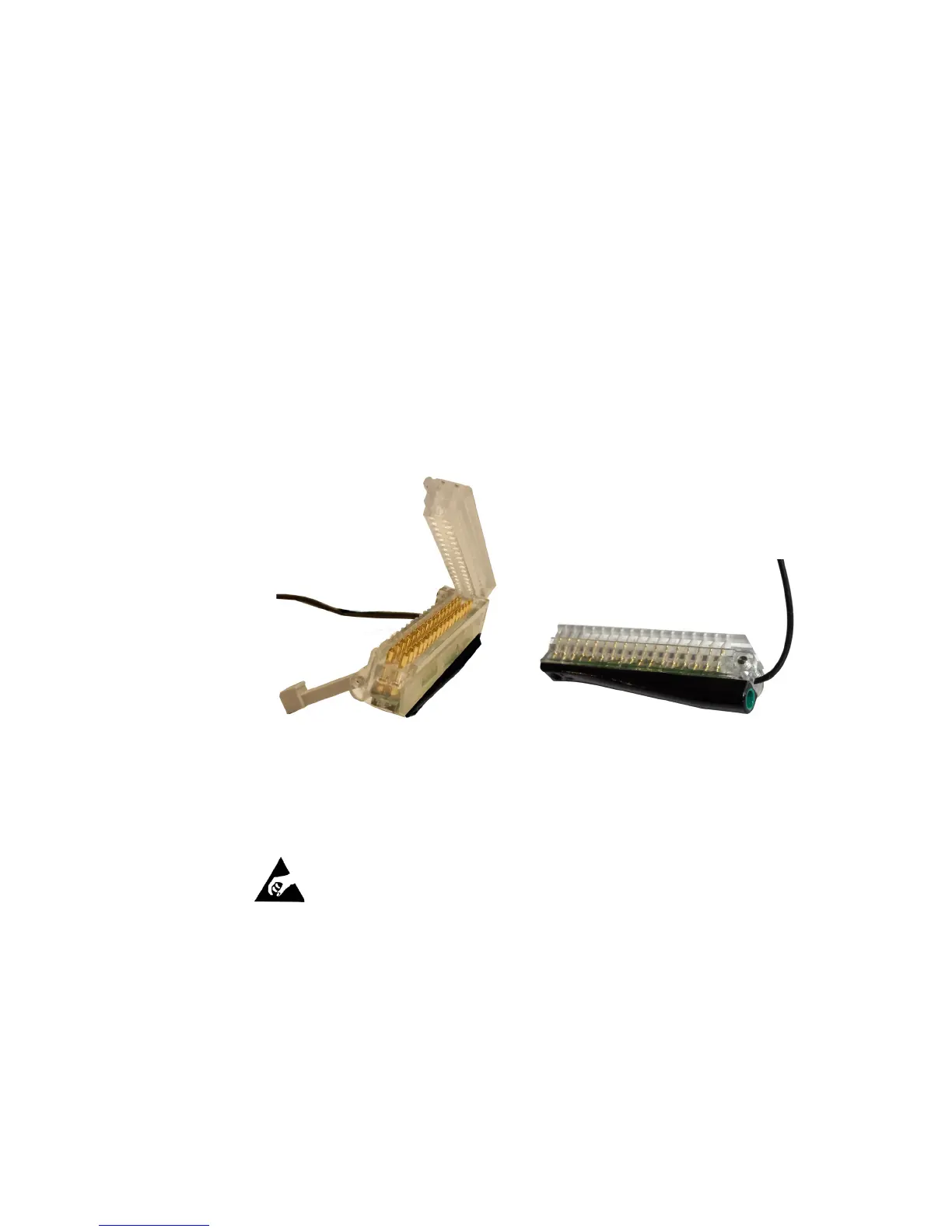

CB16–PMTConnector‐Open/Closed,ViewfromBottom
Part Numbers:
CB16–PMT - 16 Channel Active Headstage for Z-Series (PZ) PreAmps
CB16P–PMT - 16 Channel Passive Headstage for Z-Series (PZ) PreAmps
The headstage has sensitive electronics. Always ground yourself before
handling.
HeadstageVoltageRange
When using a TDT preamplifier the voltage input range of the preamplifier is
typically lower than the headstage and must be considered the effective range
of the system. Check the specifications of your amplifier for voltage range. Also
keep in mind that the range of the headstage varies depending on the power supply
provided by the preamplifier. TDT preamplifiers supply +/- 1.5 V, but third party
preamplifiers may vary. TDT recommends using preamplifiers which deliver +/- 2.5
