10-44System 3
Chronic (Non-ZIF) Headstages
TechnicalSpecifications

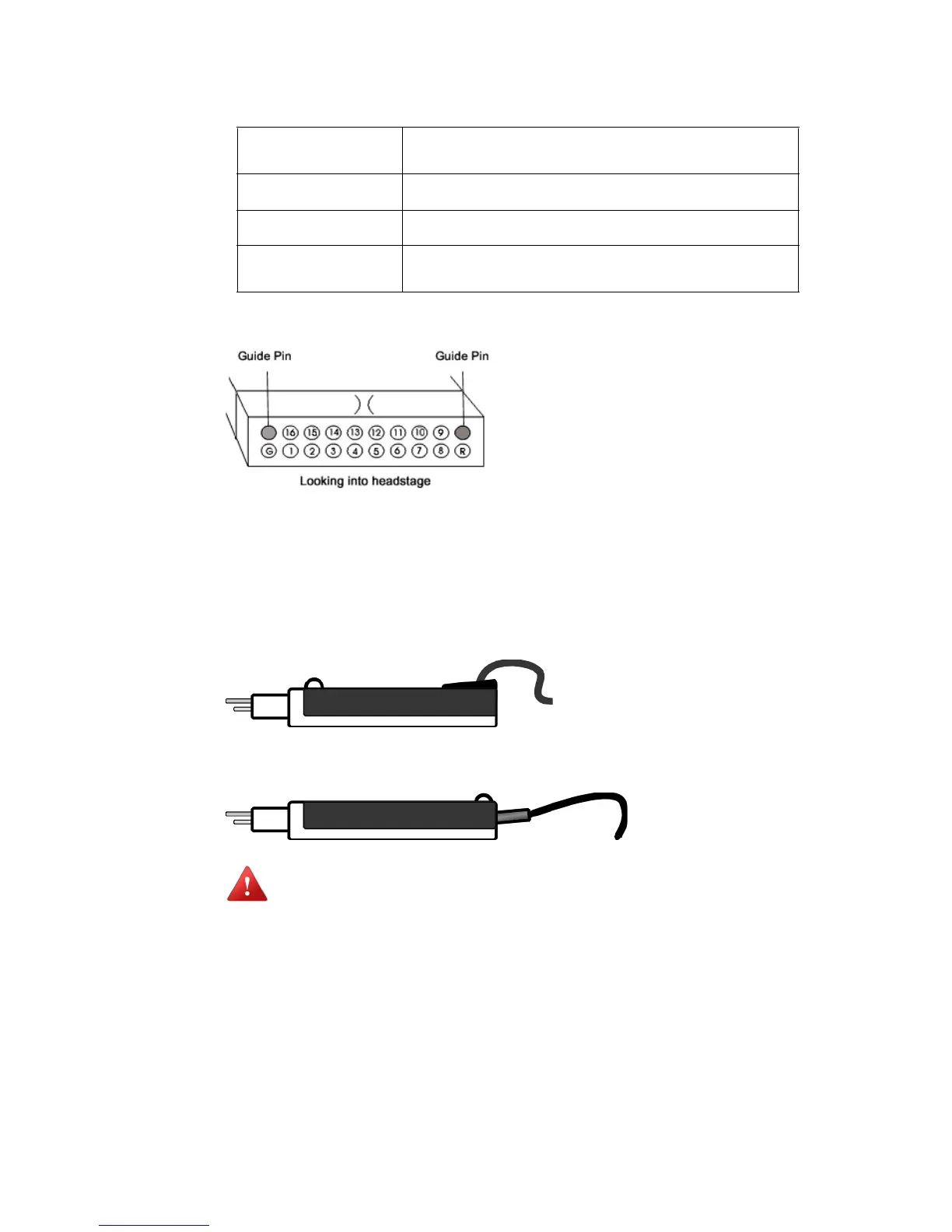

Pinout
The numbers on the pinout diagram above show the channel connections to the
amplifier. By default, the headstage inputs are single ended, with Ref and GND tied
together. A jumper is provided to give the user the option of making the inputs
differential.
To make the inputs differential, cut the jumper pictured below.
RA16CH:
LP16CH/LP16CH-ZNF:
WARNING! When using multiple headstages ensure that all ground pins are
connected to a single common node. See “Headstage Connection Guide” on
page 6-93, for more information.
Input Referred Noise
rms 3 μV bandwidth 300-3000 Hz
rms 6 μV bandwidth 30-8000 Hz
Headstage Gain
Unity (1x)
Input Impedance
10
14
Ohms
Connector
Omnetics 18 socket female dual row nano connector
(.025"/.64mm) with 2 guide posts
