6-80 System 3
PZ4 Digital Headstage Manifold
HardwareSet‐up
The PZ4 can connect to any RZ with a PZ port. This includes an RZ2, any RZ

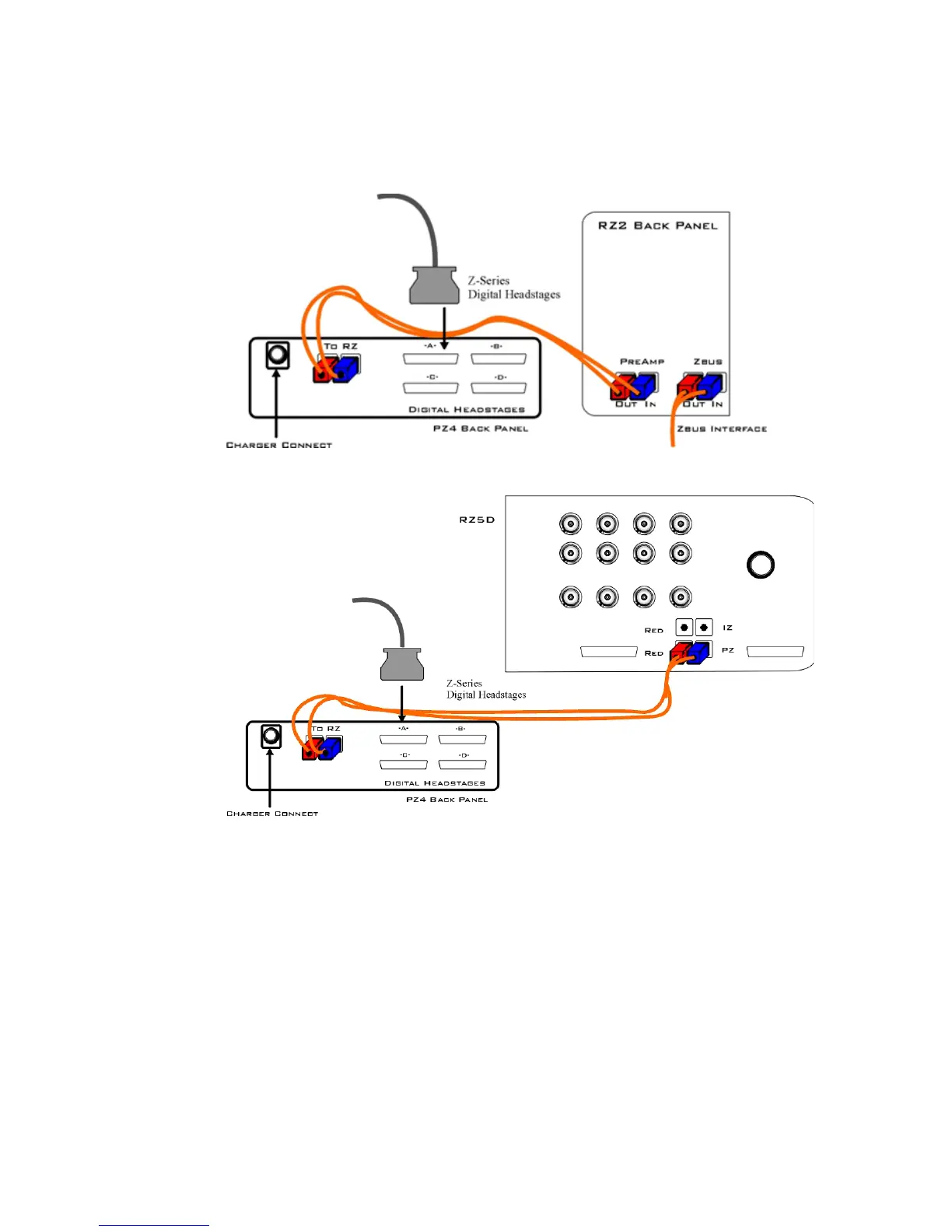

with an RZDSP-P card or any RZ5D. The diagram below illustrates the connections
necessary for PZ4 manifold operation for an RZ2 and an RZ5D.
One or more ZCD headstage can be connected to the input connectors on the PZ4
back panel.
Only TDT digital headstages can be connected to the PZ4. No other connections
should be attempted.
A 5-meter paired fiber optic cable is included to connect the preamplifier to the base
station. The connectors are color coded and keyed to ensure proper connections.
The PZ4 battery charger connects to the round female connector located on the back
panel of the PZ4 preamplifier. The battery will only charge when the power switch is
in the CHG position.
