PHONE: (213) 726-0303
TEAC HONGKONG LIMITED
PRINTED IN JAPAN 0776. SHO5. D-02427B
Inputs
Outputs
Power requirements

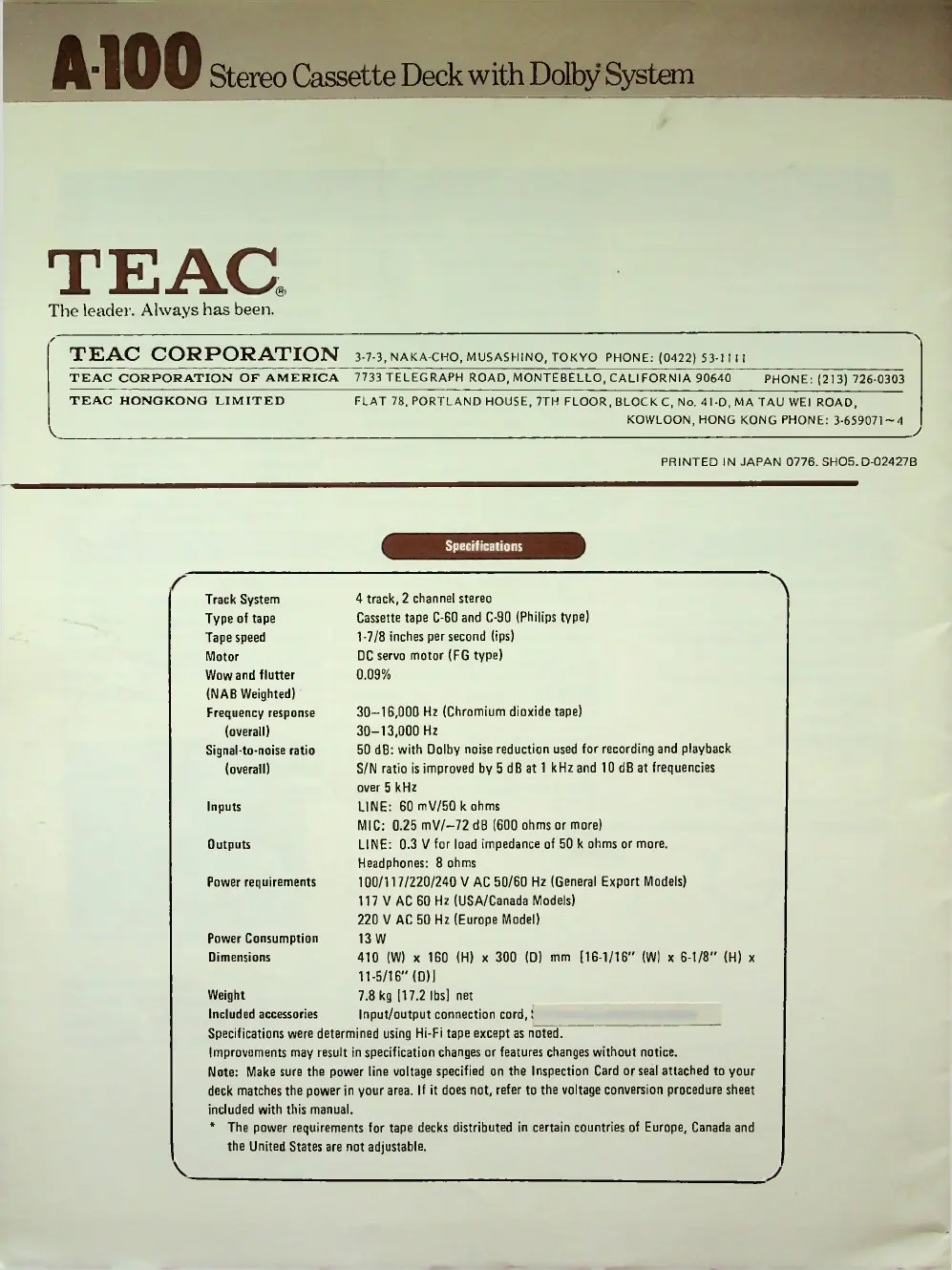

Specifications
TEAC CORPORATION
TEAC CORPORATION OF AMERICA
Power Consumption
Dimensions
Weight
Included accessories
Track System
Type of tape
Tape speed
Motor
Wow and flutter
(NAB Weighted)
Frequency response
(overall)
Signal-to-noise ratio
(overall)
4 track, 2 channel stereo
Cassette tape C-60 and C-90 (Philips type)
1-7/8 inches per second (ips)
DC servo motor (FG type)
0.09%
3-7-3, NAKA-CHO, MUSASHINO, TOKYO PHONE: (0422) 53-1111
7733 TELEGRAPH ROAD, MONTEBELLO, CALIFORNIA 90640
FLAT 78, PORTLAND HOUSE, 7TH FLOOR, BLOCK C, No. 4 1-D, MA TAU WEI ROAD,
KOWLOON, HONG KONG PHONE: 3-659071 -4
TEAC.
The leader. Always has been.
30-16,000 Hz (Chromium dioxide tape)
30-13,000 Hz
50 dB : with Dolby noise reduction used for recording and playback
S/N ratio is improved by 5 dB at 1 kHz and 10 dB at frequencies
over 5 kHz
LINE: 60 mV/50 k ohms
MIC: 0.25 mV/-72 dB (600 ohms or more)
LINE: 0.3 V for load impedance of 50 k ohms or more.
Headphones: 8 ohms
100/117/220/240 VAC 50/60 Hz (General Export Models)
117 V AC 60 Hz (USA/Canada Models)
220 V AC 50 Hz (Europe Model)
13 W
410 (W) x 160 (H)
11-5/16" (DU
7.8 kg [17.2 lbs] net
Input/output connection cord, !
Specifications were determined using Hi-Fi tape except as noted.
Improvements may result in specification changes or features changes without notice.
Note: Make sure the power line voltage specified on the Inspection Card or seal attached to your
deck matches the power in your area. If it does not, refer to the voltage conversion procedure sheet
included with this manual.
* The power requirements for tape decks distributed in certain countries of Europe, Canada and
the United States are not adjustable.
x 6-1/8" (H) x x 300 (D) mm [16-1/16" (W)
AlOO Stereo Cassette Deck with Dolby System
