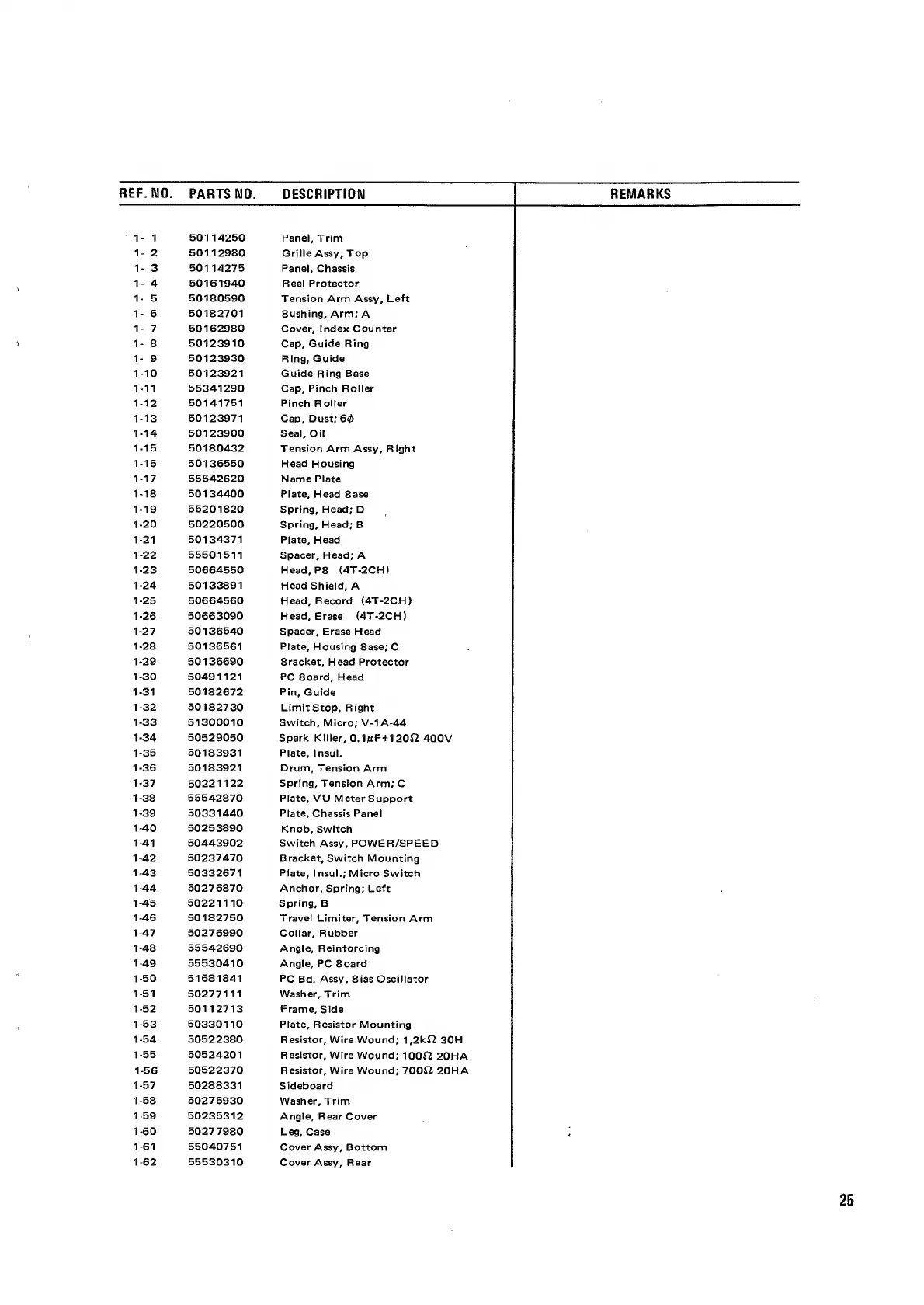

Teac A-2300SD - Page 25

ref.no.
PARTS NO. DESCRIPTION REMARKS
1- 1 50114250 Panel, Trim
1- 2 50112980 Grille Assy, Top
1- 3 50114275
Panel, Chassis
1- 4 5016T940
Reel Protector
1- 5 50180590
Tension Arm Assy, Left
1- 6 50182701 Bushing, Arm; A
1- 7 50162980
Cover, Index Counter
1- 8 50123910 Cap, Guide Ring
1- 9 50123930
Ring, Guide
1-10 50123921 Guide Ring Base
1-11 55341290
Cap, Pinch Roller
1-12
50141751
Pinch Roller
1-13
50123971
Cap, Dust; 60 ^
1-14
50123900 Seal, Oil 1
1-15 50180432
Tension Arm Assy, Right
1-16
50136550
Head Housing
1-17
55542620 Name Plate
1-18 50134400
Plate, Head Base
1-19 55201820 Spring, Head; D
1-20 50220500 Spring, Head; B
1-21
50134371
Plate, Head
1-22
55501511
Spacer, Head; A
1-23
50664550
Head, PB (4T-2CH)
1-24
50133891
Head Shield, A
1-25 50664560
Head, Record (4T-2CH)
1-26 50663090 Head, Erase (4T-2CH)
1-27
50136540 Spacer, Erase Head
1-28
50136561 Plate, Housing Base; C
1-29
50136690 Bracket, Head Protector
i
1
1-30 50491121
PC Board, Head
1-31 50182672
Pin, Guide
1-32 50182730
Limit Stop, Right
1-33 51300010
Switch, Micro; V-1A-44
1-34 50529050
Spark Kiiler, 0.lMF-H20n 400V
1-35
50183931 Plate, Insul.
1-36 50183921
Drum, Tension Arm
1-37 50221122 Spring, Tension Arm; C
1-38 55542870 Plate, VU Meter Support
1-39 50331440
Plate, Chassis Panel
1-40 50253890
Knob, Switch
1-41
50443902 Switch Assy, POWER/SPEED
1-42 50237470 Bracket, Switch Mounting
1-43
50332671
Plate, Insul.; Micro Switch
1-44 50276870
Anchor, Spring; Left
1-45 50221110 Spring, B
1-46 50182750
Travel Limiter, Tension Arm
1-47
50276990 Collar, Rubber
1-48 55542690
Angle, Reinforcing
1-49 55530410
Angle, PC Board
1-50 51681841
PC Bd. Assy, Bias Oscillator
1-51
50277111
Washer, Trim
1-52 50112713
Frame, Side
1-53 50330110
Plate, Resistor Mounting
1-54 50522380
Resistor, Wire Wound; 1,2ki2 30H
1-55
50524201
Resistor, Wire Wound; lOOH 20HA
1-56
50522370
Resistor, Wire Wound; 700n 20HA
1-57 50288331
Sideboard
1-58 50276930
Washer, Trim
1 59
50235312 Angle, Rear Cover
1-60
50277980 Leg, Case
1-61
55040751
Cover Assy, Bottom
1-62 55530310
Cover Assy, Rear
