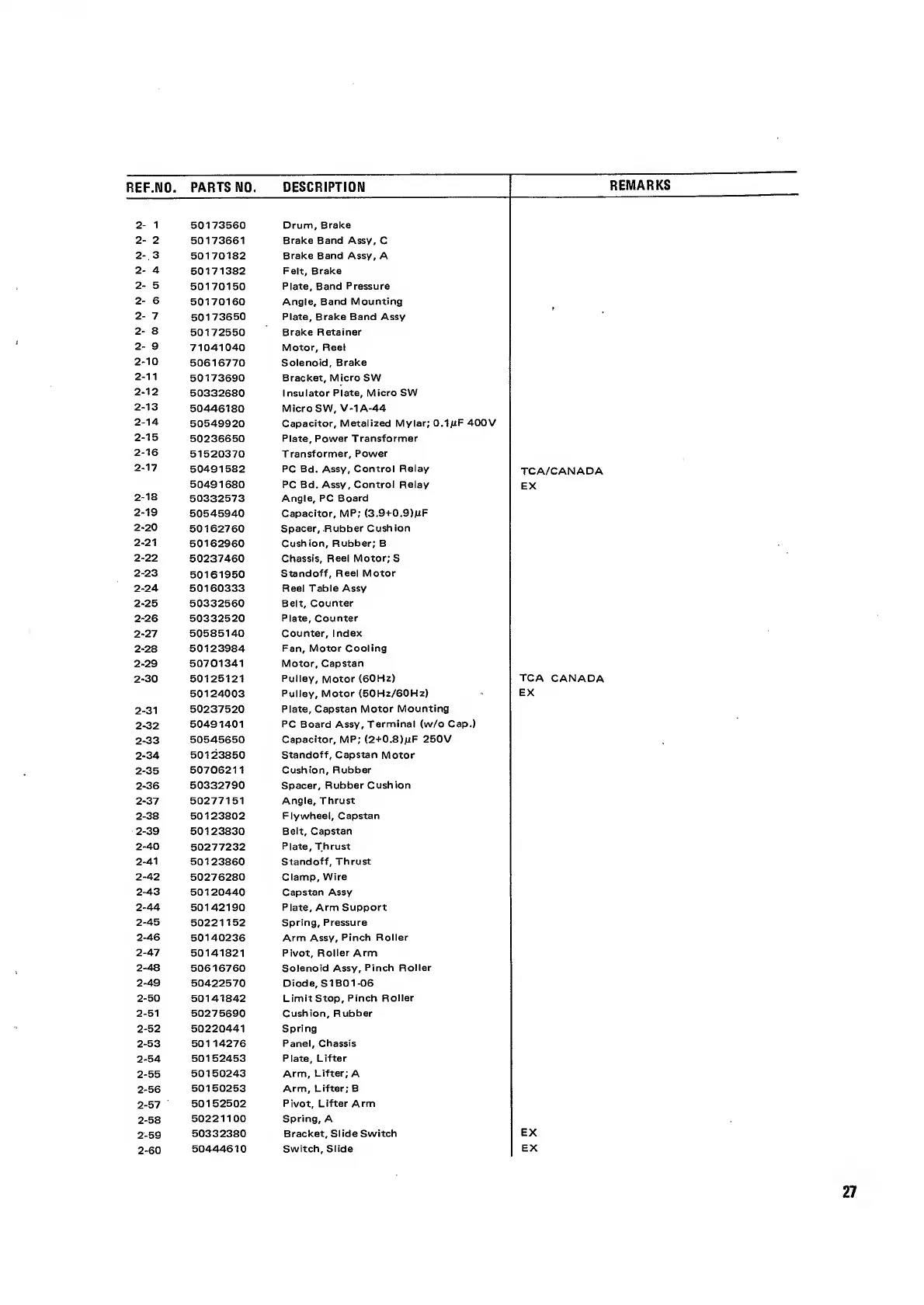

Teac A-2300SD - Page 27

ref.no. PARTS NO.
DESCRIPTION
REMARKS
2 - 1 50173560 Drum, Brake
2 - 2
50173661
Brake Band Assy, C
2- 3 50170182
Brake Band Assy, A
2- 4
50171382 Felt, Brake
2- 5
50170150
Plate, Band Pressure
2 - 6
50170160
Angle, Band Mounting
2- 7
50173650 Plate, Brake Band Assy
2 - 8
50172550
Brake Retainer
2 - 9
71041040
Motor, Reel
2-10
50616770
Solenoid, Brake
2-11
50173690 Bracket, Micro SW
2-12
50332680
insulator Plate, Micro SW
2-13
50446180
Micro SW, V-1A-44
2-14
50549920
Capacitor, Metalized Mylar; OAfiF 400V
2-15
50236650
Plate, Power Transformer
2-16
51520370
Transformer, Power
2-17
50491582
PC Bd. Assy, Control Relay
TCA/CANADA
50491680 PC Bd. Assy, Control Relay
EX
2-18
50332573
Angle, PC Board
2-19
50545940
Capacitor, MP; (3.9+0.9)/iF
2-20
50162760
Spacer, Rubber Cushion
2-21
50162960
Cushion, Rubber; B
■
2-22
50237460
Chassis, Reel Motor; S
2-23
50161950
Standoff, Reel Motor
2-24
50160333
Reel Table Assy
2-25
50332560 Belt, Counter
2-26
50332520 Plate, Counter
2-27
50585140 Counter, Index
2-28
50123984
Fan, Motor Cooling
2-29
50701341 Motor, Capstan
2-30 50125121
Pulley, Motor ( 6 OH 2 ) TCA CANADA
50124003
Pulley, Motor (50Hz/60Hz)
EX
2-31
50237520
Plate, Capstan Motor Mounting
2-32
50491401
PC Board Assy, Termlnal (w/o Cap.)
2-33
50545650 Capacitor, MP; (2+0,8 )mF 250V
2-34
50123850
Standoff, Capstan Motor
2-35
50706211 Cushion, Rubber
2-36
50332790
Spacer, Rubber Cushion
2-37
50277151 Angle, Thrust
2-38 50123802
Flywheel, Capstan
2-39 50123830
Belt, Capstan
2-40
50277232
Plate, Thrust
2-41
50123860
Standoff, Thrust
2-42 50276280 Clamp, Wire
2-43
50120440
Capstan Assy
2-44
50142190 Plate, Arm Support
2-45
50221152
Spring, Pressure
2-46
50140236
Arm Assy, Pinch Roller
2-47
50141821 Pivot, Roller Arm
2-48
50616760
Solenoid Assy, Pinch Roller
2-49
50422570
Diode, S1B01-06
2-50
50141842
Limit Stop, Pinch Roller
2-51
50275690
Cushion, Rubber
2-52
50220441 Spring
2-53
50114276
Panel, Chassis
2-54
50152453 Plate, Lifter
2-55
50150243
Arm, Lifter; A
2-56
50150253
Arm, Lifter; B
2-57
50152502
Pivot, Lifter Arm
2-58
50221100 Spring, A
2-59
50332380
Bracket, Slide Switch
EX
2-60
50444610
Switch, Slide
EX
