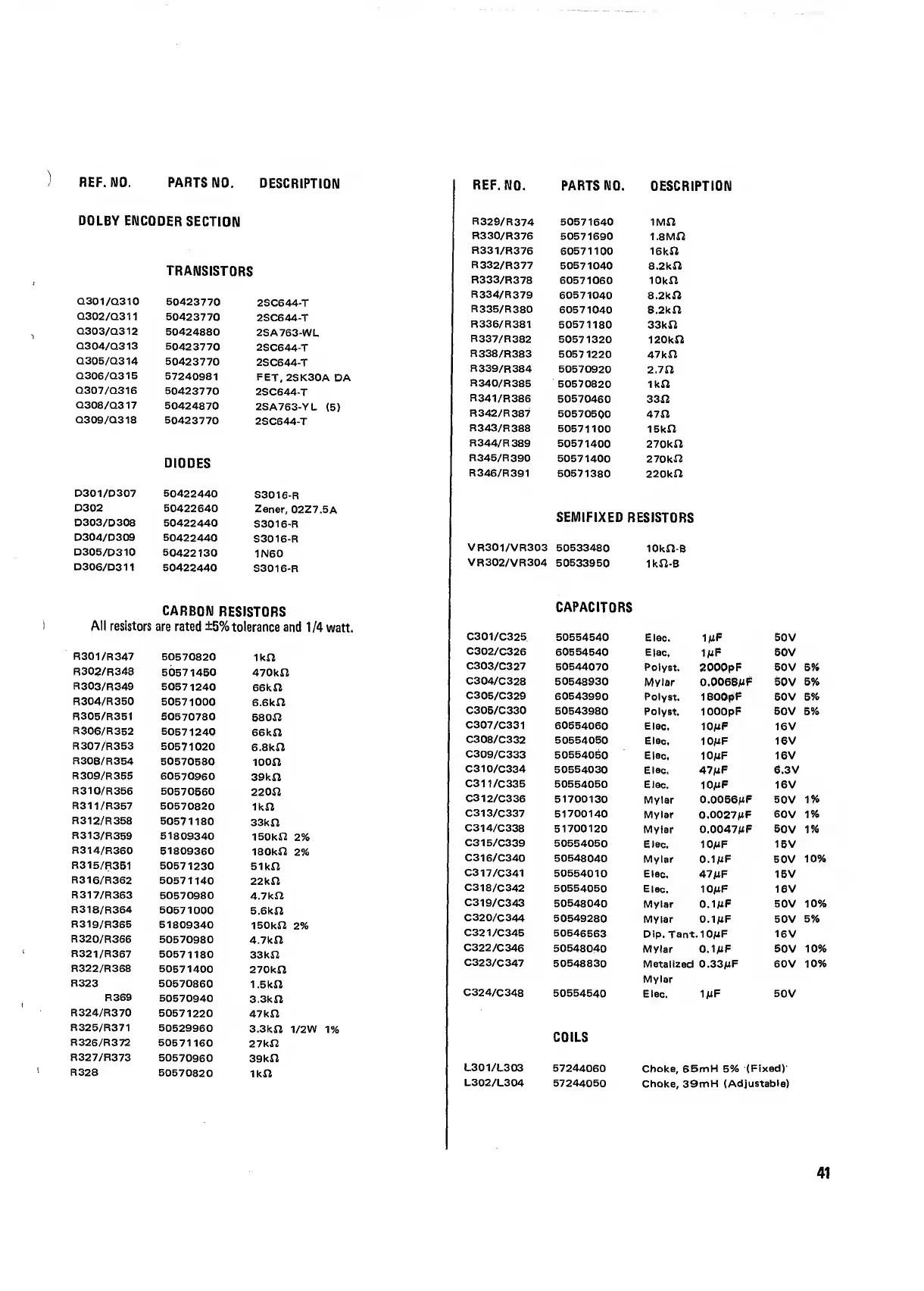

Teac A-2300SD - Page 41

ref.no.
PARTS NO. DESCRIPTION
REF. NO.
PARTS NO. DESCRIPTION
)
DOLBY ENCODER SECTION
TRANSISTORS
Q301/Q310
50423770
2SC644-T
Q302/Q311
50423770
2SC644-T
Q303/Q312
50424880
2SA763-WL
Q304/Q313
50423770
2SC644-T
Q305/Q314
50423770
2SC644-T
Q306/Q315
57240981
FET, 2SK30A DA
Q307/Q316
50423770
2SC644-T
Q308/Q317
50424870
2SA763-YL (5)
Q309/Q318
50423770
2SC644-T
DIODES
D301/D307
50422440
S3016-R
D302
50422640
Zener, 02Z7.5A
D303/D308
50422440
S3016-R
D304/D309
50422440
S3016-R
D305/D310
50422130
1N60
D306/D311
50422440
S3016-R
CARBON RESISTORS
All resistors are rated ±5% tolerance and 1/4 watt.
R301/R347
50570820
IkfJ
R302/R348
50571460
470kn
R303/R349
50571240
56kn
R304/R350
50571000
5.6kn
R305/R351
50570780
680a
R306/R352
50571240
56kn
R307/R353
50571020
6.8kn
R308/R354
50570580
loon
R309/R355 50570960
39kn
R310/R356
50570660
220n
R311/R357
50570820
ikn
R312/R358
50571180
33kn
R313/R359 51809340
150kn 2%
R314/R360
51809360
180kn 2%
R315/R361
50571230
51kn
R316/R362 50571140
22 kn
R317/R363 50570980
4.7kn
R318/R364
50571000 5.6kn
R319/R365
51809340
150kn 2%
R320/R366
50570980
A.7kSl
R321/R367
50571180
33kn
R322/R368
50571400
270kn
R323
50570860
1.5kn
R369
50570940
3.3kn
R324/R370
50571220
47kn
R325/R371
50529960
3.3kn 1/2W 1%
R326/R372
50571160
27kX2
R327/R373
50570960
39kn
R328
50570820
IkO
R329/R374 50571640 IMO
R330/R375 50571590 I.BM^
R331/R376 50571100 IBkfl
R332/R377 50571040 8.2kn
R333/R378 50571060 lOkO
R334/R379 50571040 8.2kn
R335/R380 50571040 8.2kn
R336/R381 50571180 BSkO
R337/R382 50571320 120kn
R338/R383 50571220 47kn
R339/R384 50570920 2.70
R340/R385 50570820 IkO
R341/R386 50570460 330
R342/R387 50570500 470
R343/R388 50571100 15kO
R344/R389 50571400 270kO
R345/R390 50571400 270kO
R346/R391 50571380 220kO
SEMIFIXED RESISTDRS
VR301/VR303 50533480 lOkO-B
VR302/VR304 50533950 IkO-B
CAPACITORS
C301/C325 50554540
Elec.
IMF
BOV
C302/C326
50554540
Elec.
IjuF
50V
C303/C327
50544070
Polyst.
2000pF 60V 594
C304/C328
50548930
Mylar 0.0068MF
BOV 5%
C305/C329
50543990
Polyst.
ISOOpF
BOV 594
C306/C330
50543980
Polyst.
lOOOpF 50V 594
C307/C331
50554050 Elec.
IOmF
16V
C308/C332
50554050
Elec. iomf
16V
C309/C333
50554050 Elec. IOmF 16V
C310/C334
50554030
Elec.
47mF 6.3V
C311/C335
50554050
Elec. iomf 16V
C312/C336
51700130 Mylar 0.0056MF BOV 1%
C313/C337
51700140
Mylar
0.0027MF
BOV 1%
C314/C338
51700120
Mylar
0.0047MF 50 V 194
C315/C339
50554050
Elec.
iomf
16V
C316/C340
50548040
Mylar
o.imf
BOV 1094
C317/C341
50554010
Elec.
47mF 16V
C318/C342
50554050
Elec.
IOmF 16V
C319/C343
50548040
Mylar
o.imf
BOV 10%
C320/C344
50549280 Mylar
o.imf
BOV 5%
C321/C345
50546563
Dip. Tant.lOMF
16V
C322/C346
50548040
Mylar o.imf
BOV 10%
C323/C347
50548830
Metallzed O.SSjuP
Mylar
50V 10%
C324/C348
50554540
Elec. IMF
BOV
COILS
L301/L303
57244060
Choke, 65mH 5% (Fixed)'
L302/L304
57244050
Choke, 39mH (Adjustable)
41
