Teac A-2300SD - Page 50

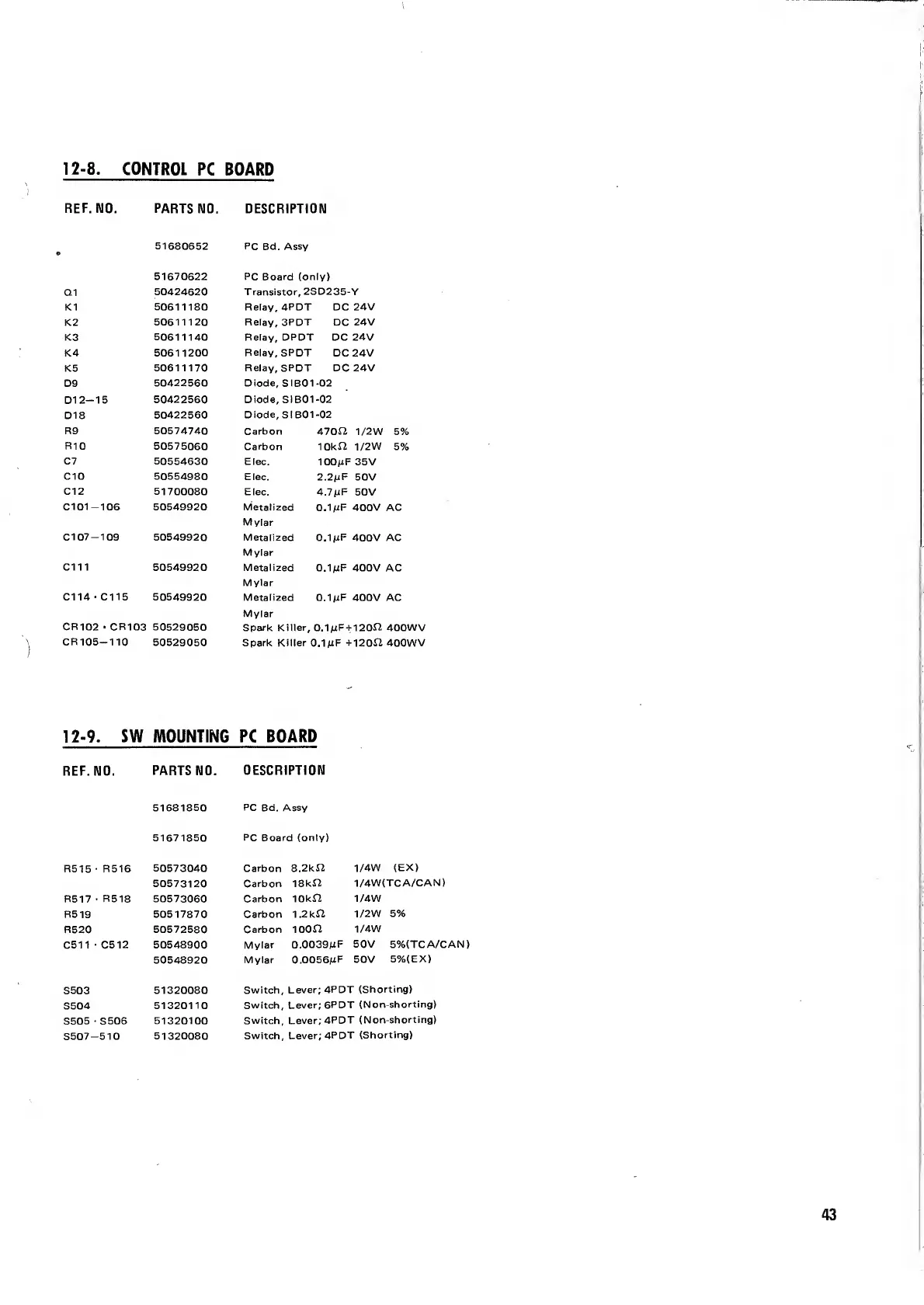

12-8. CONTROL PC BOARD
REF. NO. PARTS NO. DESCRIPTION
516S0652 PC Bd. Assy
51670622 PC Board (only)
Q1
50424620
Transistor, 2SD235-Y
K1 50611180 Relay, 4PDT DC 24V
K2 50611120
Relay, 3PDT DC 24V
K3
50611140 Relay, DPDT DC 24V
K4 50611200 Relay, SPOT DC 24V
K5 50611170 Relay, SPDT DC 24V
D9
50422560
Diode, SIB01*02
D12-15 50422560
Diode, S1B01-02
D18
50422560
Diode, SIB01-02
R9
50574740 Carbon 470^2 1/2W 5%
RIO
50575060 Carbon lOkfi 1/2W 5%
C7
50554630
Elec. 100MF35V
CIO
50554980
Elec. 2.2 mF 50V
C12
51700080
Elec. 4.7 mF 50V
C101-106 50549920
Metalized 0.1 jUF 400V AC
Mylar
Cl 07-109
50549920 Metalized 0.1 juF 400V AC
Mylar
cm
50549920
Metalized O.I^F 400V AC
Mylar
C114 ■ C115
50549920
Metalized O.ImF 400V AC
Mylar
CR102 ■ CR103
50529050 Spark Killer, 0.1/iF + 120f2 400WV
CR105-110
50529050 Spark Killer O.I/jF +120J2 400WV
12-9. SW MOUNTING
PC BOARD
REF. NO.
PARTS NO.
DESCRIPTION
51681850
PC Bd. Assy
51671850
PC Board (only)
R515 • R516
50573040 Carbon 8.2kn
1/4W (EX)
50573120
Carbon 18k^2
1/4W(TCA/CAN)
R517 • R518
50573060
Carbon 10k^2
1/4W
R519 50517870
Carbon 1.2kS7
1/2W 5%
R520 50572580
Carbon lOOfi
1/4W
C511 ■ C512
50548900
Mylar 0.0039 mF
50V 5%(TCA/CAN)
50548920
Mylar 0.0056/xF
50V 5%(EX)
S503
51320080
Switch, Lever; 4PDT (Shorting)
S504 51320110
Switch, Lever; 6PDT (Non-shorting)
S505 ■ S506 51320100
Switch, Lever; 4PDT (Non-shorting)
S507-510 51320080
Switch, Lever; 4PDT (Shorting)
